Ariens Sno-Thro 921001 - ST824E - Manual (Page 21)

21

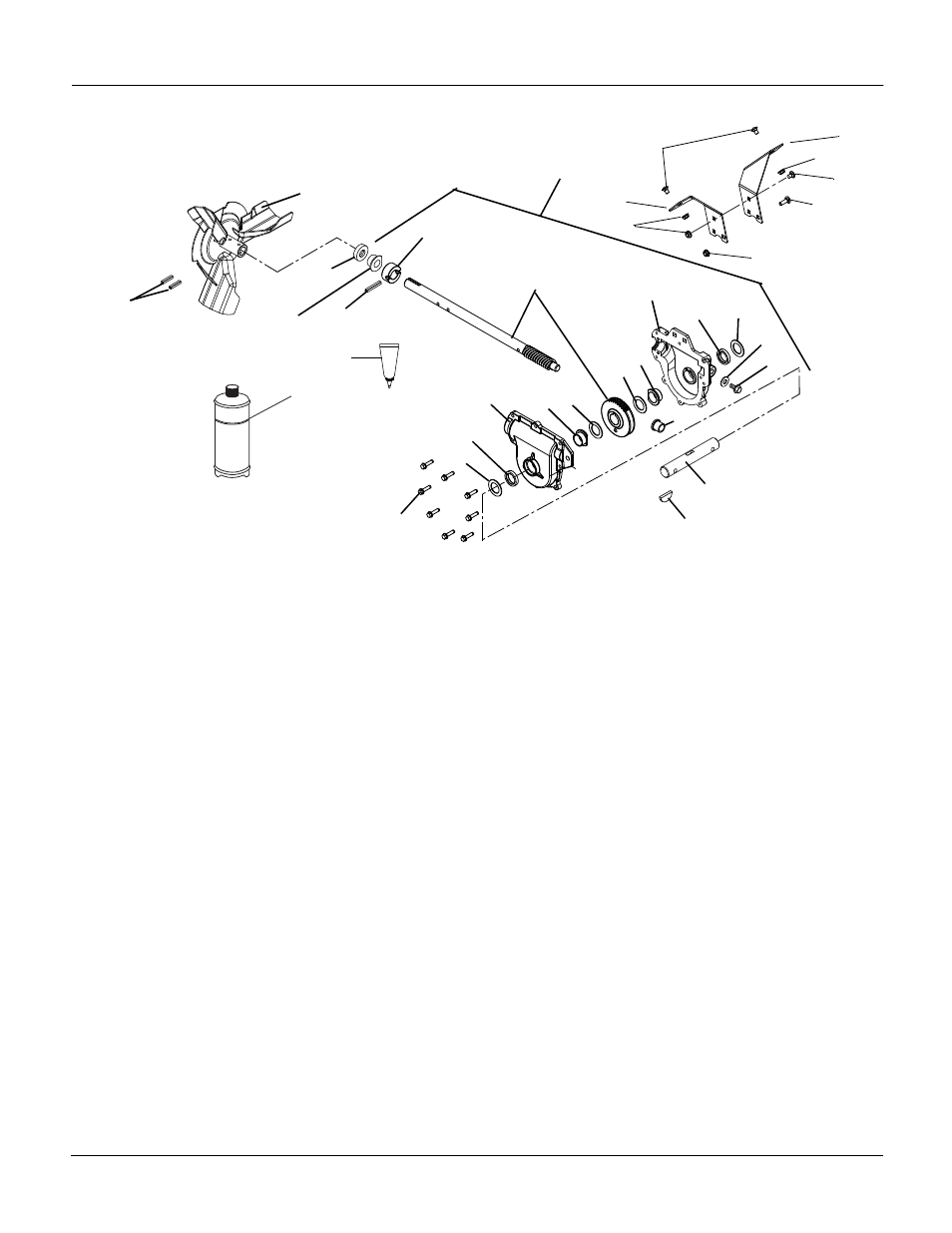

G
EAR
C
ASE
-A
LUMINUM
Model 921001, 002, 003, 004, 300, 301
Item Part No. Qty. Description
1 05803700 2 Pin, Roll .25 x 1.75
2 00485551 1 Impeller 14" O.D. 3-Blade
3 05600001 1 Seal, Oil
4 05500008 1 Bushing, Flange
5 00255100 1 Thrust Collar .875
6 05806800 1 Pin, Groove .25 x 1.50 Type E
7 52101000 AR Case, Gear Aluminum (Contains Items 3-6, 8-18, 20, 27)
8 07417000 1 Screw, Tapping .38-16 x .75 Rolok
9 05618800 2 Seal, Oil
10 00254100 1 Gearcase, Casting Left Hand
11 05520500 2 Bushing, Flanged
12 00031700 1 Locktite 518 Gasket--6ML Tube
13 00254000 1 Gearcase, Casting Right Hand
14 07412400 8 Screw, Tapping Hex Washer Head .25-20 x 1.00
15 06608800 1 Key, Woodruff .25 x .875 Hardened
16 06416600 2 Washer, Flat Steel Hardened Thrust 1.007 x 1.542 x .062
17 05500007 1 Bushing, Flange
18 00485400 1 Rake Shaft
19 00008000 1 Ariens 16 Oz. Bottle of L2 Lube (8.5 oz. capacity)
20 52100900 1 Worm Shaft and Gear
21 06436300 2 Washer, Flat Steel 1.010 x 1.505 x .062
22 00485051 1 Bracket, Gearcase Support LH
23 00485151 1 Bracket, Gearcase Support RH
24 06212200 3 Bolt, Round Head Square Short Neck .31-18 x .62
25 06543100 5 Nut, Locking Top Flange .31-18
26 06216100 2 Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
27 06442500 1 Washer, Fiber .437 x .656 x .032
PS0283
1
2
3
4
5
6
19
9
10
11 12
20
13
14 15
16
16
9
11
17
18
7
8
21
21
24
22
25
23
24
26
25
25
27
