HEELS AND
A
XLES
Model 926003, 004

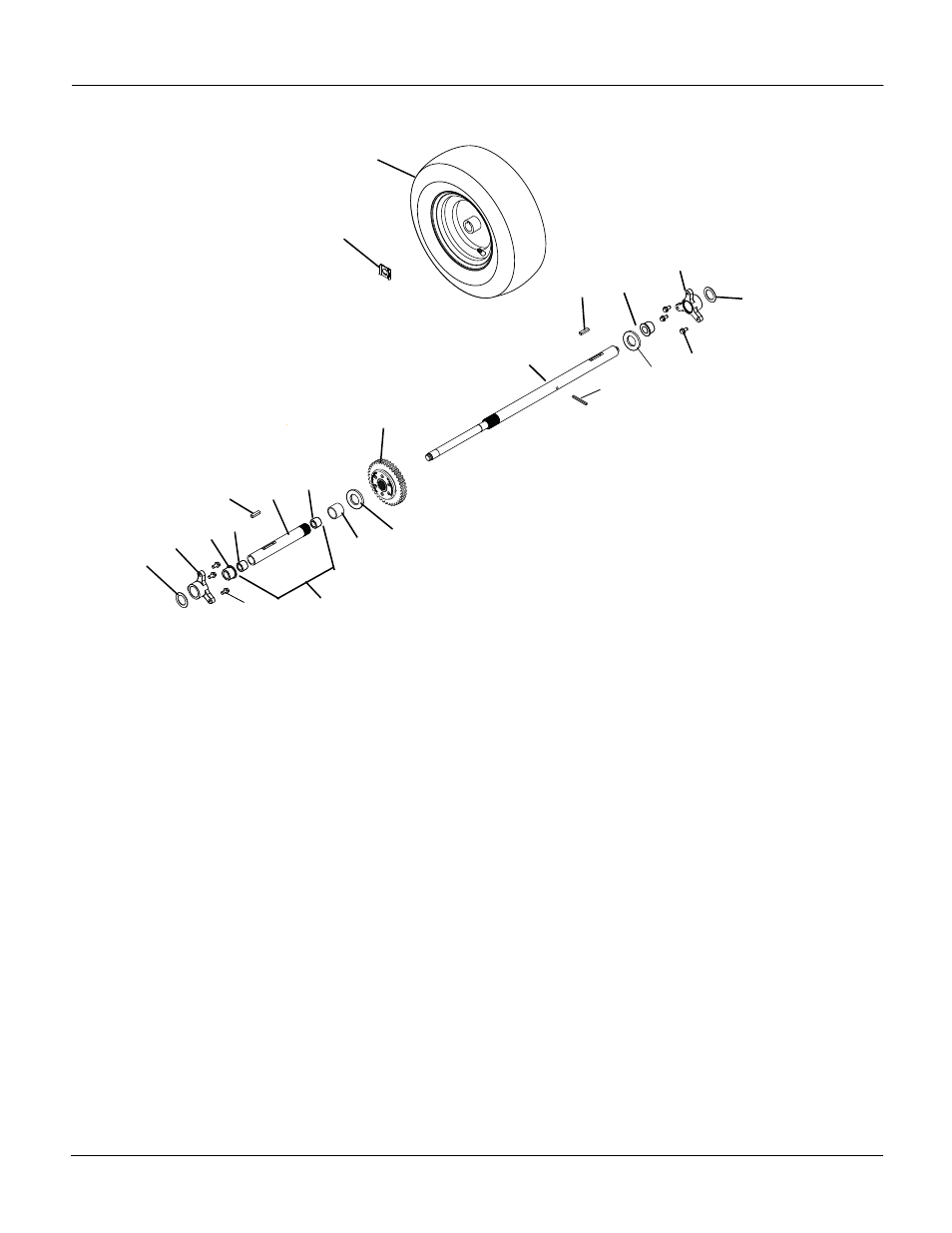

Item Part No. Qty. Description
1 07100227 1 Tire/Wheel Assembly RH 15 x 5.00 - 6 Remote
07100228 1 Tire/Wheel Assembly LH 15 x 5.00 - 6 Remote
07100726 AR Tire, 15 x 5.00 - 6
2 05700001 2 Clip, Snap
3 06436300 2 Washer, Flat Steel 1.010 x 1.505 x .062
4 00275100 2 Bushing, Rake Shaft 1"
5 07412000 6 Screw, Tapping Hex Washer Head .25-20 x .50
6 00866000 1 Differential, Hilliard
7 00865900 1 Axle, Short - Differential
8 00865800 1 Axle, Long - Differential
9 05500030 2 Bushing, Flange Split Nyliner 1.0" HP
10 06600002 2 Key Rectangular .25 x .188 x 1.00
11 05500023 2 Bushing, Sleeve Bronze
12 52101200 AR Axle, Differential with Bushings (Includes 7 and 11)
13 05500122 1 Bushing, Sleeve
14 06436300 2 Washer, Flat-Steel 1.010 x 1.505 x .062
15 05800300 1 Pin, Roll .188 x 1.25
