DOOR MOUNTING
BRACKET
TROLLEY
OUTER
HALF
BELT
GUARD
WALL
MOUNTING
BRACKET
RELEASE
ROPE
AND KNOB
OPENER
HARDWARE
PACKET
RUBBER BUMPER
SUPER STATION
DELUXE WALL
PUSH BUTTON
!
Child can be pinned under automatic garage
door. Death or serious injury can result. • Never let child walk or run under moving door. • Never let child use door opener controls. • Always keep moving door in sight. • If person is pinned, push control button or use emergency release. • Test door opener monthly: Refer to your owner’s manual Place one-inch object (or 2x4 laid flat) on floor. If door fails to reverse on contact, adjust opener. If opener still fails to reverse door, repair or replace opener.
WAR N I N G
PUSHBUTTON
“WARNING”
LABEL
PHOTOSYSTEM
HARDWARE
SAFE FINISH
PHOTOSYSTEM
WARNING
SPRINGS, PULLEYS, CABLES AND MOUNTING HARDWARE
USED TO BALANCE YOUR GARAGE DOOR ARE UNDER
EXTREME TENSION AT ALL TIMES AND CAN CAUSE SEVERE
INJURY OR DEATH IF DISTURBED.
DO NOT ATTEMPT ADJUSTMENT.
IMPORTANT - IDENTIFY YOUR DOOR TYPE FROM THOSE ILLUSTRATED BELOW
SECTIONAL DOOR
CURVED TRACK ONE PIECE DOOR
HORIZONTAL TRACK
JAMB HARDWARE
HIGH ARC OF
DOOR TRAVEL
TRACK
TRACK
DOOR
DOOR
FOR THESE TYPES OF DOORS USE
MODEL MVP-SB SuperBelt -
USE 7 FT OR 8 FT RAIL
(MATCH DOOR HEIGHT)
104367
ONE PIECE DOOR
NO TRACK
JAMB HARDWARE ONE PIECE DOOR
NO TRACK
PIVOT HARDWARE
HIGH ARC OF
DOOR TRAVEL
DOOR
JAMB
HARD-
WARE
HIGH ARC OF
DOOR TRAVEL
PIVOT
MVP-SB SuperBelt CANNOT BE USED
FOR THESE TYPES OF DOORS
104368
DOOR ARM
TUBE ASSEMBLY DOOR ARM ROD
RADIO
TRANSMITTER
CONTROL WIRE
SPOOL

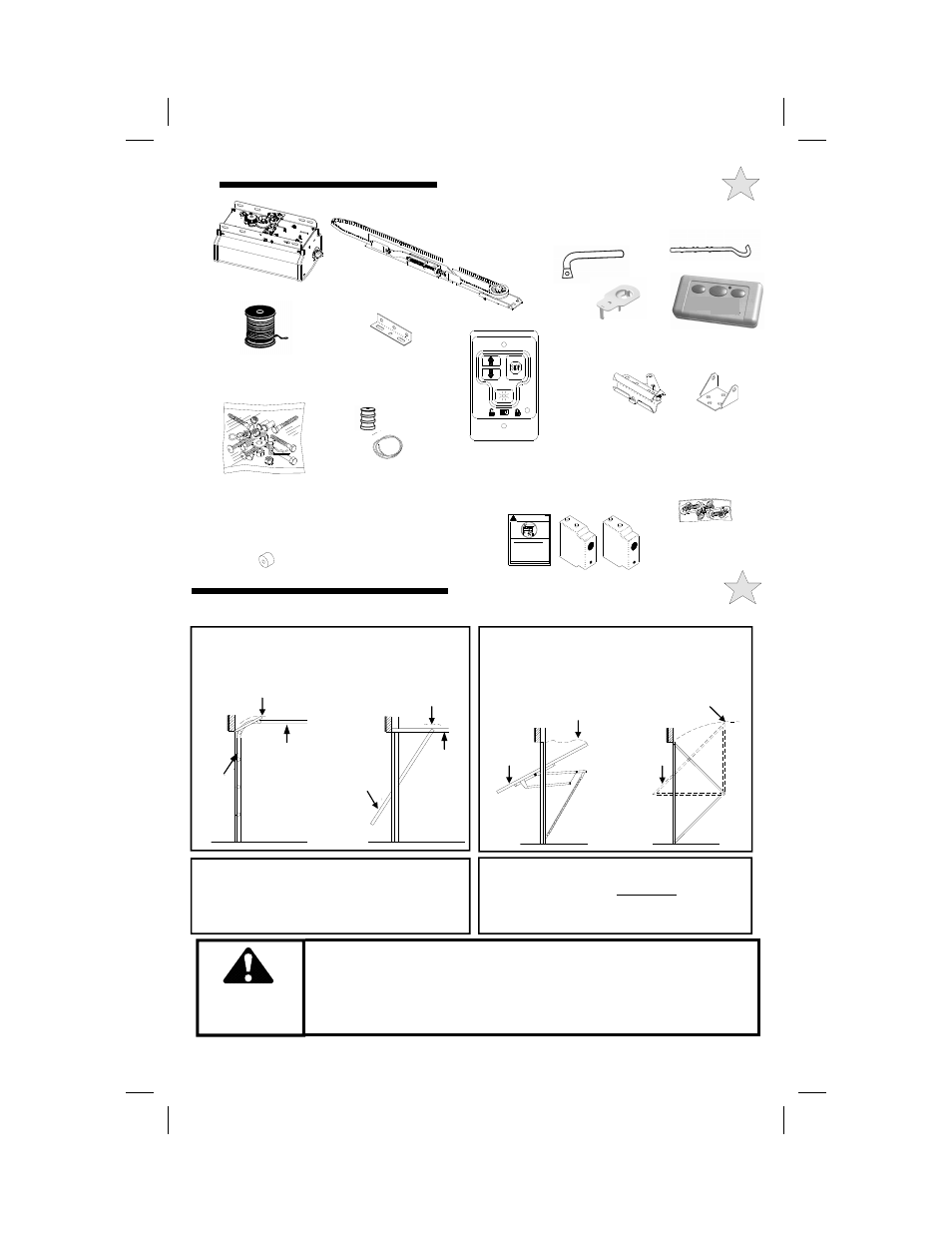

COMPONENT IDENTIFICATION
DOOR TYPE IDENTIFICATION
RAIL/BELT
ASSEMBLY
HIGH ARC OF
DOOR TRAVEL
DOOR
3
OPENER POWER UNIT
