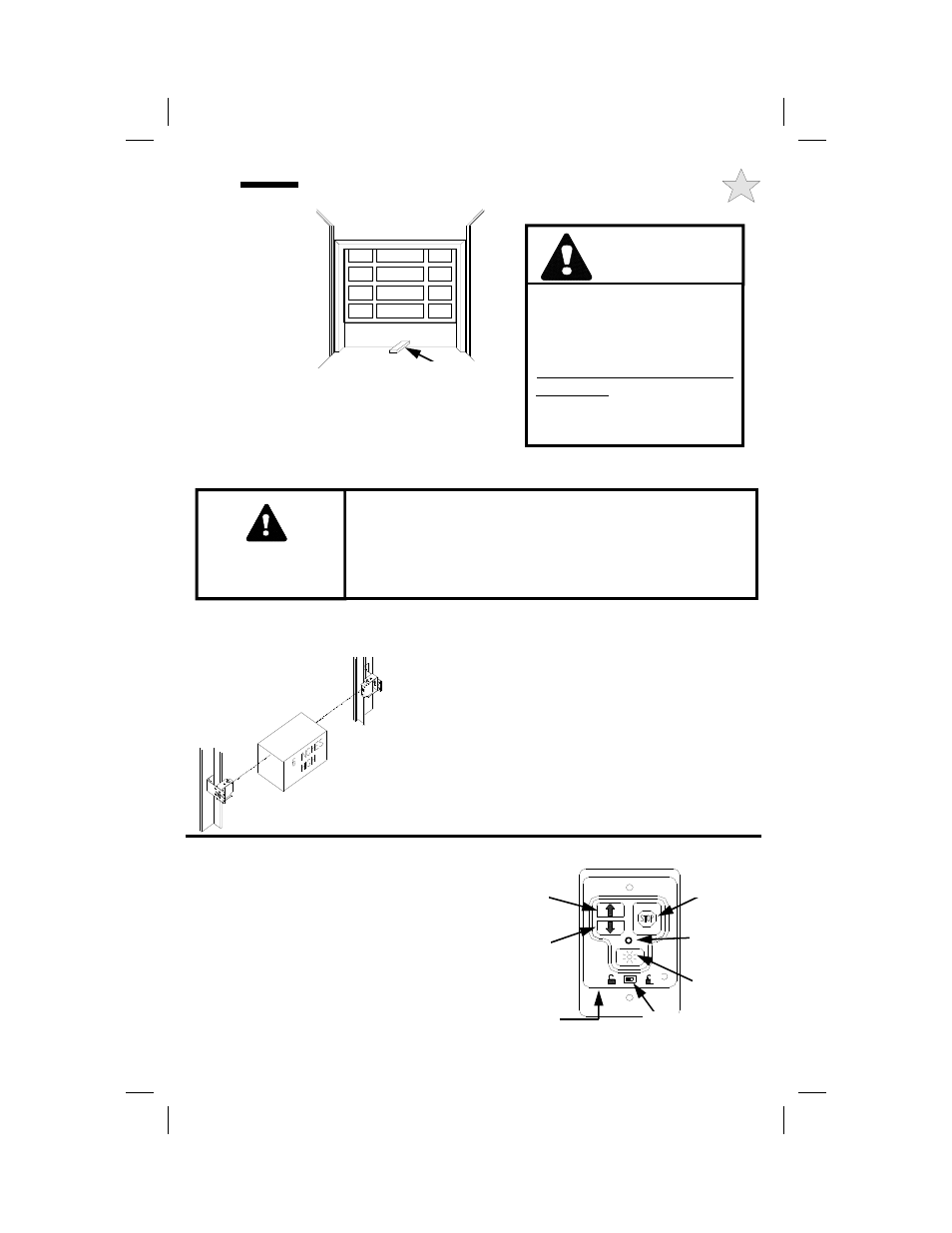

adjustments are
correct, the door will
reverse within two
seconds of contacting
the object and travel to
the Full Open
position. If this does
not occur, recheck the
Limit Adjustments
(Step 1, previous) and
Sensitivity
Adjustments (see
Steps 2 & 3,
previous).
NOTE: Any time adjustments are made to Limits
or Sensitivity, YOU MUST RETEST THE
OPENER FOR THE REVERSING FEATURE AT
FLOOR LEVEL AS OUTLINED ABOVE.
W A R N I N G
FAILURE TO TEST
REVERSING SYSTEM
COULD RESULT IN DEATH
OR SERIOUS INJURY.
TEST THIS SYSTEM ONCE
A MONTH BY FOLLOWING
PROCEDURES OUTLINED
IN STEP 4
104392
W A R N I N G
A DAMAGED OR MALFUNCTIONING PHOTOELECTRIC
ACCESSORY SYSTEM COULD ENABLE A GARAGE DOOR
TO CLOSE ON PEOPLE OR PROPERTY, CAUSING
SERIOUS INJURY OR DEATH.
PERFORM THIS TEST MONTHLY TO INSURE YOUR SAFE
FINISH™ PHOTOSYSTEM IS WORKING PROPERLY.
STEP 6: Operating the Super Station (Deluxe
Wall Pushbutton Station) Controls — The Super
Station replaces standard a doorbell-type push button
to allow you to integrate fully with all the
convenience and security features built into your
MVP Series garage door operator.
1. Open Pushbutton — Green-backlighting, arrow
pointing up. Used to start the door upward. This
button will also stop and reverse a door that is
closing. The button has no effect on a door that is
opening. The function of this pushbutton is
automatically disabled when the Security slide
switch is set to the “ON” position and the door is
fully closed.
STEP 5: Testing the Safe Finish™ Photosystem —
Start the door in the close travel direction and then
place an
obstacle
approximately
6" high by 12"
wide in the
path of the
beam. The
Red Pilot
Light on the
Safe Finish™
Photosystem
should go out.
The door
should stop and reverse to the full open position.
With the door fully open and at rest, place the obstacle
in the path of the beam once again. Activate the
Standard Wall Push Button. The opener should revert
to and remain in the PUSH AND HOLD mode of
operation for close travel. A radio control will not start
the door downward with the beam blocked.
IF THE GARAGE DOOR TRAVELS MORE THAN
ONE INCH IN A DOWNWARD PATH AFTER
RELEASING THE BUTTON (WITH THE
PHOTOBEAM BLOCKED), THE SAFE FINISH™
SYSTEM IS MALFUNCTIONING. CHECK THE
ELECTRICAL CONNECTIONS AND ALIGNMENT
OF THE PHOTOCELL MODULES.
104393
1 1/2” BLOCK OF
WOOD LAID FLAT
(2”X4”)
OPERATION AND ADJUSTMENT INSTRUCTIONS
104394
Security
Switch
Learn
Enable
Button
STOP
Button
OPEN
Button
CLOSE
Button
Security
Disable
Switch
Light
Button
