System diagram, Usb memory device association to handhelds – Badger Meter ReadCenter User Manual
Page 3

January 2009
Badger
®
READCENTER
®
Installation
Data

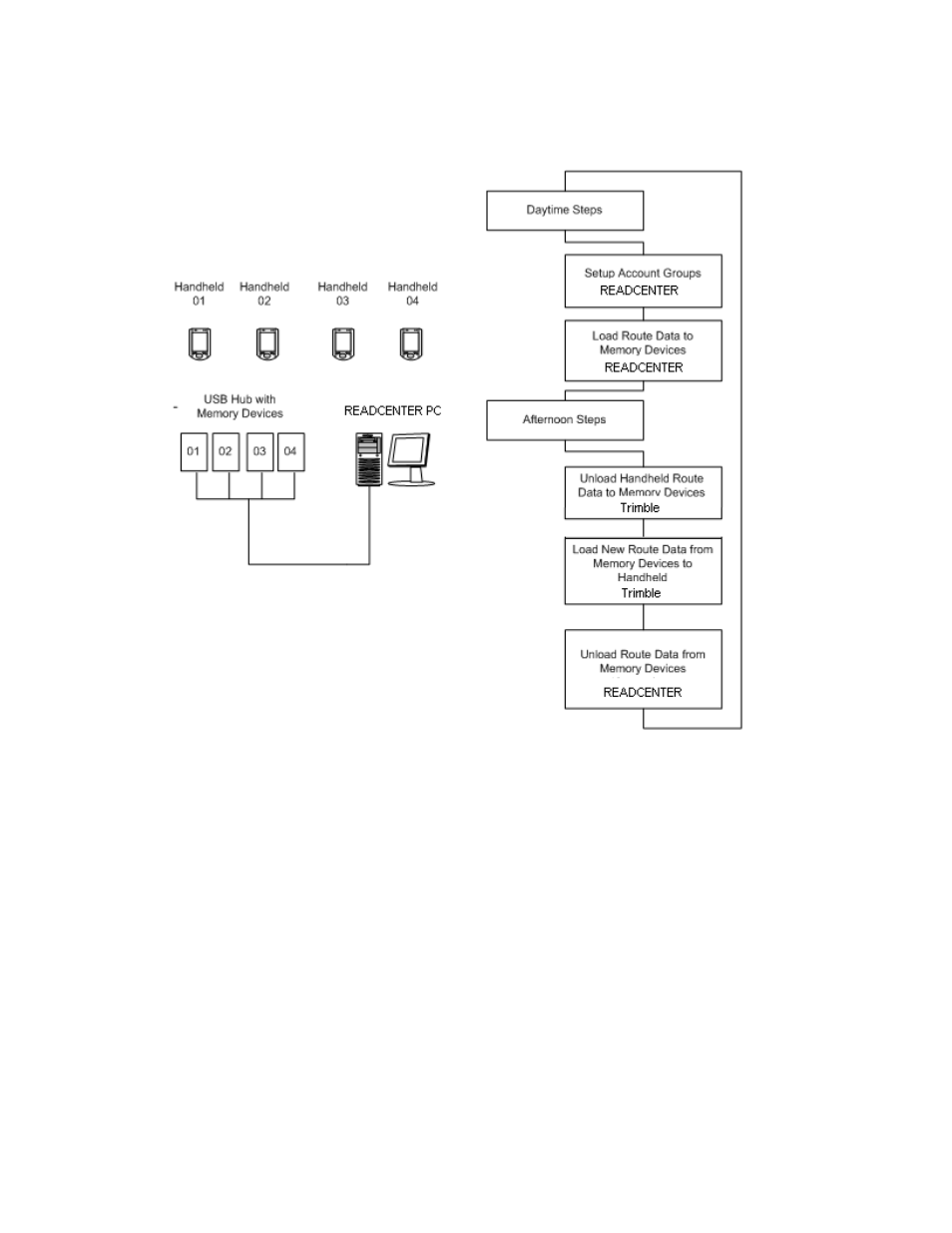

System Diagram
USB Memory Device Association to Handhelds
• Start with a blank memory device.
o
Note: To clear any previous association, delete the CONNECT folder on the device.
• Insert a different memory device in each handheld.
o
A message comes up on the handheld asking if you want to initialize the memory device.
Answer Yes.
o
Tap the Friendly Name button.
o
Type in the name to use. This can be a handheld number, meter reader name, or any
other text you will use to identify the specific Handheld.
o
After entering the Friendly Name, tap the Export ID to Flash Disk button.
o
The “Export Finished” message will come up.
o
Label the memory device with the Friendly Name selected.
• Repeat these steps for each handheld.
Badger Meter, Inc.
- CONFIDENTIAL AND PROPRIETARY -
2
