Installation Manual

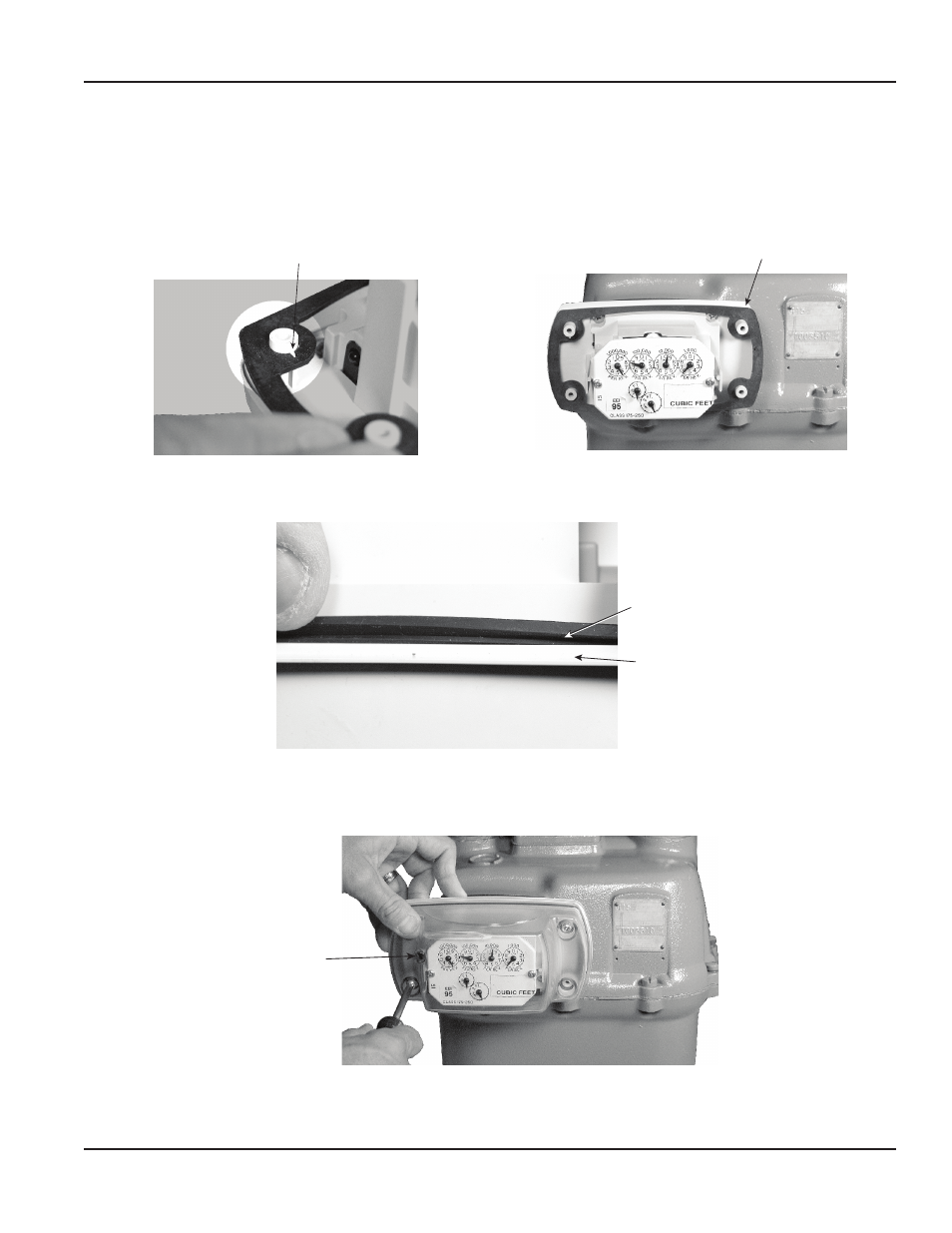

PLACE THE LENS GASKET AND LENS ON THE ENDPOINT
1 Place the lens (outer cover) gasket on the endpoint
a Place the gasket so that its notched hole goes around the upper left screw hole
b Place the other gasket holes over the screw holes See
Figure 14
Notched hole around upper
left screw
Lens gasket on endpoint
Figure 14: Lens gasket placement
2 Be certain that the gasket stepped edge seats in the endpoint See Figure 15
Endpoint
Gasket stepped edge
Figure 15: Gasket stepped edge in endpoint
3 Place the lens on the gas meter Place the endpoint IR port in the upper left hand corner
4 Tighten the lens with the four (4) screws (8 X ½") Tighten the screws to about 6 inch-pounds See
Figure 16
Endpoint IR port
Figure 16: Endpoint IR port location
