System Panel
To open the system panel, press the
SYSTEM button found in the master
section or use Command
(⌘) + 4.
The full system panel contains two
sections:
• Setup Strip
• Routing Matrix

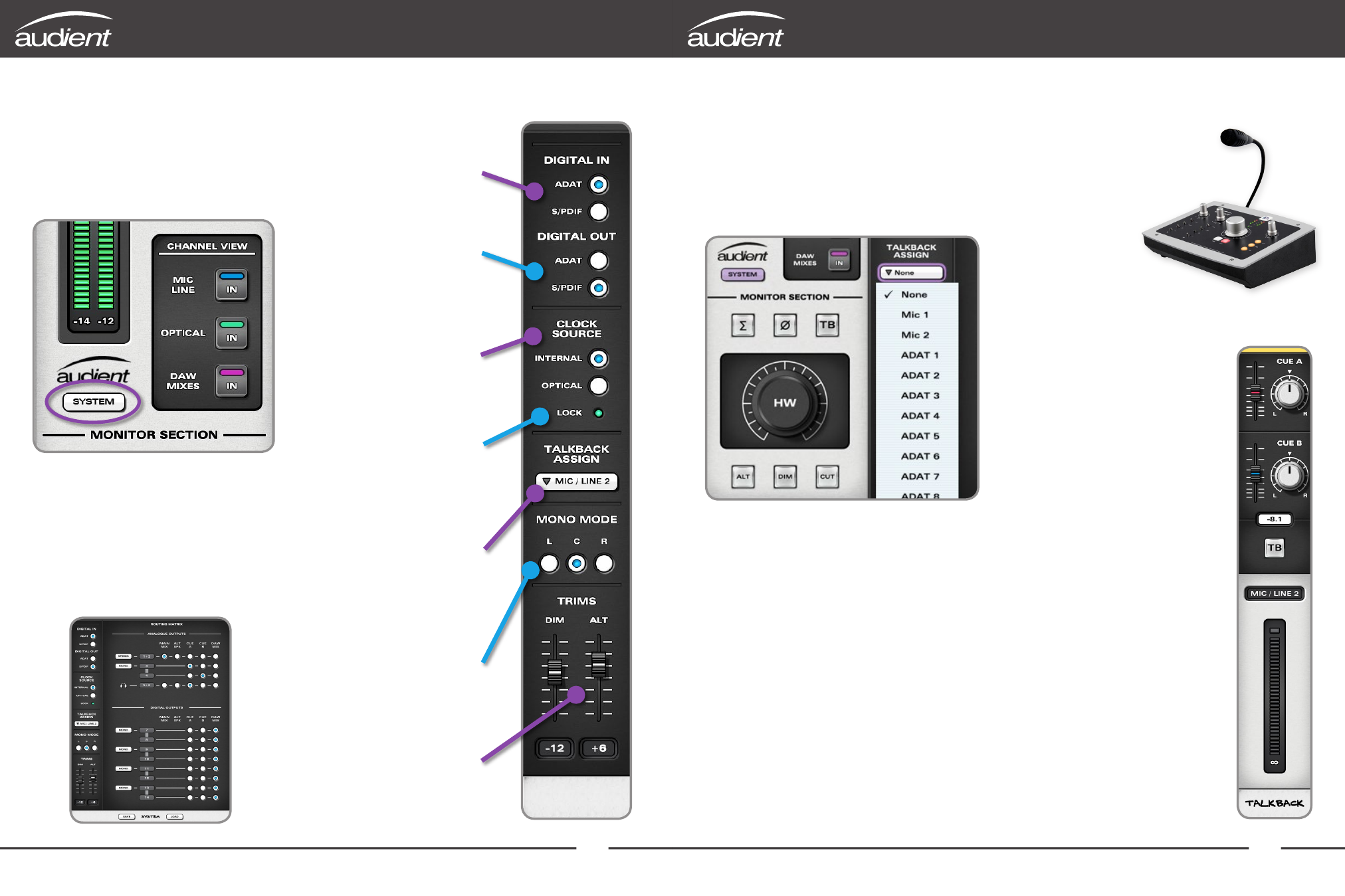

Setup Strip
Software Features
Digital Input Format
Select 8-ch ADAT or 2-ch
S/PDIF input modes for
the optical input here.
ADAT 8-ch 44.1 - 48kHz,
4-ch 88.2kHz - 96kHz.
S/PDIF 2-ch all rates
Digital Output Format
Select 8-ch ADAT or 2-ch
S/PDIF input modes for
the optical output here.
ADAT 8-ch 44.1 - 48kHz,
4-ch 88.2kHz - 96kHz.
S/PDIF 2-ch all rates
Clock Source
Select internal or optical input
as the clock source. Ensure
all sample rates match your
DAW session and settings in
Audio MIDI Setup on OSX
Lock LED
Indicates a valid external clock
source. Red indicator means
you have a clocking issue and
should check source device
Talkback Assign
Select any available iD22
input (analogue or digital) to
be the source for talkback
as routed to cues. Mixer
channel becomes talkback
with no feedback possibility
Mono Mode
Set whether sum-to-mono
creates a mono sum in one
loudspeaker (one acoustic
source) or creates a ‘phantom
centre’ sum (two acoustic
sources) - they sound different
DIM & ALT Trims
Set DIM level:
0 to -30 dB
Set ALT loudspeaker level:
+/-15 dB
Assigning Talkback
When a channel is assigned as talkback
source in the iD mixer application system
panel, the equivalent mixer channel strip
updates to become a talkback channel.
Channels will be presented in the talkback
assign menu as per their labelling in the
mixer scribble (console tape) strip. As such
they are easy to identify.
No talkback microphone has been included
within iD22 as these small electret
contact microphone often pickup lots of
switch press and handling noise. For many
who record vocalists, one input for the
artist will be enough so we suggest using
a talkback microphone in Input 2, however
any of the digital inputs could also be used.
Gooseneck Microphone Use
If recording a vocalist or
drummer (with ASP008
expansion) one microphone
channel on the
iD22 provides
the perfect place
to use a gooseneck
talkback microphone to facilitate
desktop communication & monitor control.
Talkback Channel Strip
When an assigned channel
converts to talkback operation,
cue A & B send level and pan
remain, allowing you to route
talkback signal to artists via
the cue mixes. A channel info
box shows adjusted parameter
values and a routing box shows
which active channel is set as
talkback.
A secondary talkback button
is located on the talkback
channel which can be used
to trigger talkback whilst
setting up the software mixer.
You can assign the talkback
switch to an ‘F’ key in the
master section.
Software Features
