Item
No.
Part
No.
Description
Std.
Pkg.
1
14874
Valve Assembly-Female Thread
1
2
05240
Collar O-Rring
24
Collar O-Ring
– Bulk Bag
100
3*
14785
Hose & Horn Assembly-594 (.213)
1
14791
Hose & Horn Assembly-595 (.204)
1
14788
Hose & Horn Assembly-
580,581,582 (.250)
1
14790
Hose & Horn Assembly-592 (.166)
1
14794
Hose & Horn Assembly-599 (.149)
1
14787
Hose & Horn Assembly-564 (.166)
1
14786
Hose & Horn Assembly-566 (.157)
1
14789
Hose & Horn Assembly-
567, 568, 569, 584 (.312)
1
14947
Hose & Horn Assembly-589 (.213)
1
14948
Hose & Horn Assembly-591 (.180)
1
3A
14778
Strap & Clip Assembly (Black
Plastic) ½" Hose 6 Kg & 20 lb.
1
14871
Strap & Clip Assembly (Black
Plastic) ½" Hose 30 lb.
1
4
06978
Hose Gasket (O-Ring)
24
5
00160
Ring Pin
– Stainless Steel
24
6
00532
Chain (Nylon) for Ring Pin
24
7
01387
Lockwire Seal (Yellow)
500
8
09584
Hanger Loop w/Screw
6
9
09840
Lever & Rivet
– All Models
1
9A
01563
Rivet Only for Lever
24
10
09020
Handle & Rivet
– All Models
1
10A
01564
Rivets Only for Handle
24
11
05225
Gauge
– 240 psi
6
12
09102
Gauge Guard
– Chrome Plated
Brass
1
13
06093
Valve Stem Assembly
6
Valve Stem Assembly
– Bulk Bag
96
14
05243
Valve Stem O-Ring
24
15
00383
Spring
6
16
01700
Dtube/Retainer Asy
– 6 Kg
1
01667
Dtube/Retainer Asy
– 20lb.
09583
Dtube/Retainer Asy
– 30 lb.
17
12383
Prot Foot Ring for Bottom of Cyl - 7"
1
12952
Prot Foot Ring for Bottom of Cyl - 8"
ALL BRACKETS
– SEE BRACKET PAGE
ALL FILL & HYDROTEST ADAPTERS
– SEE ADAPTER PAGE
REPLACEMENT VALVE ASSEMBLIES INCLUDE VALVE
BODY, GAUGE, LEVER VLV STEM ASY, SPRING &
HANDLE

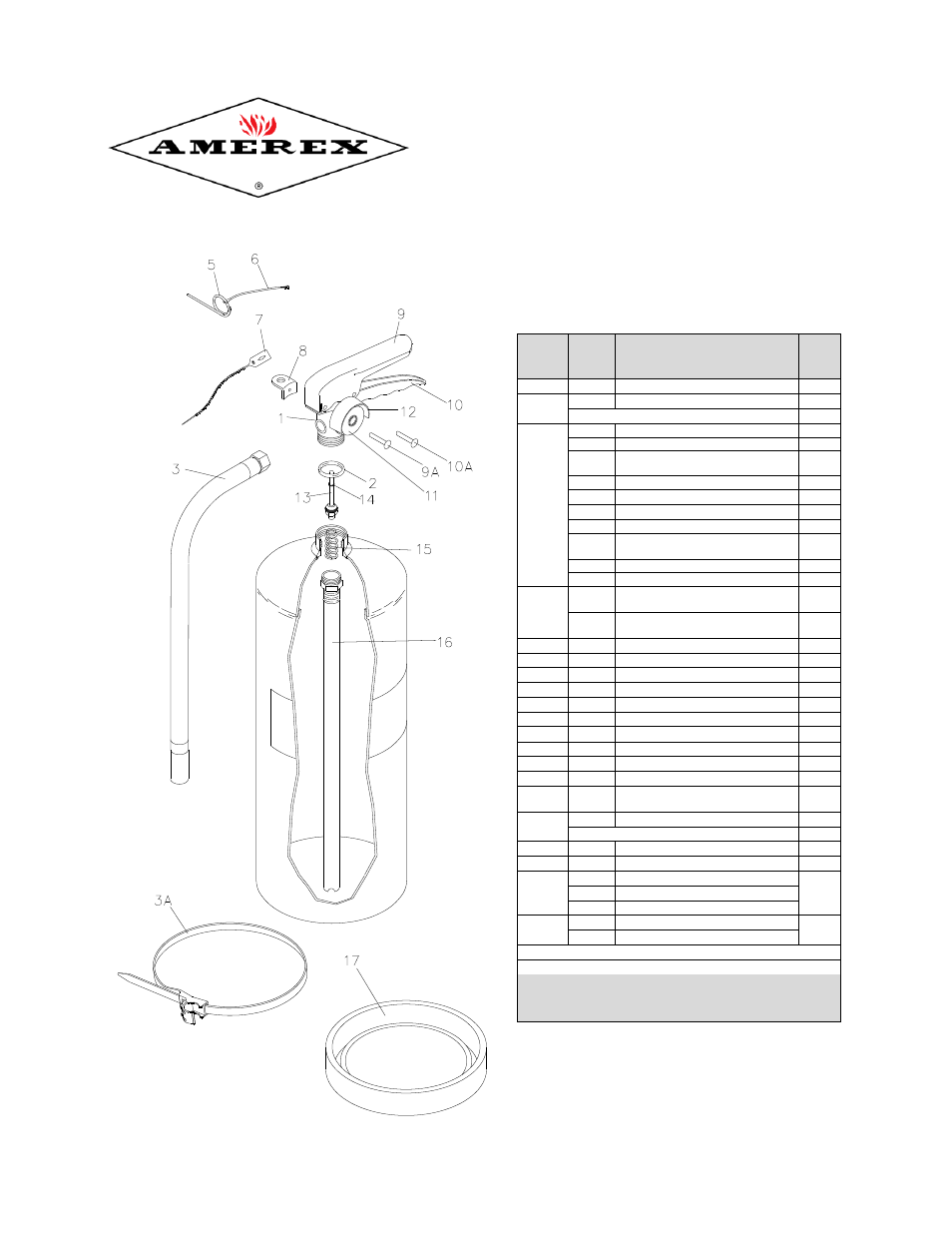

PARTS LIST
for
6 Kg
– 30 lb. Dry Chemical
High Performance Models
594
567
589
595
568
591
580
569
592
581
599
582
564
584
566
