Amerex 05605 User Manual
Page 13
12

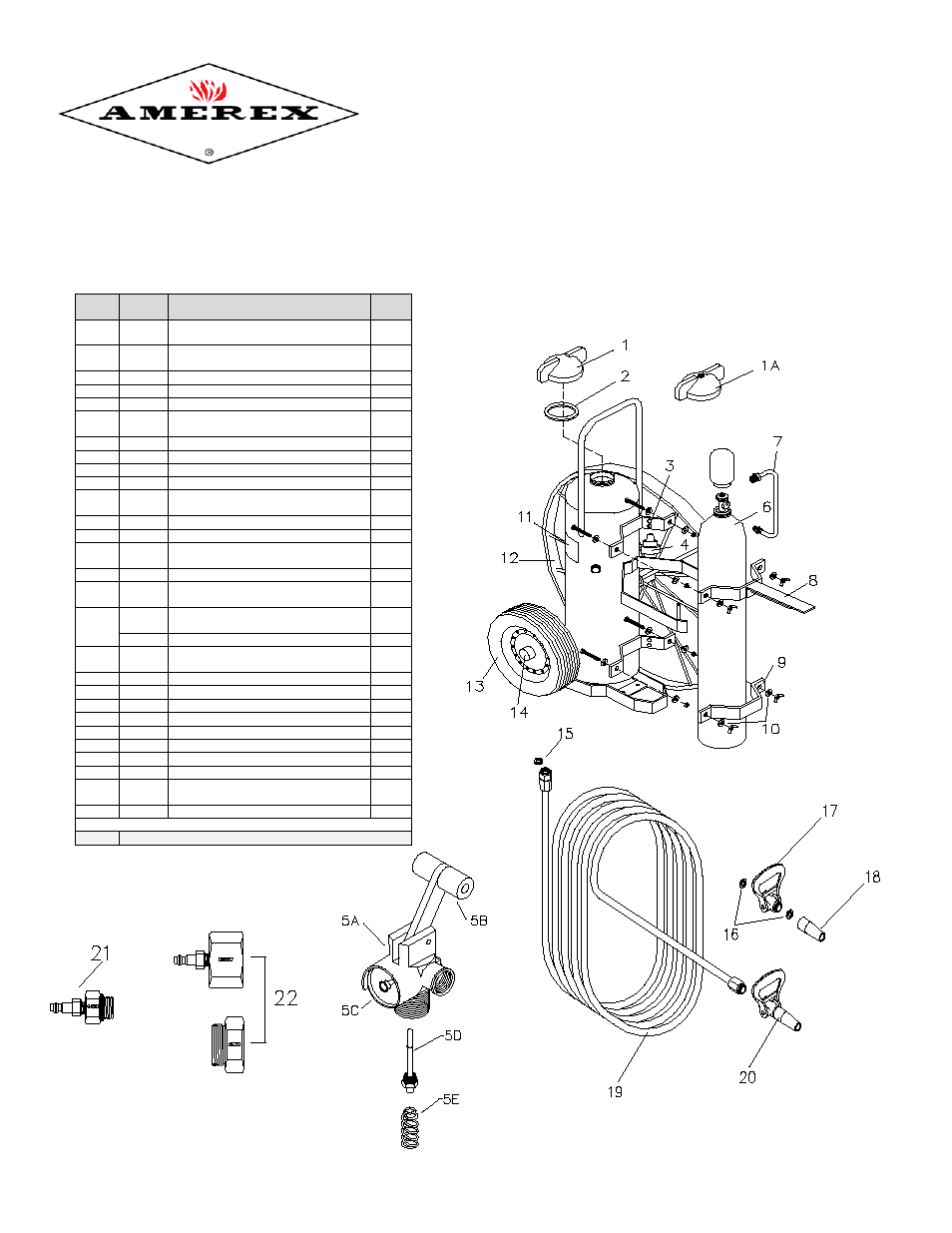

PARTS LIST
for
125/150 lb. Wheeled & Stationary
Dry Chemical Extinguishers
110 Cu. Ft. Nitrogen Cylinder
WHEELED MODELS
467
125 LB. ABC, 16” WHEELS
470
125 LB. ABC, 36” WHEELS
468
150 LB. REGULAR, 16” WHEELS
471
150 LB. REGULAR, 36” WHEELS
468
125 LB. PURPLE K, 16” WHEELS
472
125 LB. PURPLE K, 36” WHEELS
STATIONARY MODELS
485
125 LB. ABC
486
150 LB. REGULAR
487
125 LB. PURPLE K
Item
No.
Part
No.
Description
Std.
Pkg.
1
06993
Cap (Chrome Plated Brass), Agent
Cylinder
1
1A
12576
Cap (Chrome Plated Brass), Agent
Cylinder w/Pressure Indicator
1
2
02272
Gasket, Cap
1
3
13958
Bumper,Rrubber
12
4
02235
Nitrogen Pressure Regulator
1
5A
12467
Nitrogen Valve with Gauge
(“T” Handle Quick Release)
1
5B
06373
Valve Lever (“T” Handle-Complete)
1
5C
10213
Gauge – 3000 psi
1
5D
09897
Valve Stem Assembly
6
5E
00501
Spring
6
6
04128
Nitrogen Cylinder (110 cu.ft.)-
Charged with Cap, Valve & Gauge
1
7
02234
Nitrogen Hose Assembly
1
8
11024
Retaining Strap w/Hose Hanger
1
9
11021
Retaining Strap (Bottom) – Nitrogen
Cylinder
1
10
16483
Bolt, Washer & Wing Nut
1
11
07485
07484
Pictogram-467,470, 485
Pictogram-468,469,471,472,486,487
1
12
07025
Wheel Asy – 36” x 2 ½” w/rubber
tread
1
07389
Hub Cap w/hardware – 36” Wheels
1
13
07751
Wheel Asy – 16” with Hub Cap,
Washer & Retaining Pin (Semi-Pneu)
1
14
04945
Hub Cap – 16” Wheels
1
15
07411
Moisture Seal
1
16
03877
Gasket, Hose/Nozzle
6
17
06279
Ball Valve Assembly
1
18
06032
Nozzle Tip (.265)
1
19
03501
Hose Assembly, 50’
1
20
07574
Nozzle Assembly (Ball Valve & Tip)
1
21
04892
Hydrotest Adapter (Nitrogen Cylinder)
1
22
09857
05723
Fill Adapter
Hydrotest Adapter (Hose)
1
1
*
06247
Visilox Lubricant (5 oz. tube)
1
*
PART NOT PICTURED
