Amerex 05607 User Manual
Page 6
5
ITEM
NO.
PART
NO.
DESCRIPTION
STD
PKG
1
14345
Valve Assembly
1
2
06978
Hose Gasket (O-ring)
24
3
13162
Hose & Spray Nozzle Asy
– 254
1
3A
07000
06982
Hose & Aspirated Noz. Asy
– 250
Hose & Aspirated Noz. Asy
– 252
1
4
01007
Wall Bracket
6
5
00160
Ring Pin, Stainless Steel
24
5A
00532
Chain (Nylon) for ring Pin
24
6
01387
Lock Wire Seal (Yellow)
500
7
07762
Lever & Rivet
1
7A
01563
Rivet Only for Handle (2 required)
24
8
09020
Handle & Rivets
1
8A
01564
Rivet Only for Handle (2 required)
24
9
06479
Valve Stem Asy
6
10
05240
Collar O-Ring
24
11
06093
Valve Stem Assembly
Valve Stem Assembly (bulk bag)
6
96
12
05243
Valve Stem O-Ring
24
13
00383
Spring
6
14
02595
Fill tube
1
15
05690
Downtube O-Ring
12
16
02581
02209
Downtube/Retainer Asy
– 254
Downtube/Retainer Asy
– 250, 252
1
17
03376
03109
Footstand w/Post (Black)
– 250, 252
Footstand (Black)
– 254
1
18
02141
Pressurizing Adapter
1
19
03181
Hydrotest Adapter
1
20
14776
Strap & Clip
– 254
1
02117
Model 502 AFFF Premix Charge
–
250, 254
12
06981
Model 504 FFFP Premix Charge
–
252
12
04488
Adhesive (Footstand) 3 oz. tube
1
06247
Visilox Lubricant 5 oz. tube
1
NOTE:
All Valve Assemblies include new Valve Body,
Pressure Gauge, Wing Nut Lever & Handle
PARTS NOT PICTURED

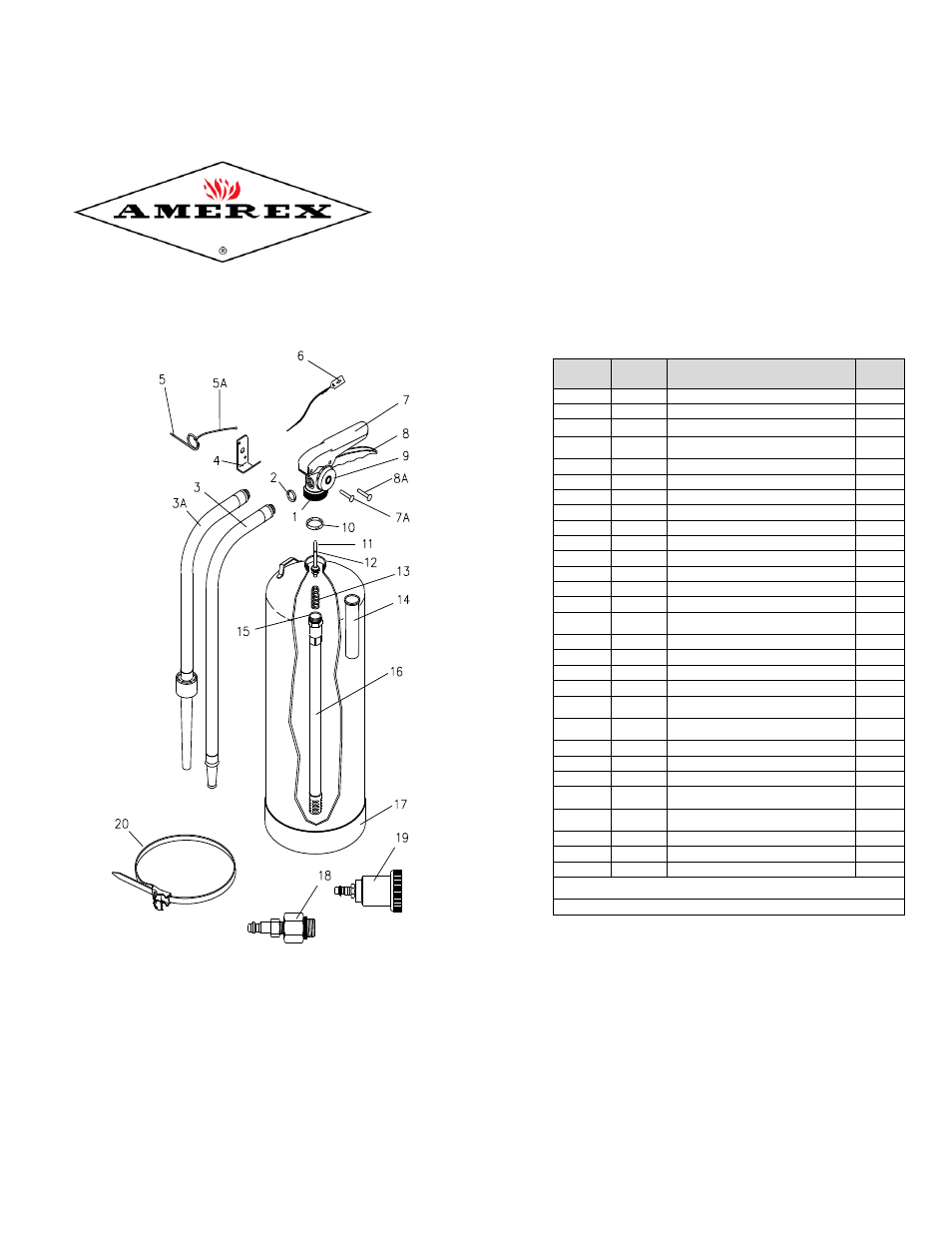

PARTS LIST
For
Model 254
– 6 Liter AFFF Foam Extinguisher
Model 250
– 2½ Gallon AFFF Foam Extinguisher
Model 252
– 2½ Gallon FFFP Foam Extinguisher
