Installation Data
REFRIGERATION SYSTEM

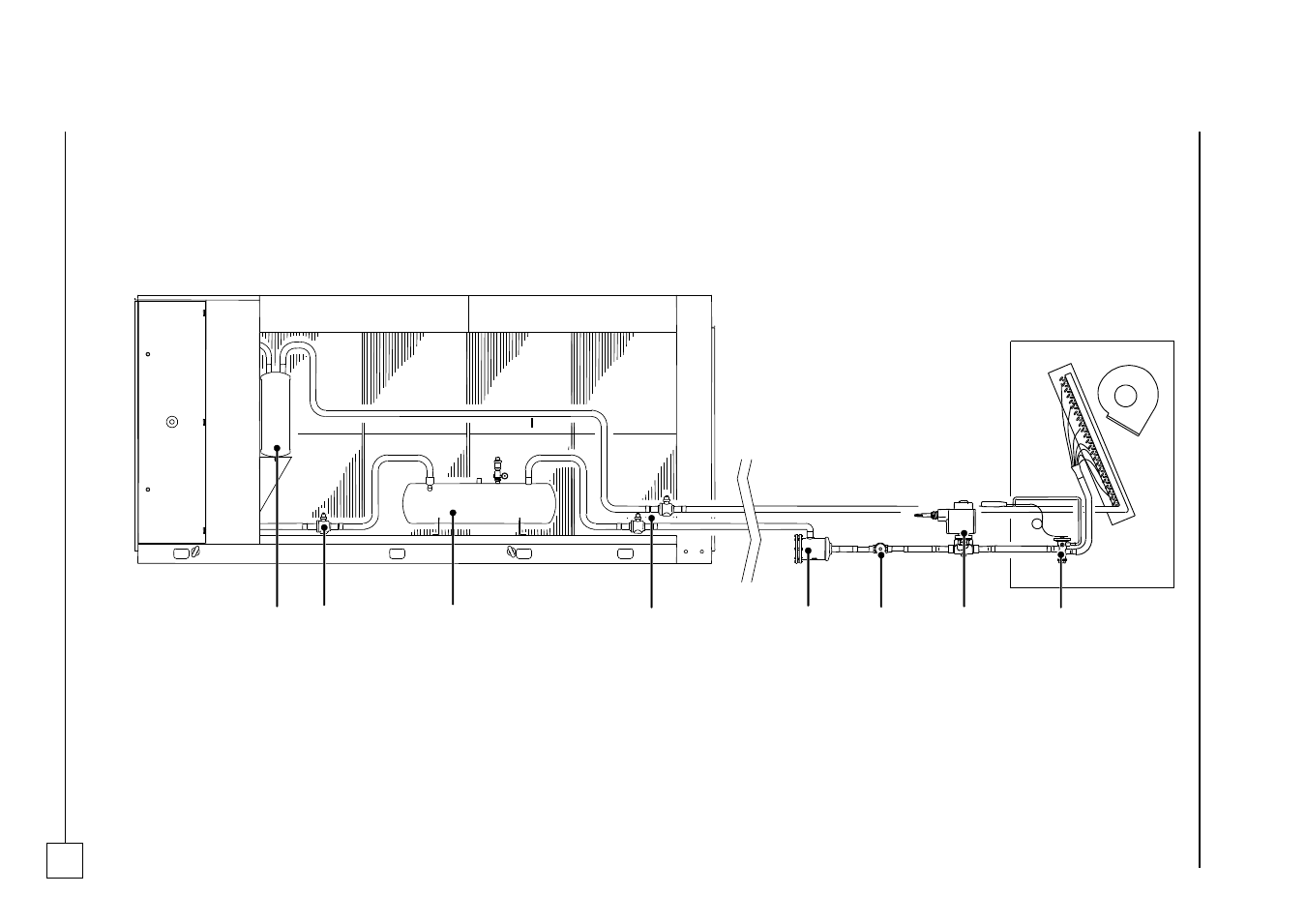

Standard Recommended Installation
OUTDOOR UNIT - ULTIMA COMPACT CONDENSING UNIT
INDOOR UNIT - BY OTHERS
1
2
3
4
5
6
7
8
1
SUCTION ACCUMULATOR
(Optional - Factory Fitted)
2
RECEIVER PUMP DOWN
BALL VALVE
(Optional - Factory Fitted)
3
LIQUID RECEIVER & PRESSURE RELIEF ASSEMBLY
(Optional - Factory Fitted)
4
SUCTION & LIQUID LINE
BALL VALVES
(Standard - Factory Fitted)
5
FILTER DRIER
(Optional - Supplied Loose)
6
SIGHT GLASS
(Optional - Supplied Loose)
7
SOLENOID VALVE
(Supplied By Others)
8
EXPANSION VALVE
(Supplied By Others)
OUTDOOR UNIT - ULTIMA COMPACT CONDENSING UNIT
INDOOR UNIT - BY OTHERS
1
Suction accumulator (optional - factory fitted)
2
Receiver pump down ball valve (optional - factory fitted)
3
Liquid receiver & pressure relief assembly (optional - factory fitted)
4
Suction & liquid line ball valves (standard - factory fitted)
5
Filter drier (optional - supplied loose)
6
Sight glass (optional - supplied loose)
7
Solenoid valve (supplied by others)
8
Expansion valve (supplied by others)
