DIP Switch Settings
The 4-position DIP Switch on the front panel is used to set the mode of
operation for the AC1 (remote operation) pushbutton (FIG. 3).
The settings are shown below:
AC1 Momentary (Default)
AC1 Latching
Discrete ON/OFF

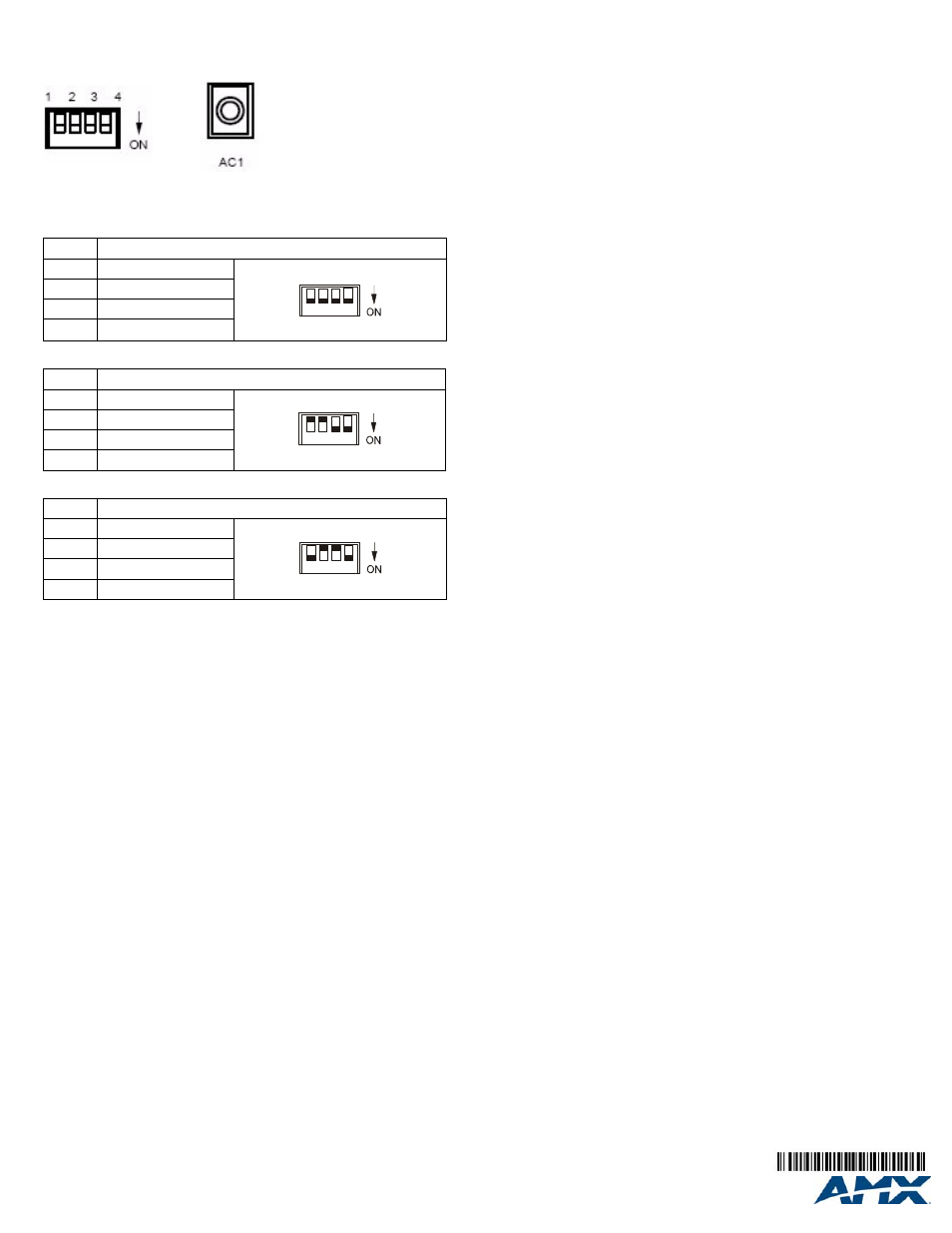

FIG. 3 DIP Switch and AC1 Remote Operation Pushbutton
Switch Setting (Down = On)
1 ON
2 ON
3 ON
4 ON
Switch Setting (Down = On)
1 OFF
2 OFF
3 ON
4 ON
Switch Setting (Down = On)
1 ON
2 OFF
3 OFF
4 ON
1 2 3 4
1 2 3 4
1 2 3 4
