LOGICOOL
™
Chillers
34
Chillers
Technical Manual : 6521355 V1.8.0 07/2014
Installation Data
STANDARD RECOMMENDED INSTALLATION
(Parts Supplied by Others)
General Airedale offers a wide range of optional extras to suit various applications including
integral pump, please refer to
Optional Extras - General , on page 9 for details.
CAUTION Should non Airedale parts be used, the following installation recommendations
should be adhered to. Failure to do this will invalidate the chiller warranty.

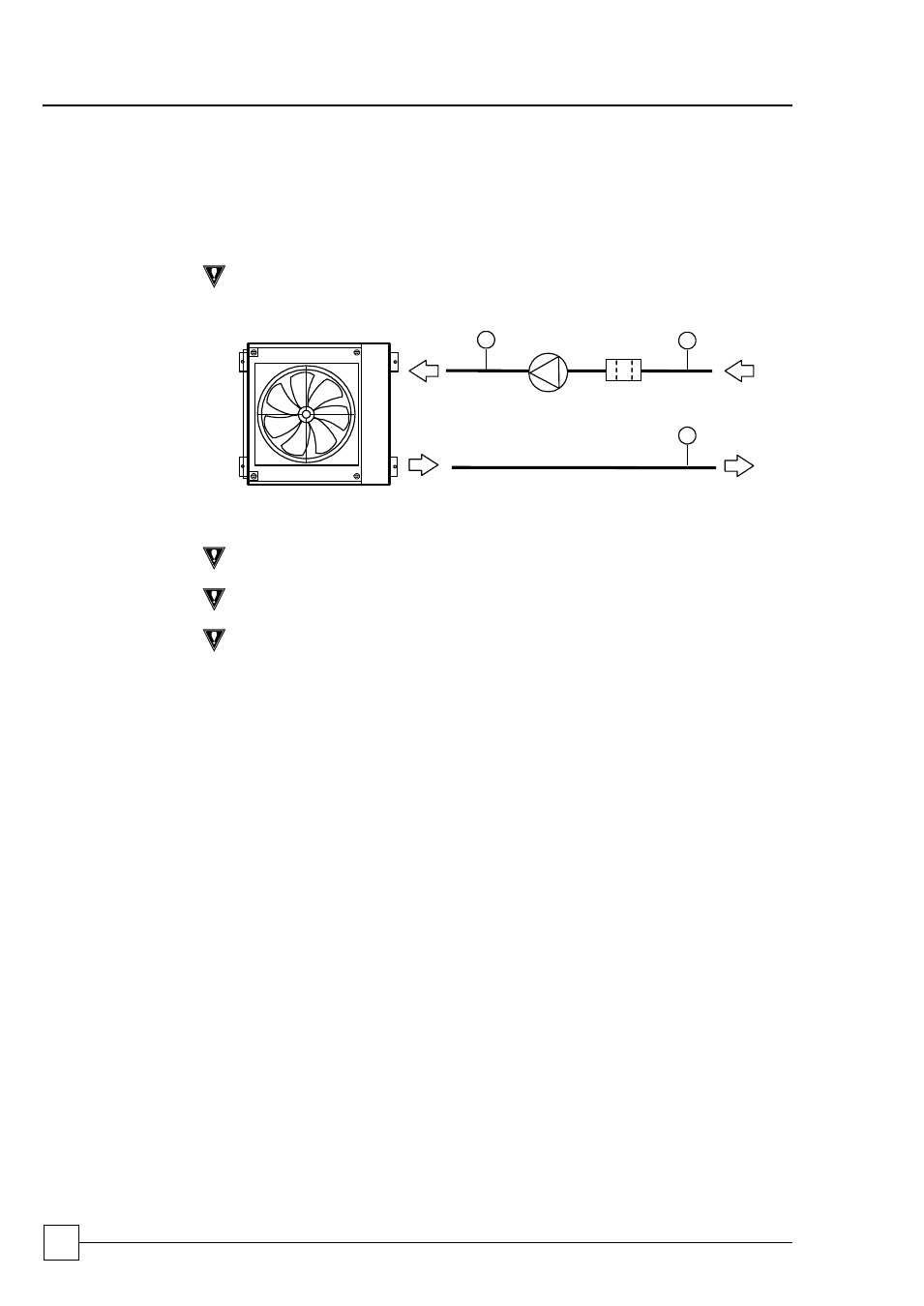

(3) (2)
(1)
P
P
P
(1) Pressure Sensors
(2) Filter 1 1/16 BSP
(3) Pump
CAUTION Full design water flow MUST be maintained at all times. Variable water volume is
NOT recommended and will invalidate warranty
CAUTION The correct operation of the flow proving device is critical if the chiller warranty is
to be valid.
CAUTION Following components are fitted within the chiller unit as standard:

Temperature Sensors

Drain Point

Auto Air Vent

Differential Pressure Monitoring of Evaporator

Pressure Sensing Points

20 Mesh Inlet Filter
Component
Recommended
Requirements The recommended requirements to allow commissioning to be carried out correctly are:

The inclusion of Binder Points adjacent to the flow and return connections, to allow
temperature and pressure readings

A flow switch or equivalent, fitted adjacent to the water outlet side of the unit Chiller

A water-flow commissioning valve set fitted to the system

In multiple chiller installations, 1 commissioning valve set is required per chiller

Isolating valves should be installed adjacent to all major items of equipment for ease
of maintenance

Balancing valves can be installed if required to aid correct system balancing

All chilled water pipework must be insulated and vapour sealed to
avoid condensation

If several units are installed in parallel adjacent to each other, reverse return should
be applied to avoid unnecessary balancing valves
