Dimensional data, Dimensions, Weights – Airedale LogiCool FreeCool 40kW User Manual
Page 31: Chillers logicool
Chillers
LOGICOOL
™
Chillers
31
Technical Manual : 6521355 V1.8.0 07/2014

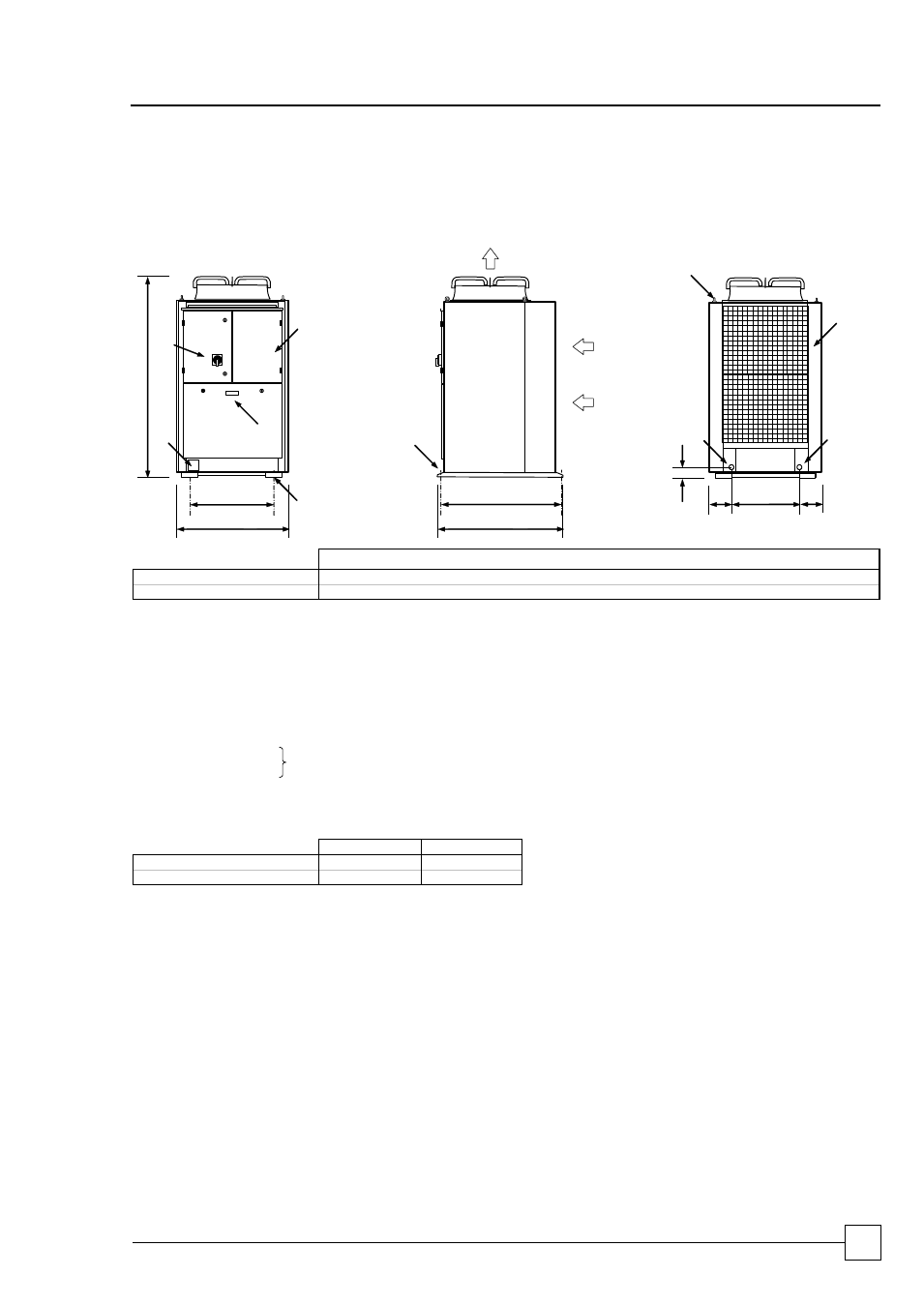

Dimensional Data
DIMENSIONS
FRONT
SIDE
REAR
200
(3)
1000
(2)
200
(3)
A
(1)
B
C
D
E
F
G
F
(2)
(3)
(4)
(6)
(6)
(1)
(9)
(10)
(7)
(8)
J
(2)
H
(5)
A
B
C
D (8)
E (8)
F
G
H
LCC20
mm
2063
1160
1286
867
1246
223
713
94
LCC40
mm
2227
1280
1406
987
1367
363
554
40
Unit diagrams can be supplied on request, please contact Airedale.
(1)
Airflow direction.
(2)
Electric control panel.
(3)
Mains cable entry.
(4)
Compressor compartment.
(5)
Mains electric isolator.
(6)
1/2 BSP Ø mounting holes.
(7)
Lifting eye bolts x 4.
(8)
Refrigeration component access panels.
(9)
Water Outlet
BSP Female Connection:
LCC20
1 1/4”
LCC40
1 1/2”
(10) Water Inlet
(Note:- the pipework connections on the
unit allow for a 1 ½” BSP Male fitting to be screwed into the assembly).
WEIGHTS
Machine
Operating
LCC20
kg
530
540
LCC40
kg
620
635
(1)
Based on standard unit, for units fitted options, please contact Airedale.
