INSTRUCTIONS FOR THE INSTALLATION OF THE
TE/1SSA AND TE/4SSA SERIES LIGHTNING ARRESTER
This arrester should be installed in accordance with all applicable
local and national electrical codes by qualified personnel only.
Read all instructions carefully before installation.
A. Mount Arrester:
The TE/1SSA and TE/4SSA Series arresters are designed to be installed utilizing the threaded nipple
supplied as an integral part of the arrester.
1. Turn off power.
2. Locate a knockout as close as possible to the electrical connection point of the arrester.
3. Remove the knockout and disregard.
4. Insert the arrester into the hole and secure with the supplied lock nut. Tighten the lock nut.
B. For maximum protection:
1. Cut the leads to the shortest length possible, avoiding any sharp bends in the wire.
2. Insure that clean, tight, permanent connections are utilized.
C. Connect the arrester leads to the system as indicated in the below listed wiring diagram. Connect the white
lead (Ground/Neutral) first, then connect the black leads (Line).
D. Turn on power.
INSTALL THE ARRESTER AS CLOSE AS POSSIBLE TO THE DESIGNED PROTECTED EQUIPMENT
FOR MAXIMUM EFFECTIVENESS.

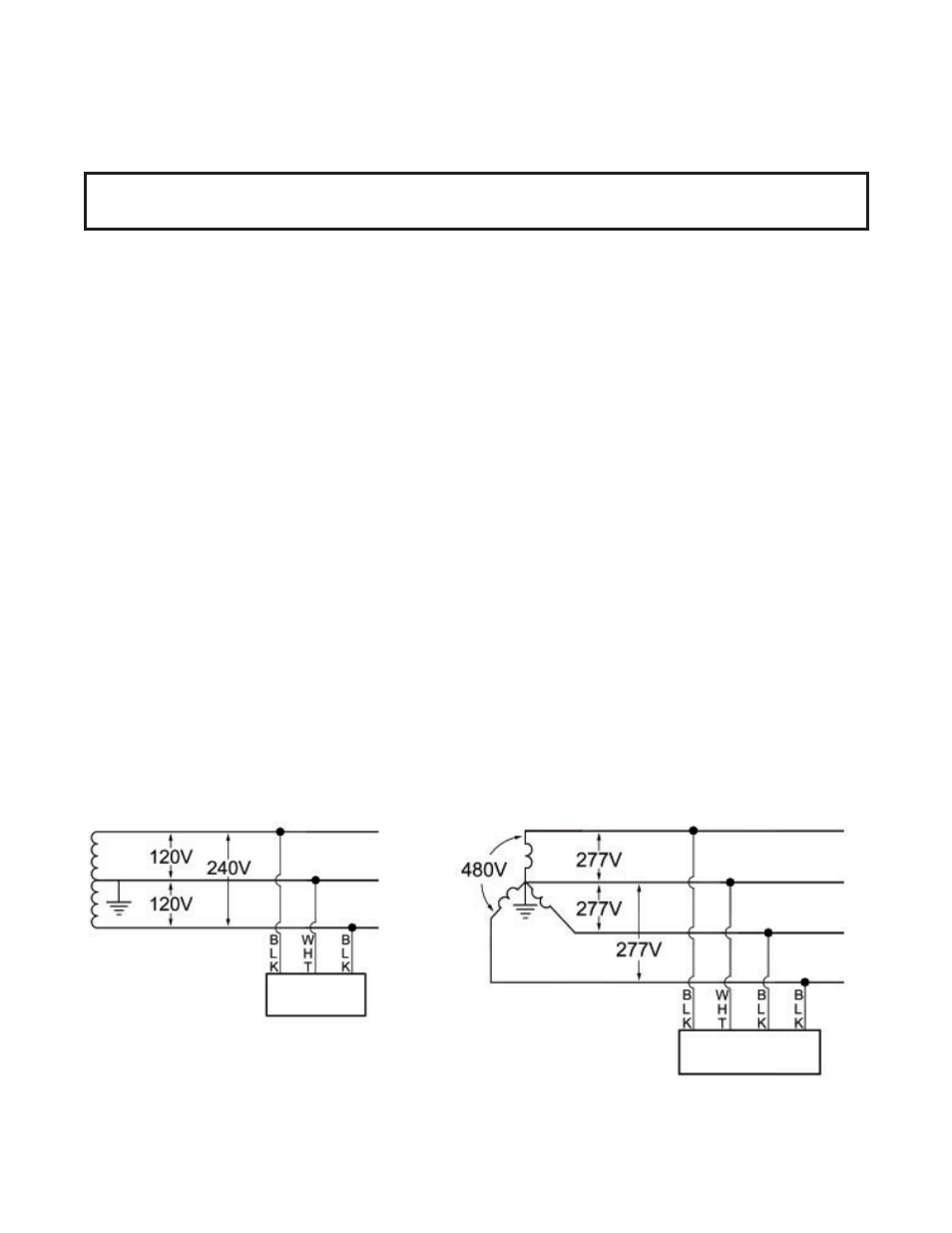

ELECTRICAL SCHEMATICS
TE/1SSA
TE/4SSA
APT0310040-A
