2 CONTROL SETUP (Yellow LED ON)
To enter Control Setup mode, press the Up and Down keys simultaneously for more than
three seconds. The same key action exits this mode. The parameters are as follows:
June 1997 Page 4 OM076
1/32-DIN Temperature Controller
Operator's Manual

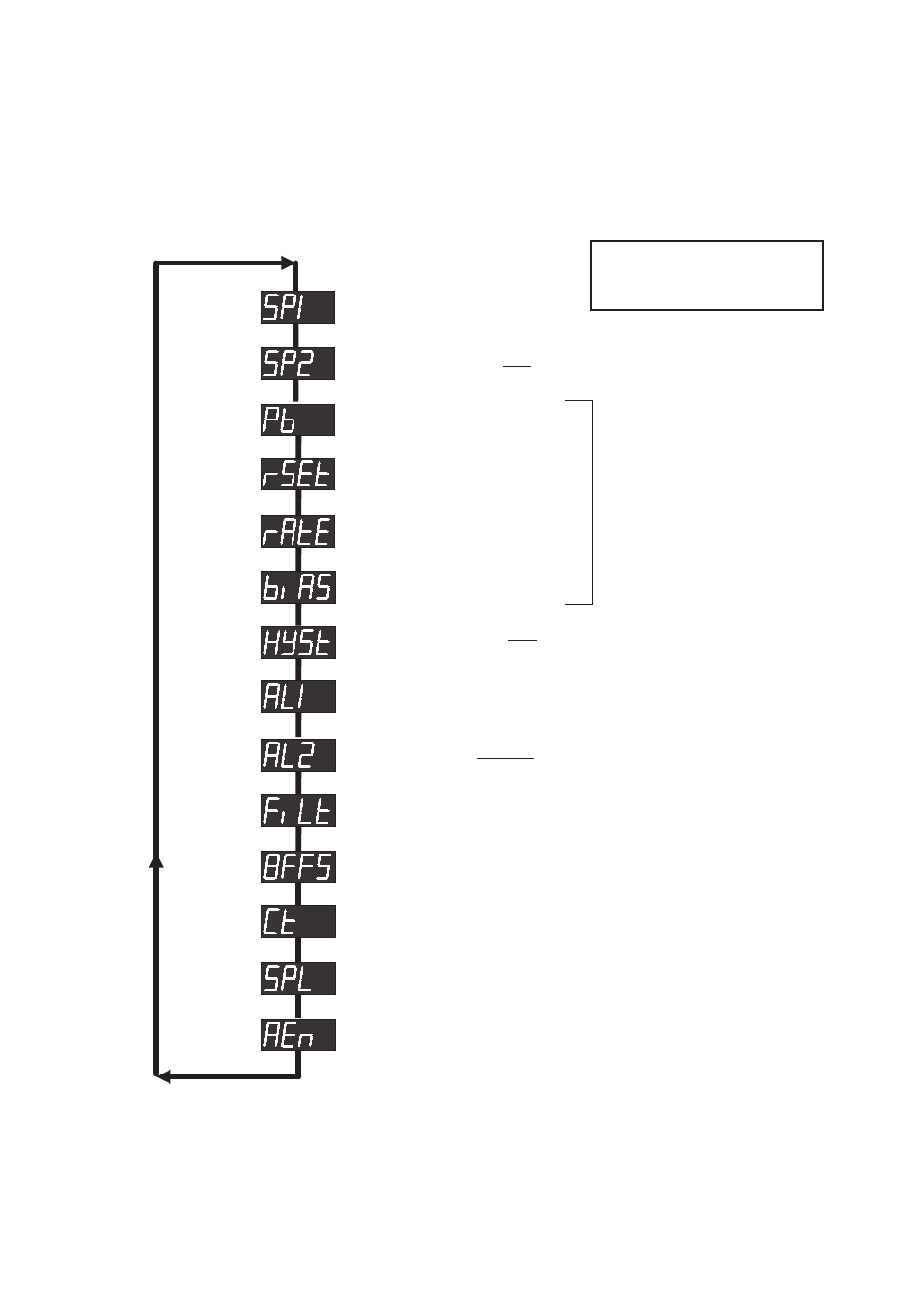

Scroll key steps through
displays; Up/Down keys adjust
displayed values.
Setpoint (1) value
Setpoint 2 value
Proportional
Band value
Reset (Integral) value
Rate (Derivative)
Appears only if Dual Setpoint
operation is configured.
Bias (Manual Reset)
Appear only if Manual
Tuning and PID Control
are configured.
ON/OFF
Hysteresis value Appears only if ON/OFF
Control is configured.
Alarm 1 value
Appears only if two alarms are
configured. Alarm 2 value
Input Filter Time Constant value
Input Offset value
Output Cycle Time value
Setpoint Lock
Disable/enable access to Alarm Value in
Normal Operation mode
