1077 Technical Manual P a g e | 11

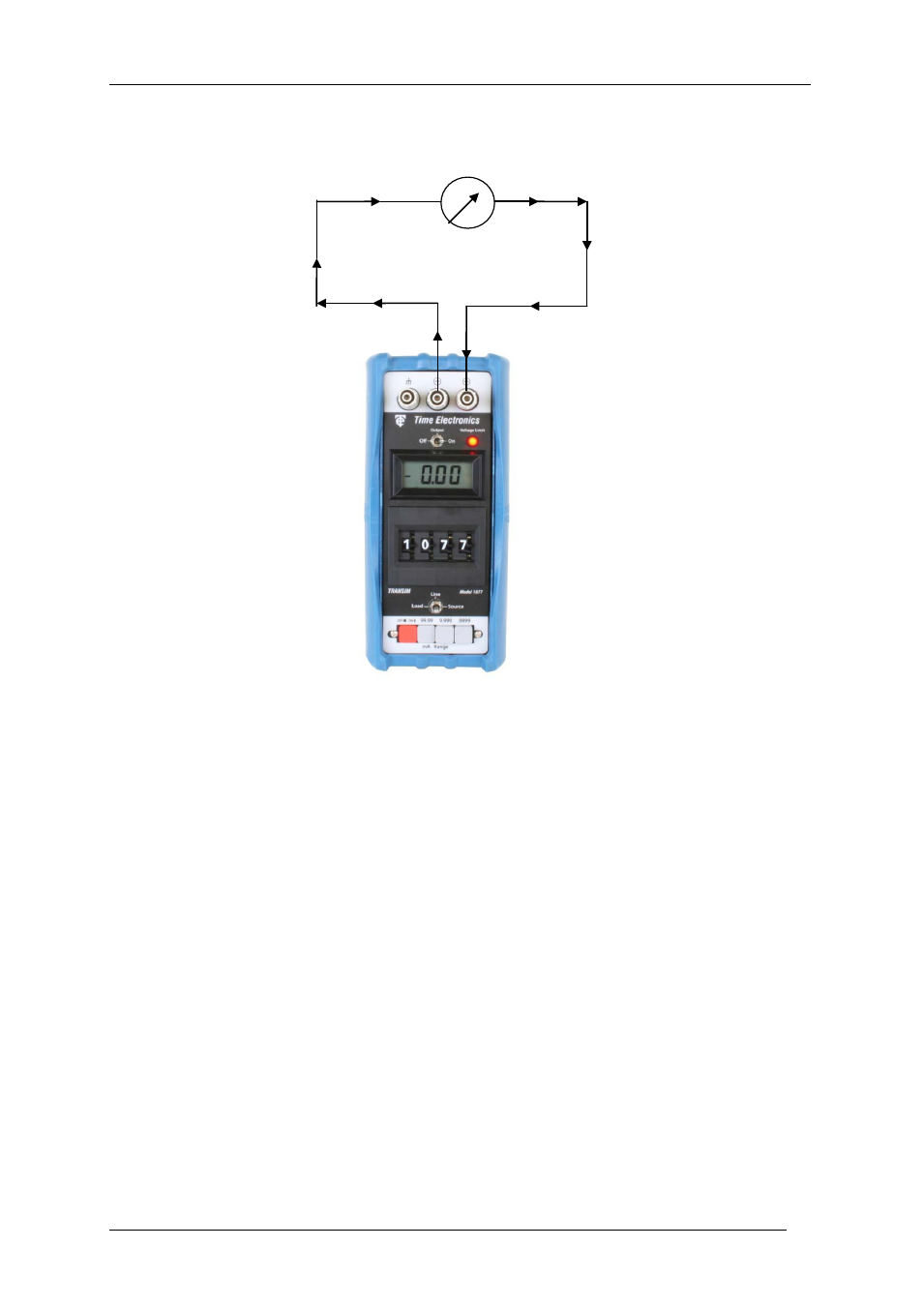

4.7. Operation as a Current Source
As a current source the 1077 will
supply the set current to the load
1. Check the setting of the output voltage control as in Section 3.1.
2. Turn on and select ‘Source’ mode.
3. Select most suitable range and set output on digit switches.
4. Connect ‘Load’ and turn output switch ON.
Note: If V limit LED illuminates the 1077 has insufficient drive voltage to output the current
set. See ‘Output Voltage Control’ Section.
I mA
