1077 Technical Manual P a g e | 10
4.6. Operation as a Current Load
(Transducer Simulation)
1. Turn on 1077, check battery level and select current range nearest to load current
required.
2. Select the ‘load’ position of the load/line/source switch.
3. Connect output terminals to the line:
• Positive terminal (red) to positive line.
• Negative terminal (black) to negative line.
4. Set load current required on the digit switch.
5. Turn output switch ‘ON’.
Warning
Any attempt to connect the 1077 to a line with more than 40 volts potential on it will
cause the 1077 output fuse to blow.
Note: If V limit LED illuminates the 1077 has insufficient drive voltage to output the current
set. See 'Output Voltage Control' Section.

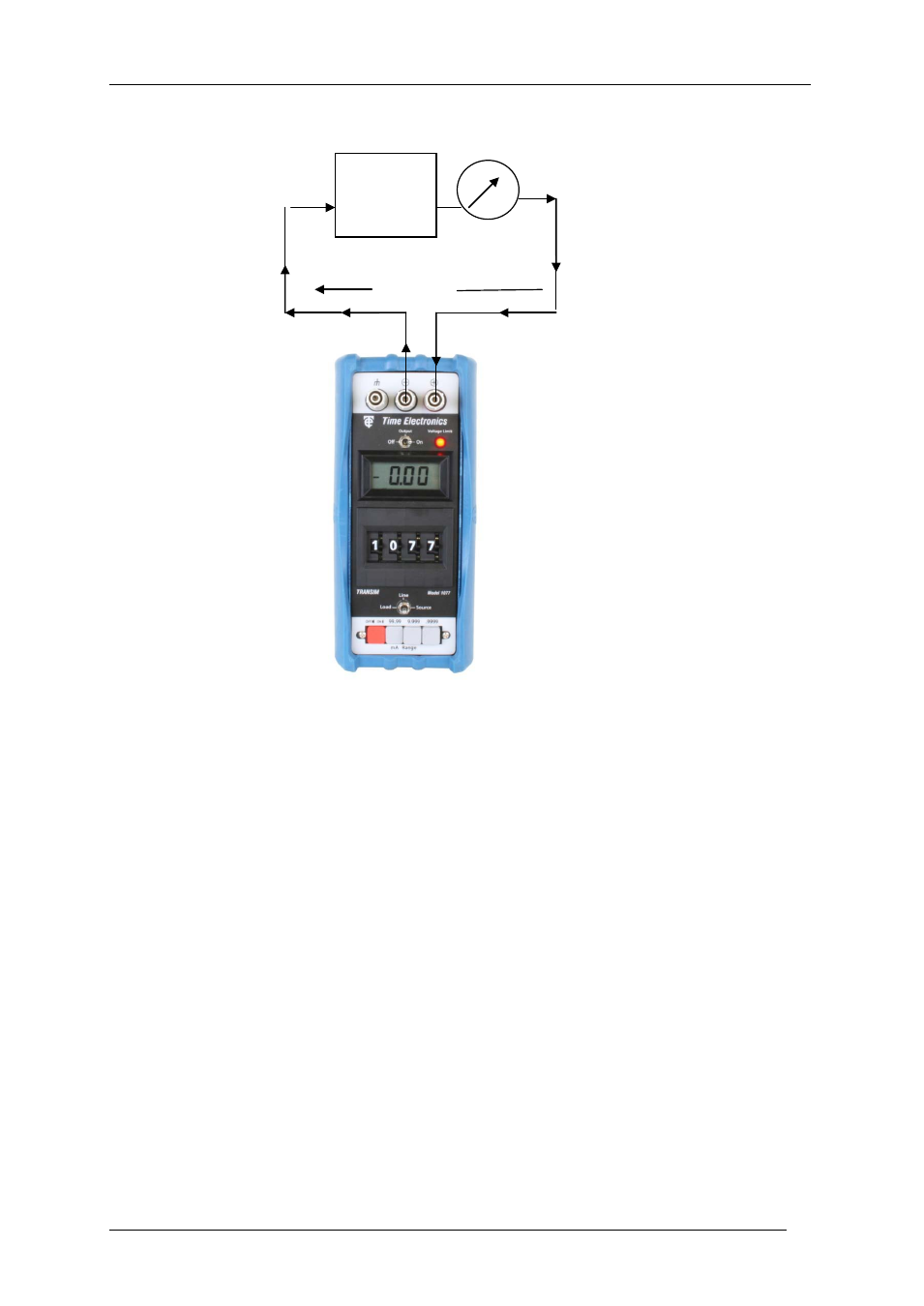

SUPPLY
- +
LINE
I mA
As a current load
the 1077 Will draw the
current set from the line.
