3.3 Panel Mount

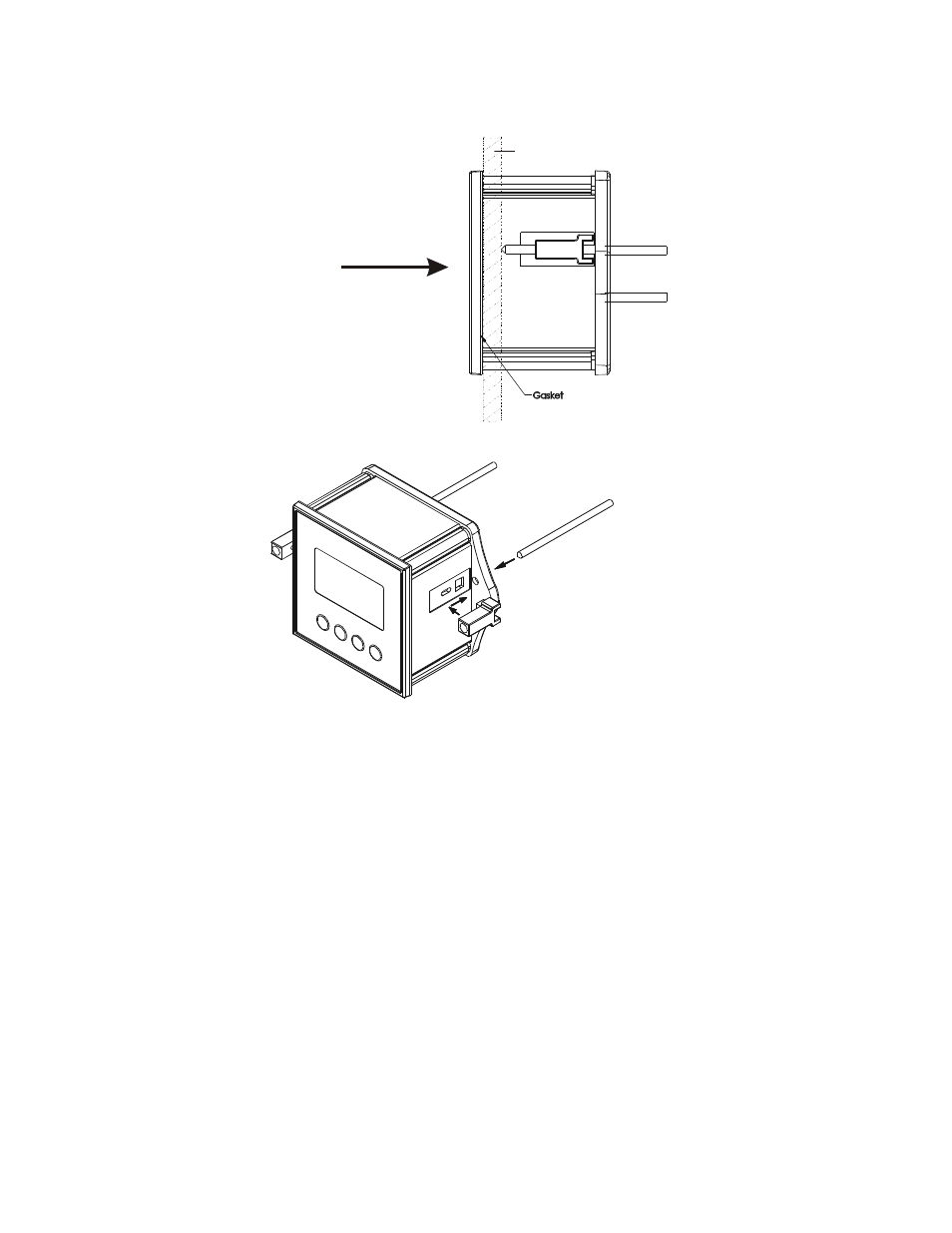

1. Prepare panel cut-out of
92.0 mm by 92.0 mm
2. Remove back cover of
transmitter and slide it
through panel cut-out
Panel (side)
3. Attach lugs to either
side of transmitter
4. Thread rods through
lugs until transmitter
is held in place against
panel
