PS139 Issue 4 07/2014

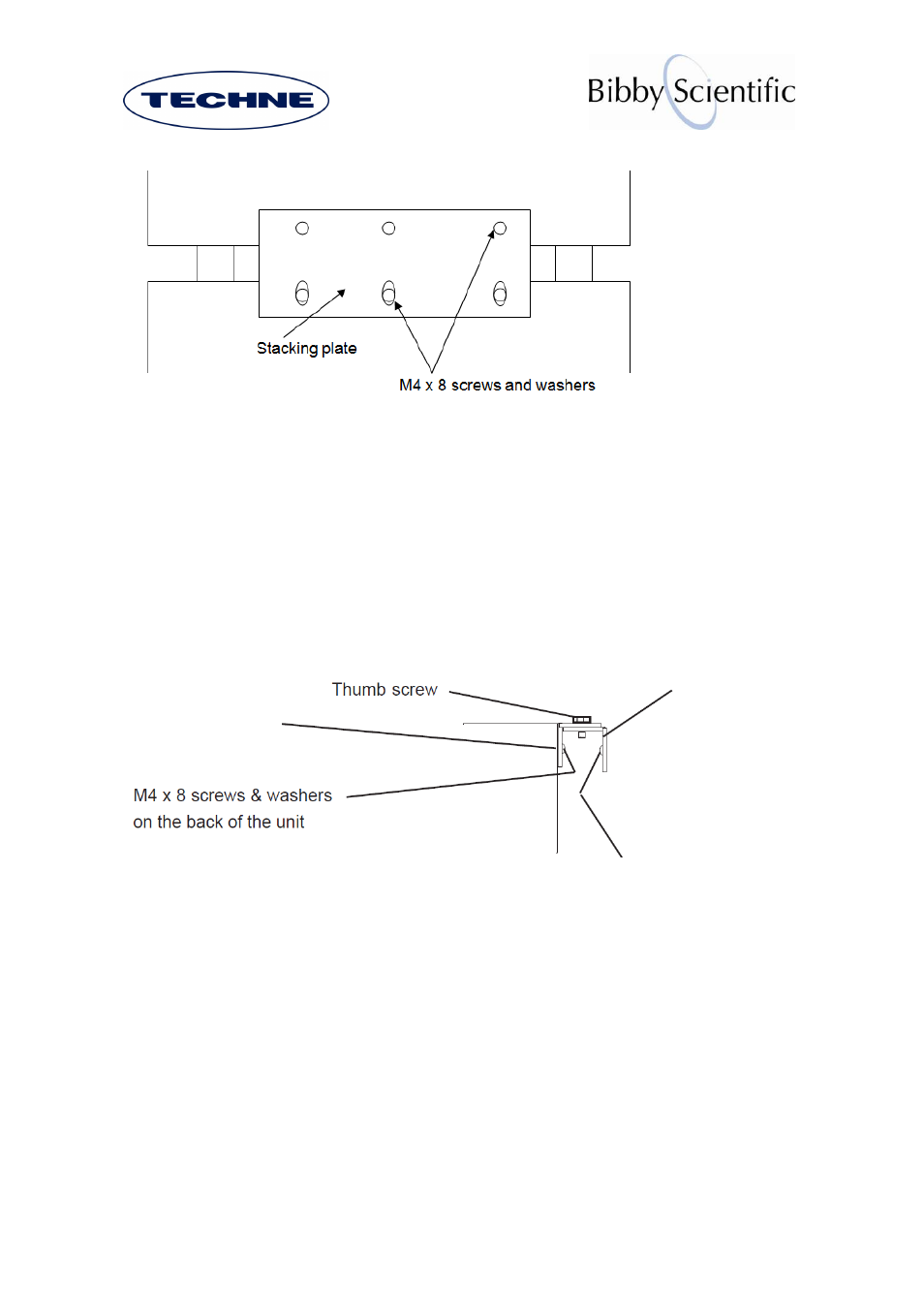

Fixing the stacking plate
7. For safety it is recommended that the top unit is fixed to a wall to prevent toppling. Use the
final three screws to attach the wall bracket to the top of the top unit. Ensure that the screws
are tight.
8. Put the hybridisers in the position you want to use them.
9. Position the wall plate and mark the position of the holes.
10. Use the appropriate screws and fixings to attach the wall plate to the wall; ensure that the
screws are tight.
Hybrigene with wall bracket attached
11. Re-position the hybridisers placing the wall bracket over the wall plate.
12. Use the thumb-screw to attach the wall bracket to the wall plate.
Fixing Procedure for three Hybrigenes
If you have three units, repeat the above process attaching a stacking plate between each pair of
units.
Wall fixings
Wall bracket
Wall plate
