Seametrics TX100-200-SERIES User Manual
Page 6
Page 4
INSTALLATION

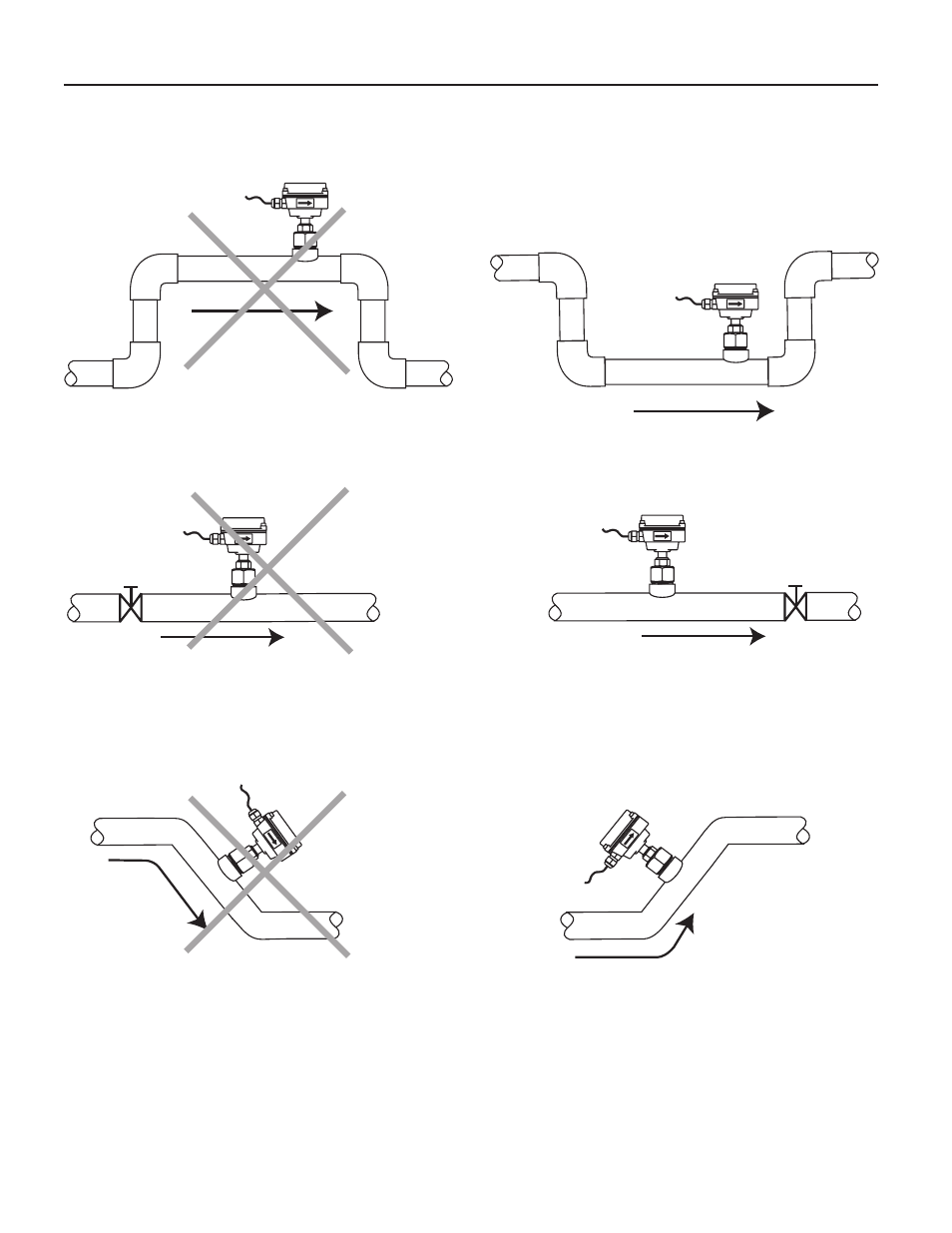

FULL PIPE RECOMMENDATIONS
Allows air pockets to form at sensor
Ensures full pipe
Post-valve cavitation can create air pocket
Keeps pipe full at sensor
Air can be trapped
Allows air to bleed off
Better Installation
Possible Problem
Better Installation
Possible Problem
Better Installation
Possible Problem
