- 6 -

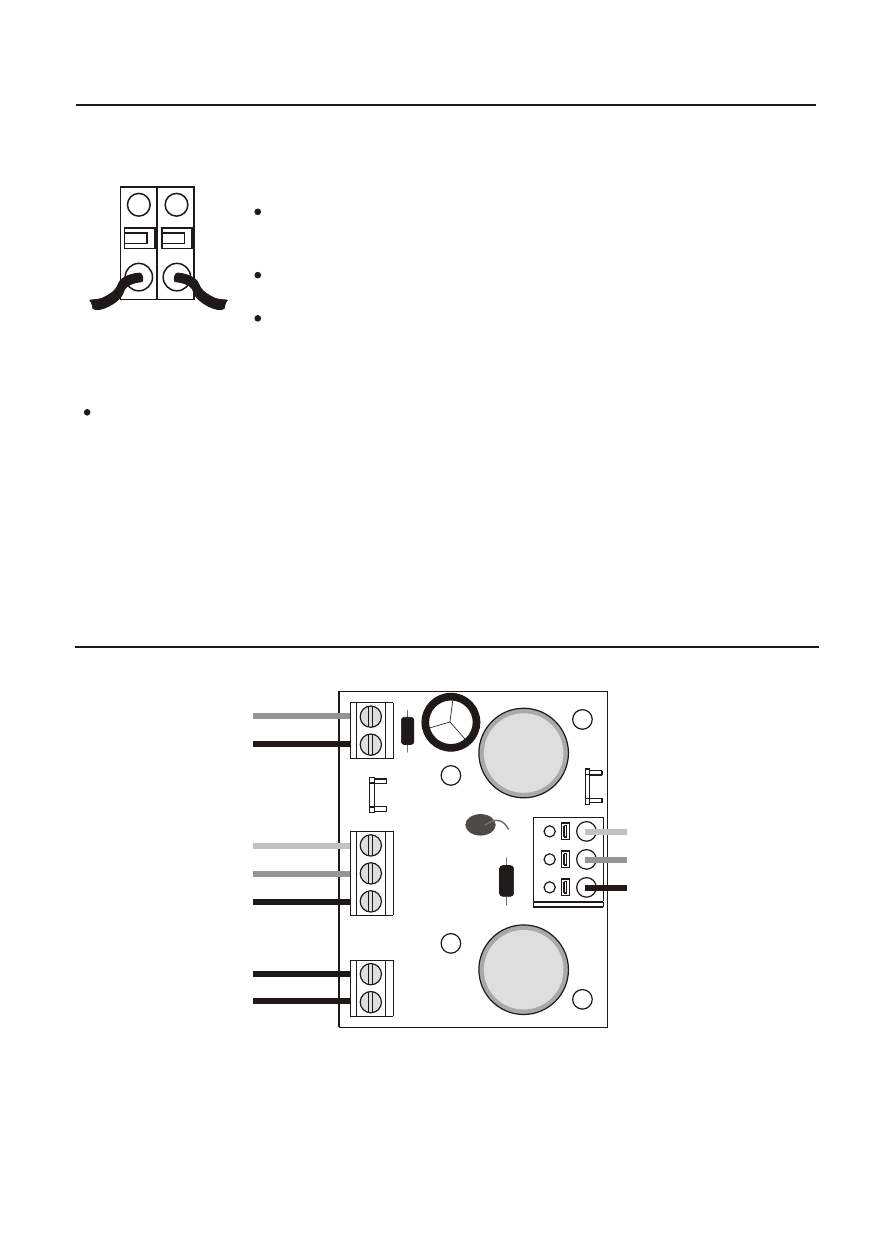

CONNECTIONS
1) POWER INPUT TERMINAL
This terminal accepts a DC12V or AC24V power
source from a DC12V or AC24V +/-10% 60/50Hz +/- 1Hz
Use Certified / Listed Class 2 power supply only.
In DC power, use the Adapter mode than DC 12V 500mA Capacity. CLASS 2
+ DC 12V -
~AC 24V~
2) VIDEO OUT CONNECTOR
BNC : This BNC connector provides a 1.0Vp-p/75 ohms composite video Signal.
WIRING DIAGRAM
24Vac Out
to Heater
24Vac Power
Supply Output
24Vdc Out
to Blower
24Vac Power
Supply Input
Ground
Ground
(B+)
(Ground)
J
3
J
6
J
4
J
5
J
1
24 Vac
*
HEATER AND BLOWER
