- 5 -
CAMERA OVERVIEW

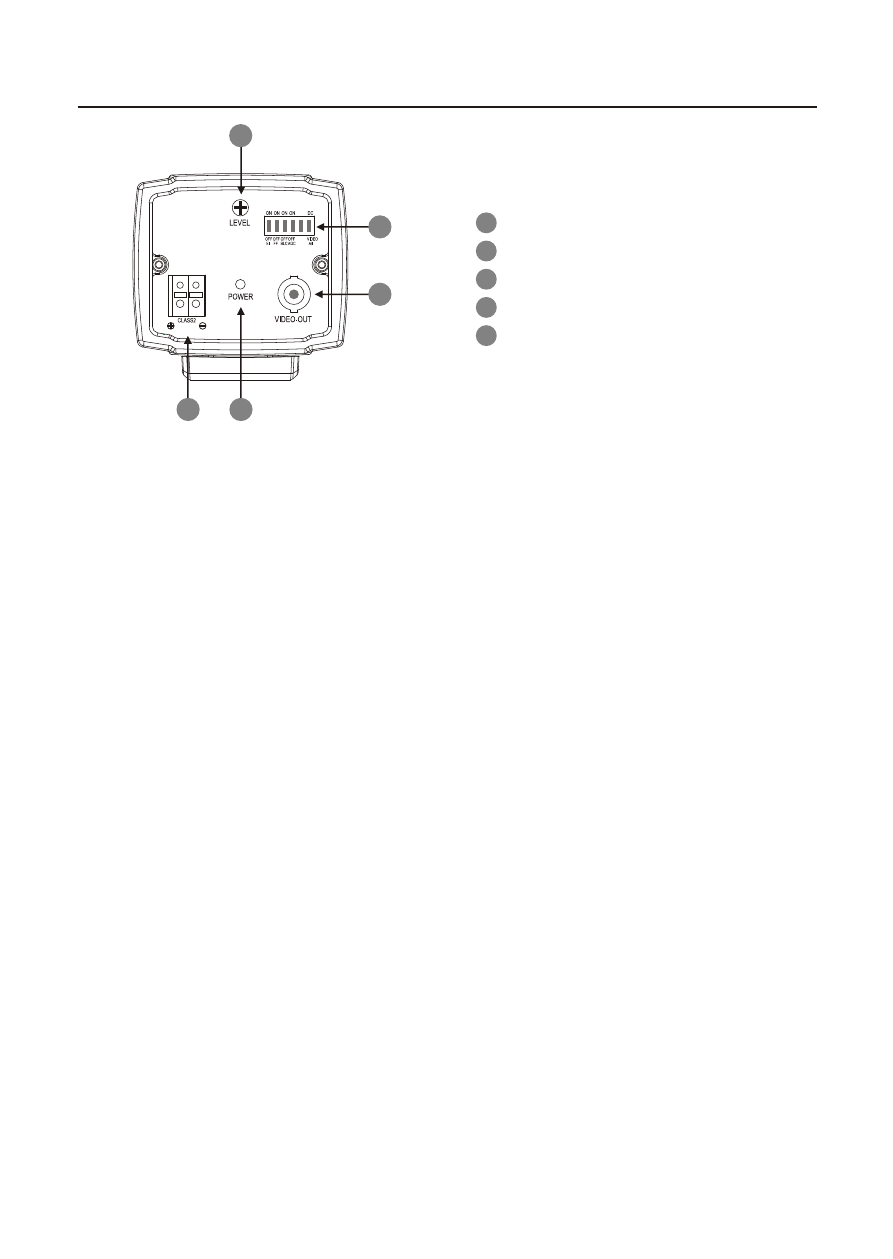

REAR VIEW
2
3 4
5
1
AUTO
COLOR
D/N
1
2
3
4
5
IRIS LEVEL
POWER INPUT TERMINAL
VIDEO OUTPUT CONNECTOR
POWER INDICATOR
FUNCTION SWITCH
DC 12V
~ AC 24V ~
1) IRIS LEVEL
2) FUNCTION SWITCH
Adjust the DC-type auto iris lens for an optimum picture using this volume.
- E/I (on/off)
When set to the ON position, the electronic iris switch automatically varies the camera's shutter
to mimic auto-iris control, allowing fixed or manual iris lenses to be used in a wider range.
When this switch is set to ON, turn the F/F switch OFF.
- FF (on/off)
This function is used for removing flicker, when camera signal format does not coincide with
power source frequency being used.
- BLC (on/off)
This on/off switch controls backlight compensation. When set to ON, the camera will
automatically try to maintain proper exposure in the specific area even if the lighting level changes.
- AGC (on/off)
The auto gain control switch allows the video signals to maintain a constant level. This switch is
useful when using the camera at low-light levels and when lighting levels change over time.
For best low light conditions, this switch should set to ON.
- Day/Night (Auto/Color)
Use this switch to set the camera Day/Night mode Auto(ON) or Color(OFF)
Auto : D/N mode converse automatically (AGC must set to ON)
Color : Only Color
- A/I (DC/VIDEO)
Use this switch to set the auto iris type.
3) POWER INPUT TERMINAL
4) POWER INDICATOR
5) VIDEO OUTPUT CONNECTOR
