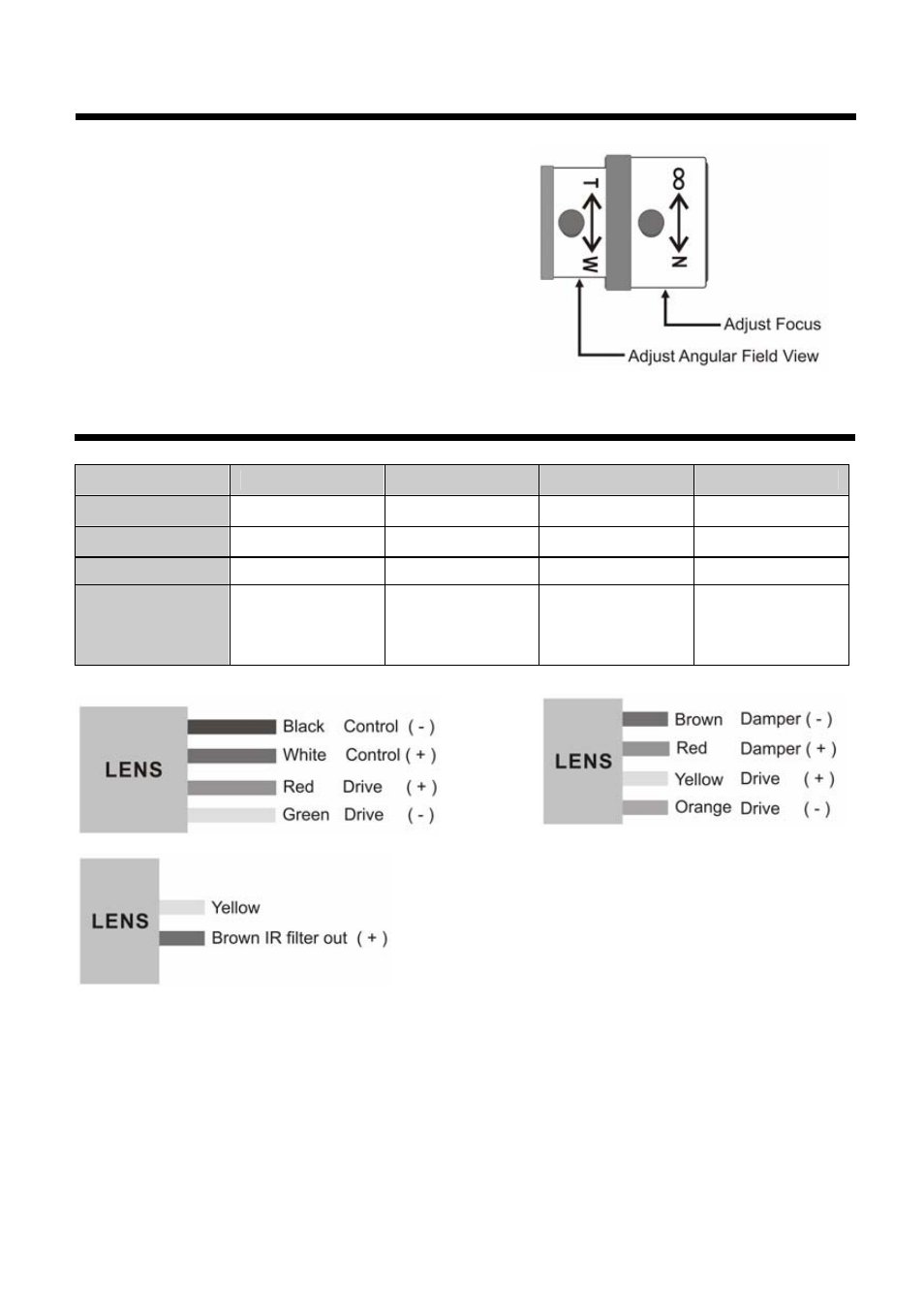

LENS ADJUSTMENT
Field of view
: Adjust setting
from Telephoto (T) to wide (W)
field of View.
Focus
: Adjust lens focus from
near (N) to infinity.
DC AUTO IRIS LENS
2.6-6mm 4-9mm 2.8~12mm 6-50mm
Image Size
1/3” CCD 1/3" CCD 1/3" CCD 1/3" CCD
Focal Length
2.6-6.0mm 5% 4.0-9.0mm 5% 2.8-12mm 5% 6.0-50mm 5%
Ape. Ratio
1 : 1.6 5% 1 : 1.6 5% 1 : 1.4 5% 1 : 1.6 6.9%
Angular
Field of View
(Degree)
DIAGONAL
2.6mm : 134.6
6mm : 59.2
DIAGONAL
4mm : 92.4
9mm : 39.2
DIAGONAL
2.8mm : 119.9
12mm : 28.8
DIAGONAL
6mm : 58.6
50mm : 7.1
