4
Installation of the camera must be performed by qualified service personnel in
accordance with all local and national electrical and mechanical codes.
Carefully remove the color camera and its accessories from the carton
and verify that they were not damaged in shipment.
The contents of the package includes:
1. Color CCD camera
2. Mini-DIN connector (for video-or dc-type auto-iris lens)
3. This Manual
CONTENTS OF PACKAGE
When using a manual iris lens, turn the iris ring on the lens to the OPEN
position and adjust the manual iris for the appropriate range. Adjust during the
brightest conditions, opening the lens to the minimum f-stop yielding a good
picture under the brightest scene conditions. Do not saturate the picture.
The manual iris is used in indoor applications where lighting from windows can
considerably affect the light level of the room.
MANUAL IRIS LENS ADJUSTMENT
CONNECTIONS

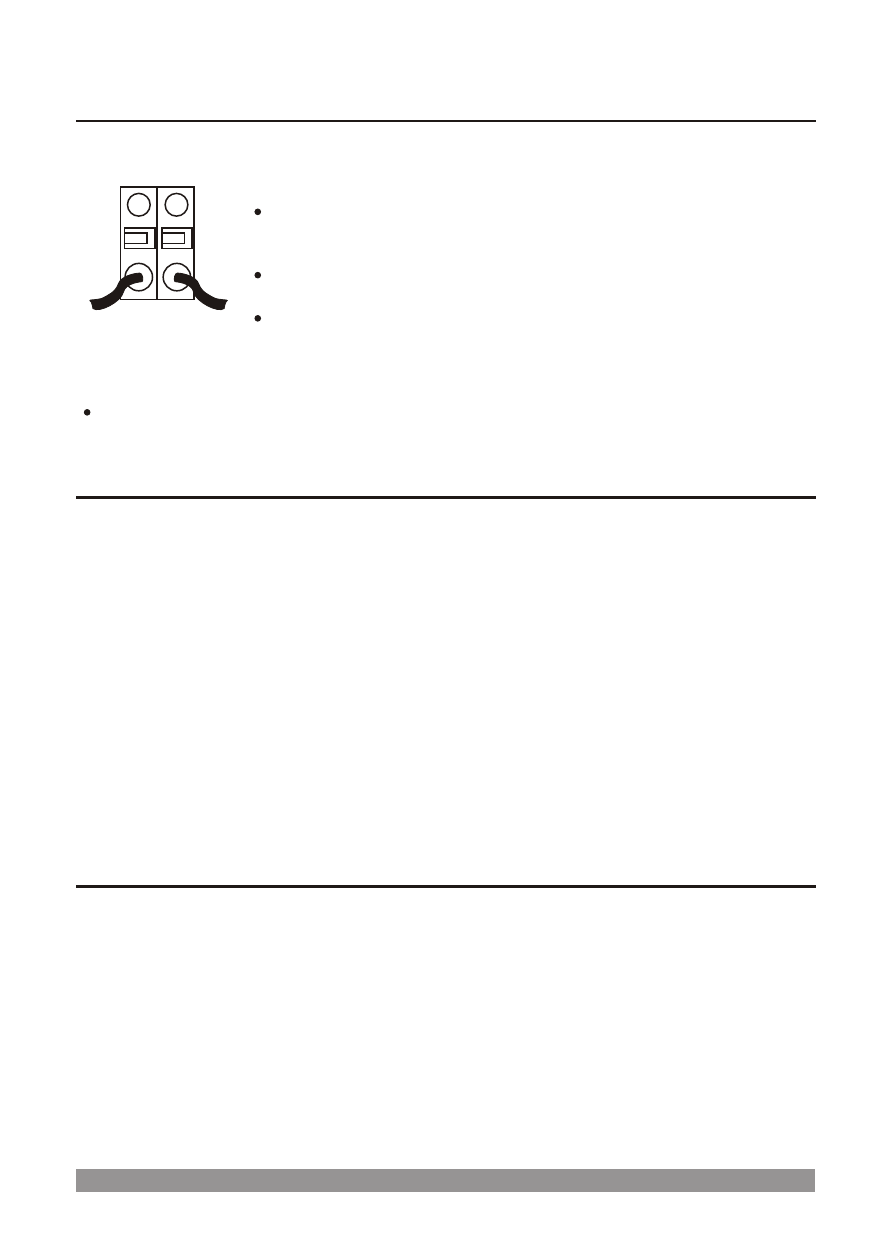

1) POWER INPUT TERMINAL
This terminal accepts a DC12V or AC24V power
source from a DC12V or AC24V +/-10% 60/50Hz +/- 1Hz
Use Certified / Listed Class 2 power supply only.
In DC power, use the Adapter mode than DC 12V 500mA Capacity. CLASS 2
+ DC 12V -
~AC 24V~
2) VIDEO OUT CONNECTOR
BNC : This BNC connector provides a 1.0Vp-p/75 ohms composite video Signal.
