Crossing object is not considered. / Several objects will not be detected.
If the distance is increases between the camera and entrance, the result can be
inaccuracy.
1) Sharpness : Adjust sharpness of outlines (0~15)
2) Resolution : Select high resolution mode (Low/Mid/High)
3) 2D-NR : Select 2D noise reduction level (0~6)
¾ 2D-NR : Noise reduction on a frame
4) 3D-NR : Select 3D noise reduction level (0~31)
¾ 3D-NR : Noise reduction through the several frame
5) DNR Demo : Select DNR Demo Display On/Off using the Left and Right Buttons
None DNR Effect
Display
DNR Applied
Display
1) d-Effect(Digital Effect) : Select digital Flip/Rotate state (Off/Rotation/Mirror/V Flip )
2) Nega : Select negative color state(on/off)
3) d-PTZ (Digital Pan, Tilt, Zoom) : Adjust d-PTZ.
¾ Func : Press the Enter button to turn digital zoom on/off.
¾ Zoom : Use the Left and Right buttons adjust to digital zoom(0-255).
¾ Pan&Tilt : Press the Enter button to access the Pan&Tilt.
„ Use the Left and Right buttons adjust to digital pan
„ Use the Up and Down buttons adjust to digital tilt
„ Press the Enter button to exit.
¾ PT Reset(Pan & Tilt Reset) : Press the Enter button to reset digital pan and tilt.
4) Freeze : Select the still mode on/off
5) Frame Control: Select term of refresh rate for output video. This function is useful to
reduce the recording to data storage.
¾ Func : Select frame control mode to ON/OFF, and Auto.

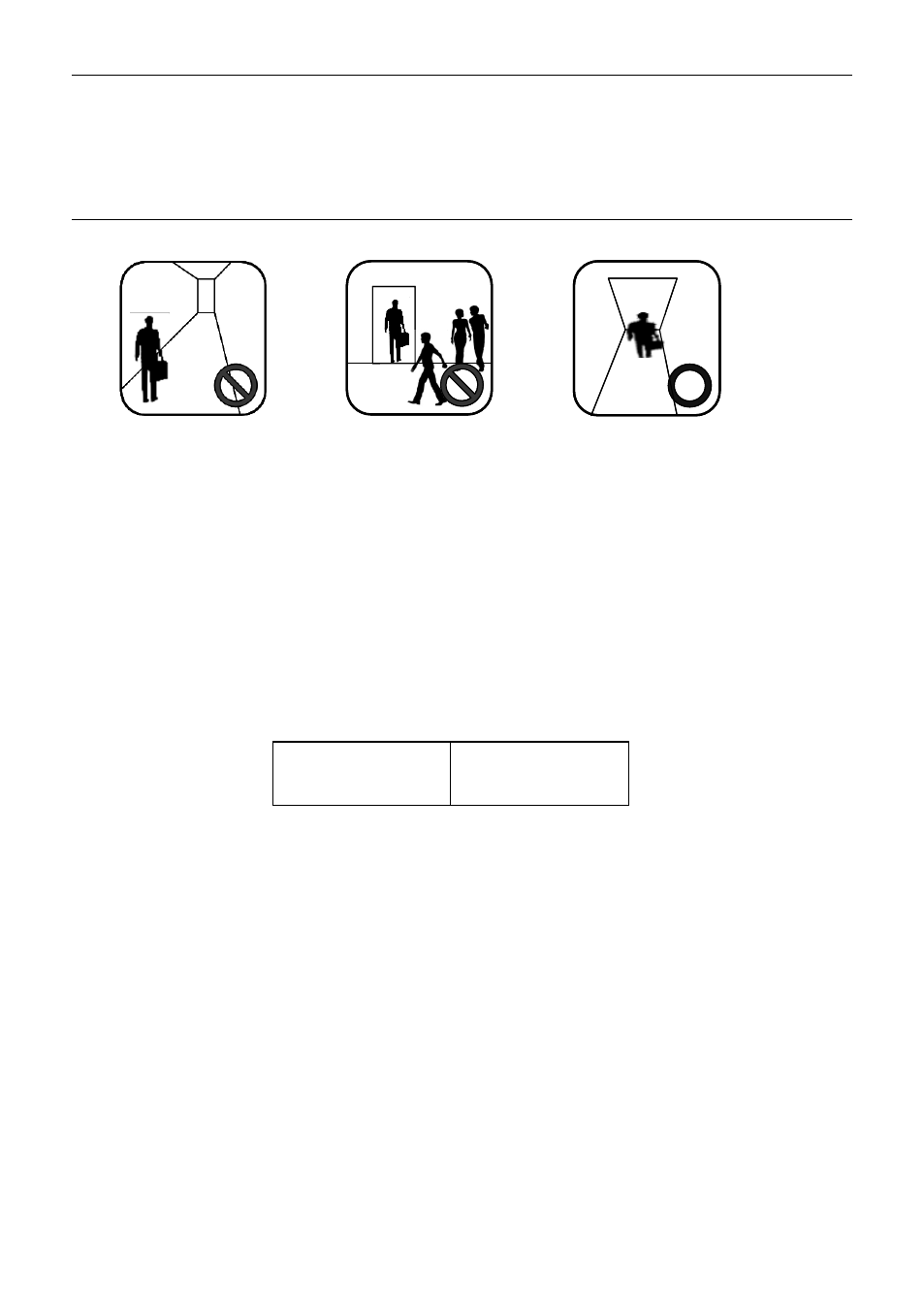

Several Object
Crossing Object
Camera Installed at the ceiling
Crossing object is none
One object is passing.
The distance is too long
