9
allows you to choose between the Internal or External
speakers (External speakers, max 100W each).
Power Connections (Figure C, below right)
Connect the power cord from an AC outlet to the re-
ceptacle at the bottom of illustration (Figure C, below
right). You can also plug in another device into the top
receptacle to power it.
Input Voltage Select: The Roadwiz power supply is
100V-240V, 50/60Hz. Make sure the voltage of the
AC outlet matches the requirements of your Roadwiz.

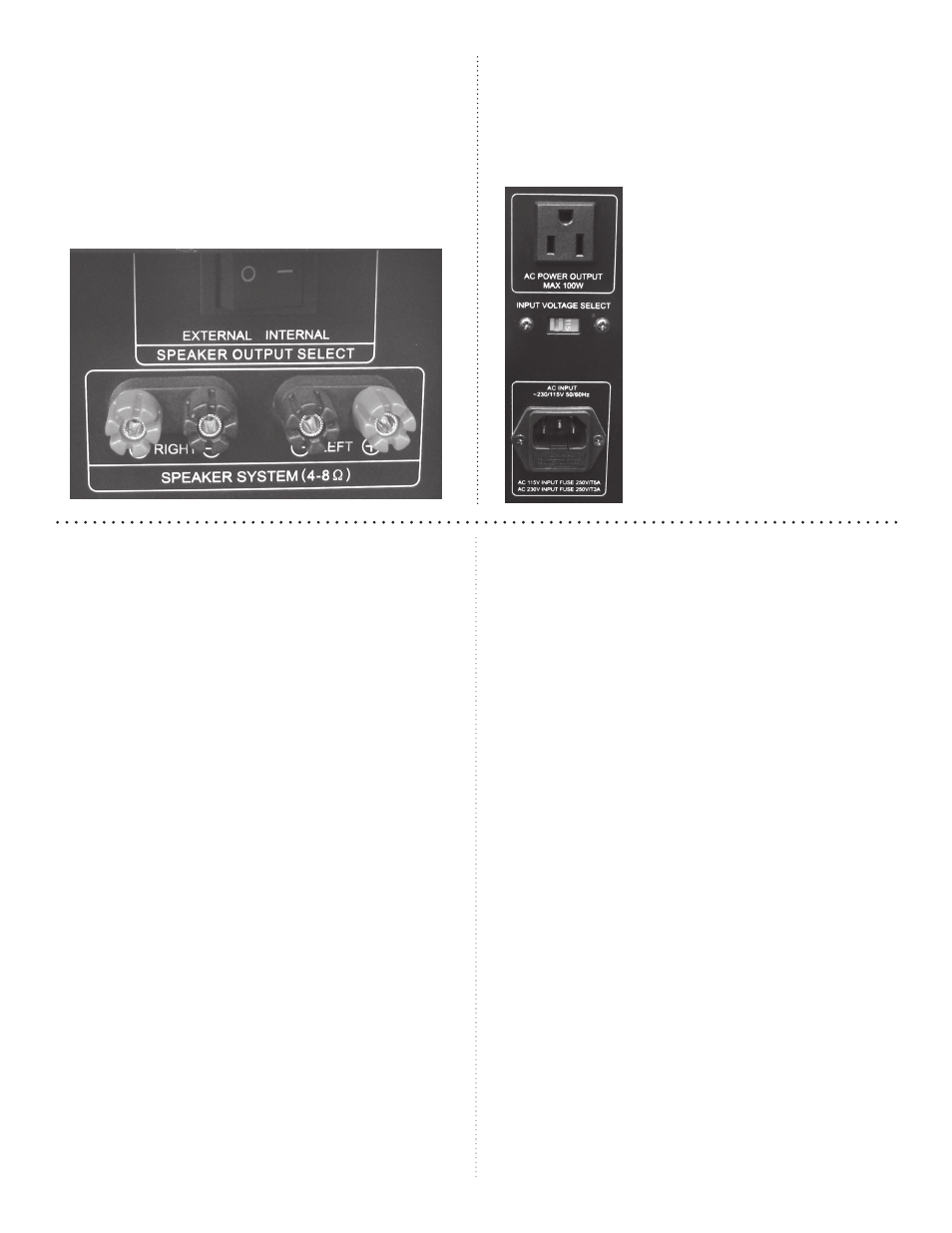

Figure B, center rear panel
Figure C, right rear panel
Basic Operation: Playback (Roadwiz mode)
Power Up Roadwiz: Use front panel Power switch.
Loading a Disc: Press EJECT to open the disc tray,
place a disc in the tray, press EJECT to close the disc
tray – the disc will play automatically.
If a Menu Is Shown on the TV Screen
When inserting a DVD or VCD disc, a menu may be
displayed before playback. From the menu, you may
select a desired item to be played back.
For DVD Video
1. Use the arrow keys to select the desired track.
2. Press ENTER to play back the selected track.
For Video CD
1. Press the numeric buttons to select a desired item.
The player starts playback of the selected item.
Note: Do NOT insert a damaged disc. If a disc takes
more time than usual to read, or the DISPLAY WIN-
DOW shows LOAD for an extended period of time,
press EJECT on the Remote or from the front panel
and check disc for any dirt, fingerprints or defects.
To End, Pause and Resume Playback
On DVDs and VCDs, press STOP to end playback,
or PAUSE to pause playback. To resume, press either
the PLAY or PAUSE button.
To Stop Playback Completely
Press the STOP button twice. Now when you press
the PLAY button, it will start at the beginning of the
disc. Also, if you eject the disc, the playback complete-
ly stops and the unit ejects the disc.
Playback from USB and SD Cards
Note: The Roadwiz is not a computer system and it
cannot support large external hard drives or any stor-
age device containing more than 2,000 files (for ex-
ample, 2,000 MP3 files or 1,000 MP3+G songs (each
MP3+G contains has two files, a .cdg and an .mp3).
The Roadwiz may support 2.5” external hard drives
that do not require an external power source but we
cannot guarantee it will support all models. Acesonic
recommends using a USB flash drive formatted to
FAT32, but we cannot guarantee that every USB flash
drive will work. Please try another brand if you are
experiencing compatibility issues.
USB Port and Operation
You can play your own video and audio files as the
Roadwiz supports MP3, CD+G, MP3+G, DVD, AVI
and DivX formats that are stored in external memory
devices (flash drives, card readers). Note: These de-
