Page 8

Video (yellow) and Audio (red/white).
5. AUX OUT: Additional RCA A/V outs to send

line-level signal(s) to other devices, like amps.
6. KARAOKE MIX RCA OUTS: Stereo lines out

and two (2) Subwoofer Outs.
7. MULTIFORMAT KARAOKE PLAYER OUTS:

First three pairs of RCA outputs at left are for

SURROUND output. To use Surround, press Re-

mote key (see pages 6-7) or change settings in the

SETUP menu: SETUP > SPEAKER SETUP >

DOWNMIX > OFF, SUBWOOFER >ON.
SCORE INS: Inputs 1 and 2 support scoring

function from outside audio inputs like amplifiers

or receivers. Change setting in the SETUP menu:

SETUP > AUDIO SETUP > SCORE > ON.

8. OTHER VIDEO OUTS:

• Y, U and V are Component Video Outs.
• Beneath Y, U and V are COAXIAL OUT,

COMPOSITE VIDEO OUT and S-VIDEO

OUT. Note: Coaxial connects to digital amp or

receiver for 5.1 channel sound. Change SETUP

menu first: SETUP > AUDIO SETUP > SPDIF

OUTPUT > SPDIF/RAM OR SPDIF/PCM.

Note: Karaoke doesn’t work with COAXIAL.

9. OPTICAL OUT: Digital Audio Out for optical

cable. Note: Karaoke does not work with OPTICAL.
Connecting Roadwiz and Surround Sound
Make sure to connect your Roadwiz to your surround

sound speakers appropriately (FR, FL, Center, etc.).
Note: There is NO microphone audio output in SUR-

ROUND SOUND mode. Other instances where mic

audio will not be available include Optical out, and

there is no vocal mixing with DVD music.
External Speakers, Output Select (Figure B, next page)
You can connect your Roadwiz to external speakers

with the two pairs of wiring posts on the rear panel, as

(see Figure B, next page). The Speaker Output Select

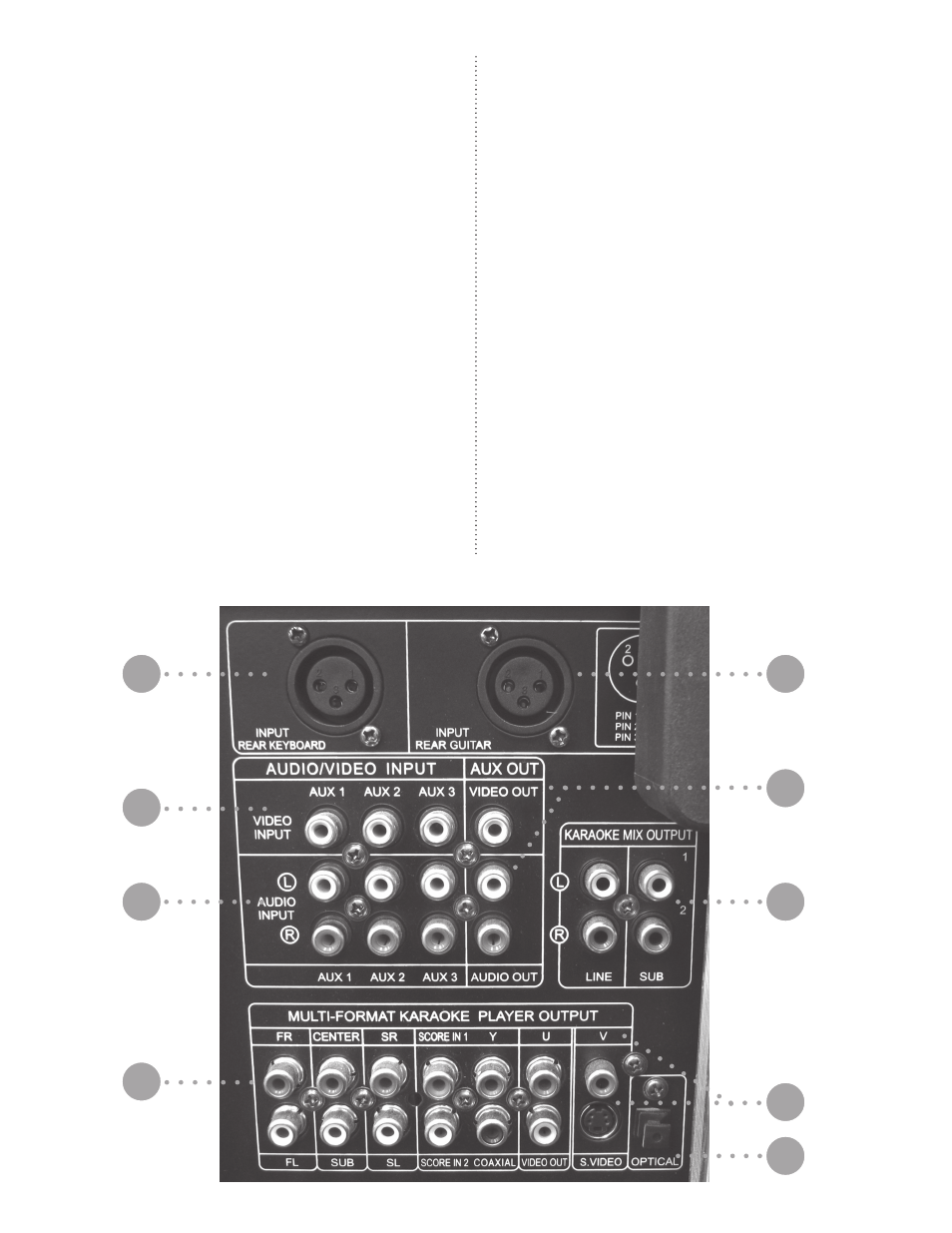

Figure A, left rear panel
