Surface-Mount Installation
NOTE
Make sure that you run your power, video and signal cabling for the camera prior to
installing it. See the Wiring section.
1. Using the supplied template sheet, mark holes in the ceiling for the Surface Case wiring
access and the anchors that you will secure the camera to the ceiling with the screws. Cut
out the hole for the wire access and use a suitable sized drill bit or punch to make the holes
for the anchors.

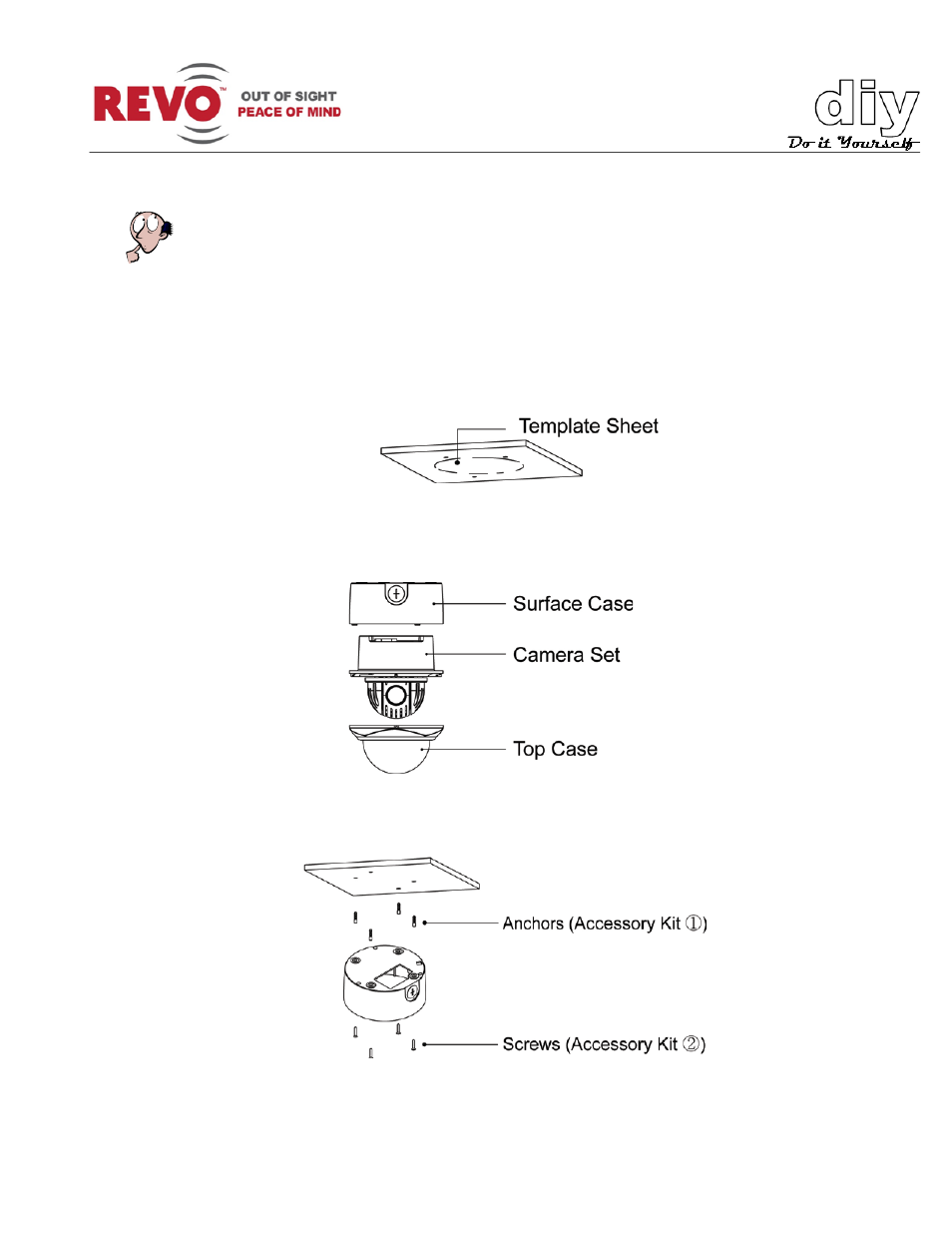

2. Disassemble the Surface Case, Camera Set and Top Case as shown below.
3. Insert 4 plastic anchors in the holes that you made for them in step 1.
4. Attach the Surface Case to the ceiling with 4 mounting screws PH6 x 35.
