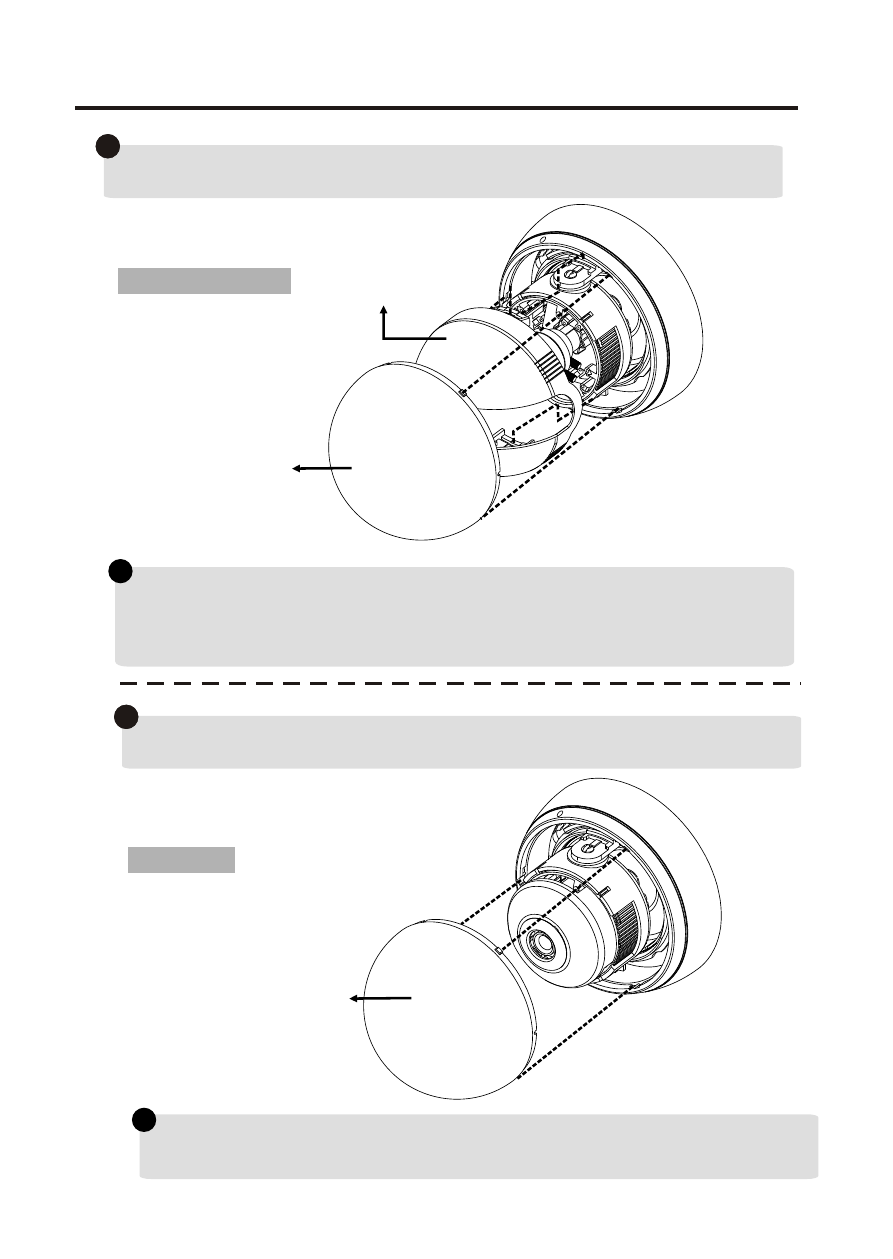

Make mounting holes and cable hole in the place (ceiling) to which
this dome camera is installed using the Drilling guide label.
Dome window
Liner
BASE INSTALLATION
To remove dome cover, turn the dome cover counterclockwise
until locators reach end of travel and pull off.
2
Push the liner on the sides where the patterns are put in the teeth
of a comb and pull it out.
1
Make mounting holes and cable hole in the place (ceiling) to which
this dome camera is installed using the Drilling guide label.
Dome window
To remove dome cover, turn the dome cover counterclockwise
until locators reach end of travel and pull off.
2
Varifocal Lens
Fix Lens
