Precision Control Systems ChamberIR E4 User Manual
Page 13

Page 12 of 19
Power Connection -

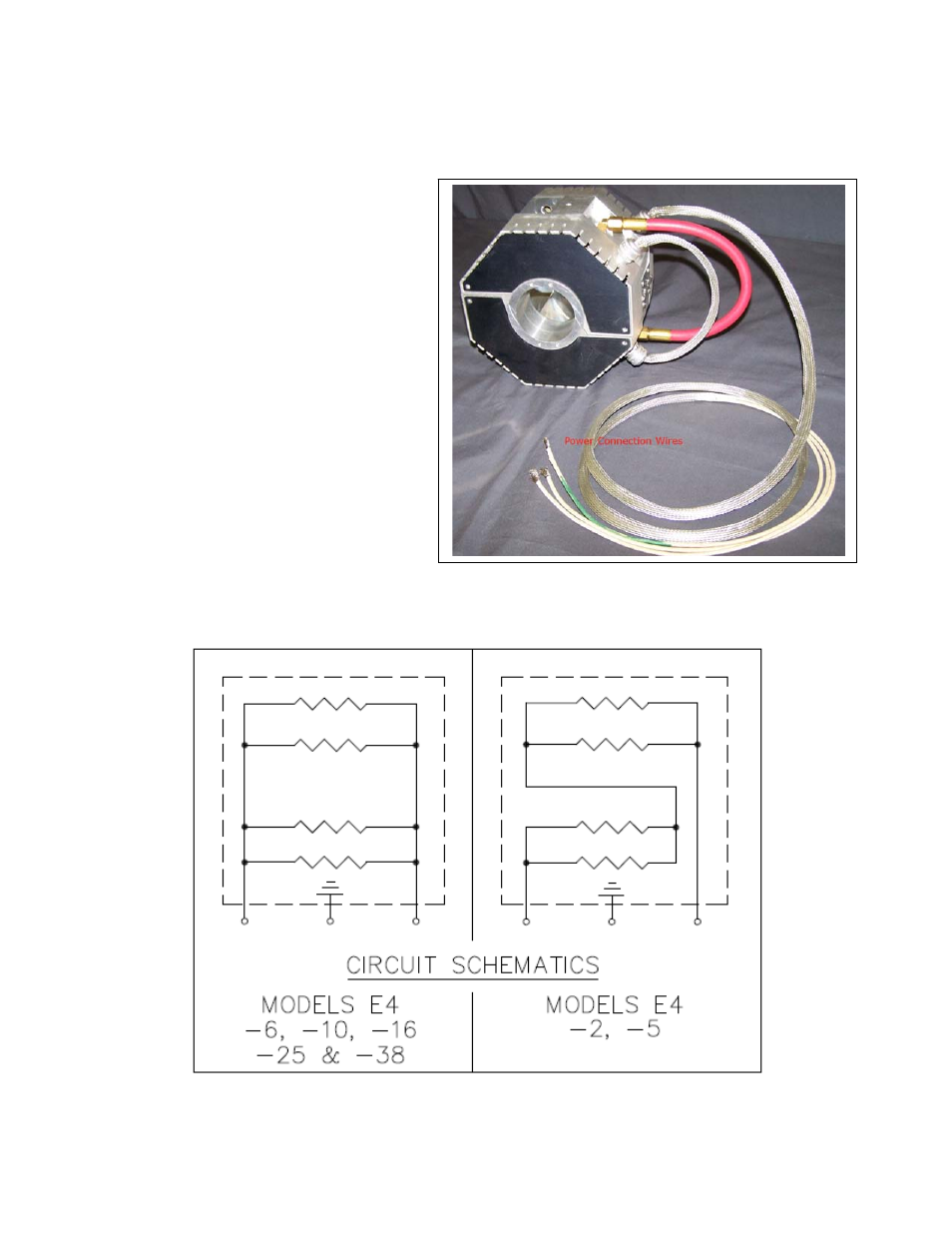

Power connections to the heater are made using the attached power cord as shown in figure 4-
1 below.
Figure 4-1
Connect power according to the appropriate circuit diagram shown in figure 4-2, using the
appropriate voltage rating as listed in specification table 2-1.
Figure 4-2
