Installing an Optional Remote Timer-Start Switch
1. Remove the plug from the upper circuit board (Fig. 3-4).
2. Pass the Remote Timer-Start switch wire through the top strain relief clamp.
3. Fasten the two wires from a normally-open switch into the small compression lugs on
the plug and tighten the screws.
4. Re-insert the plug onto the board.
5. Tighten the screws on the strain relief clamp to secure the wire.
6. Replace the top cover and the four Phillips screws.

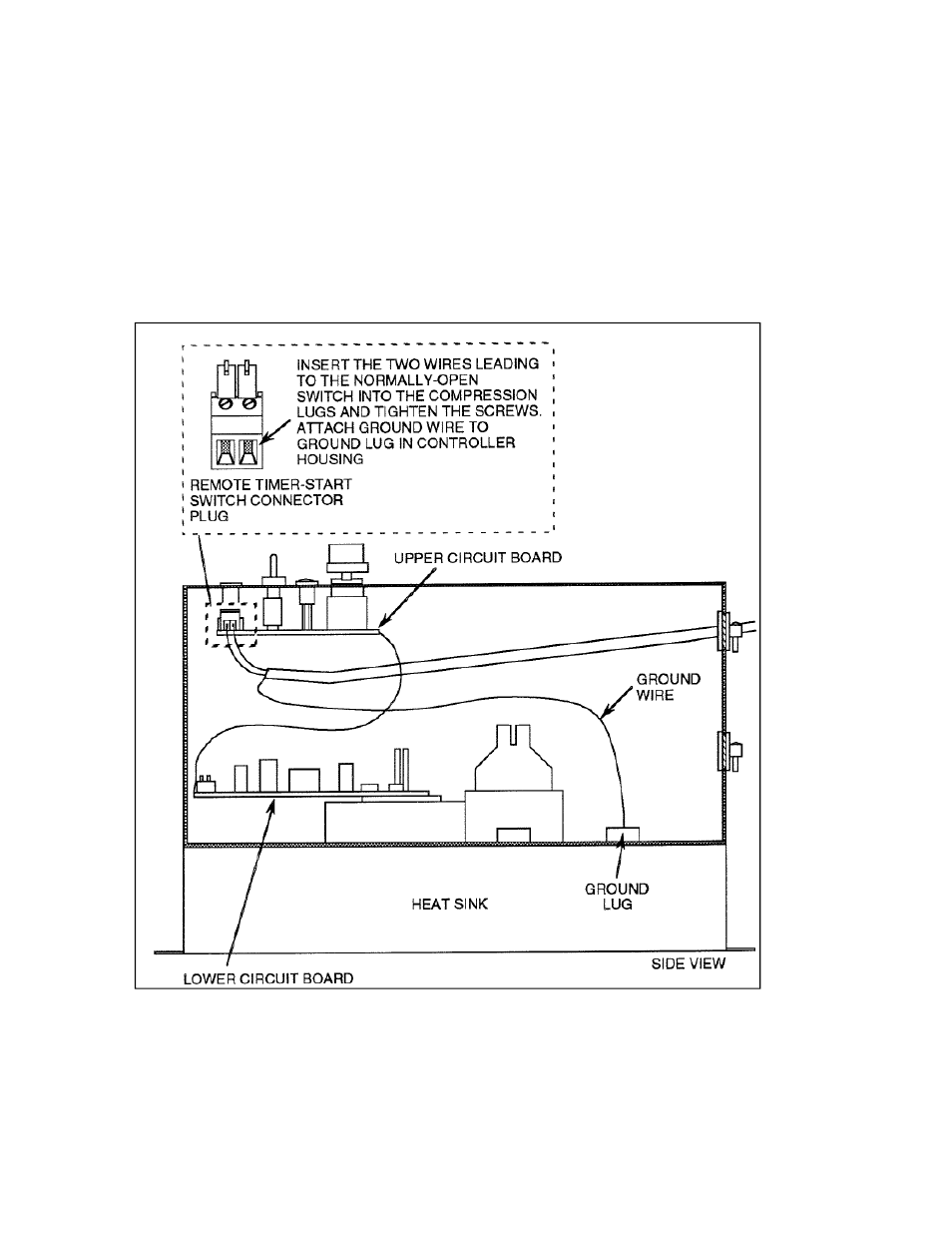

Figure 3-4 Installing the Remote Timer-Start switch to the upper circuit board.
