4
4.0 SCHEDULE SET MODE

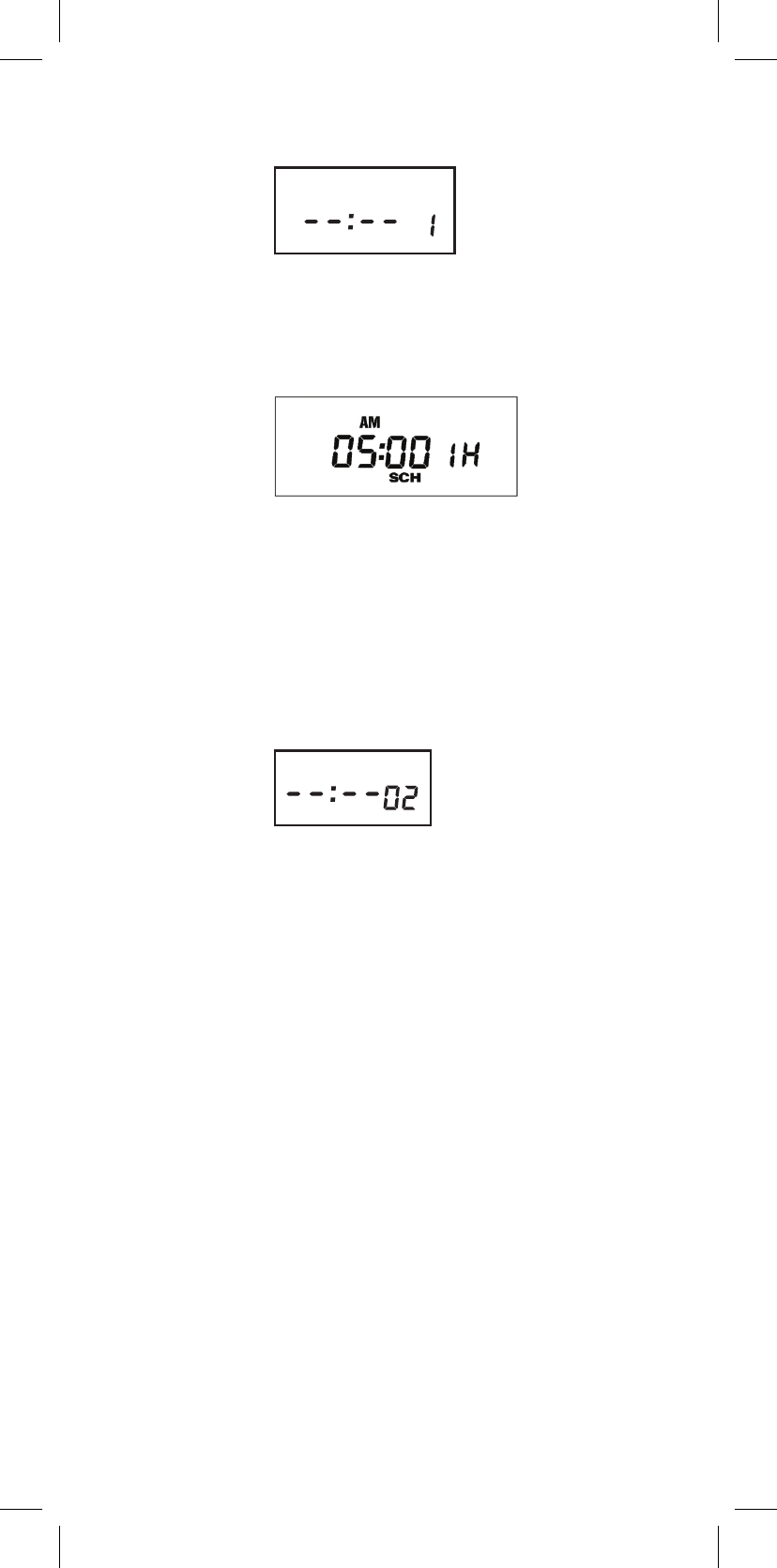

The display shows:
4.1 SETTING HOURS AND MINUTES
Press HOUR and MIN to set desired time. Press EVENT key
to select pump event: H (high-speed pump), L (low-speed
pump) or OFF (pump OFF).
Press the ENTER key.
4.2 SET NEXT EVENT
The display will show:
Follow the procedure 4.1 to set more schedule entries such
as the time to switch to LOW speed setting.
Note: A complete schedule should have three entries. #1 is a
HIGH speed start time. #2 is the LOW speed start time. #3 is
the time to turn OFF the motor. A maximum of 3 complete
cycles are allowed each day.
When all settings are complete press MODE to go AUTO
(automatic) screen. Timer is ready.
5.0 REVIEW, MODIFY AND DELETE
Press MODE to advance to any of the following MODES:
1. CLOCK MODE: Press HOUR and MIN to modify existing settings.
Press ENTER.
2. DATE MODE: Press MONTH, DATE and YEAR to modify existing set-
tings. Press ENTER. Day is automatically adjusted.
3. DAYLIGHT SAVINGS TIME MODE: Press DEL to modify to ON or OFF.
Press ENTER.
SCH
In this example:
On the right hand side of the display are the number “1” and the letter
“H”. This stands for Event #1, and it has been programmed to turn ON
pump at high-speed setting.
SCH
