EM32-1B-LED

Martel Electronics Corporation 3

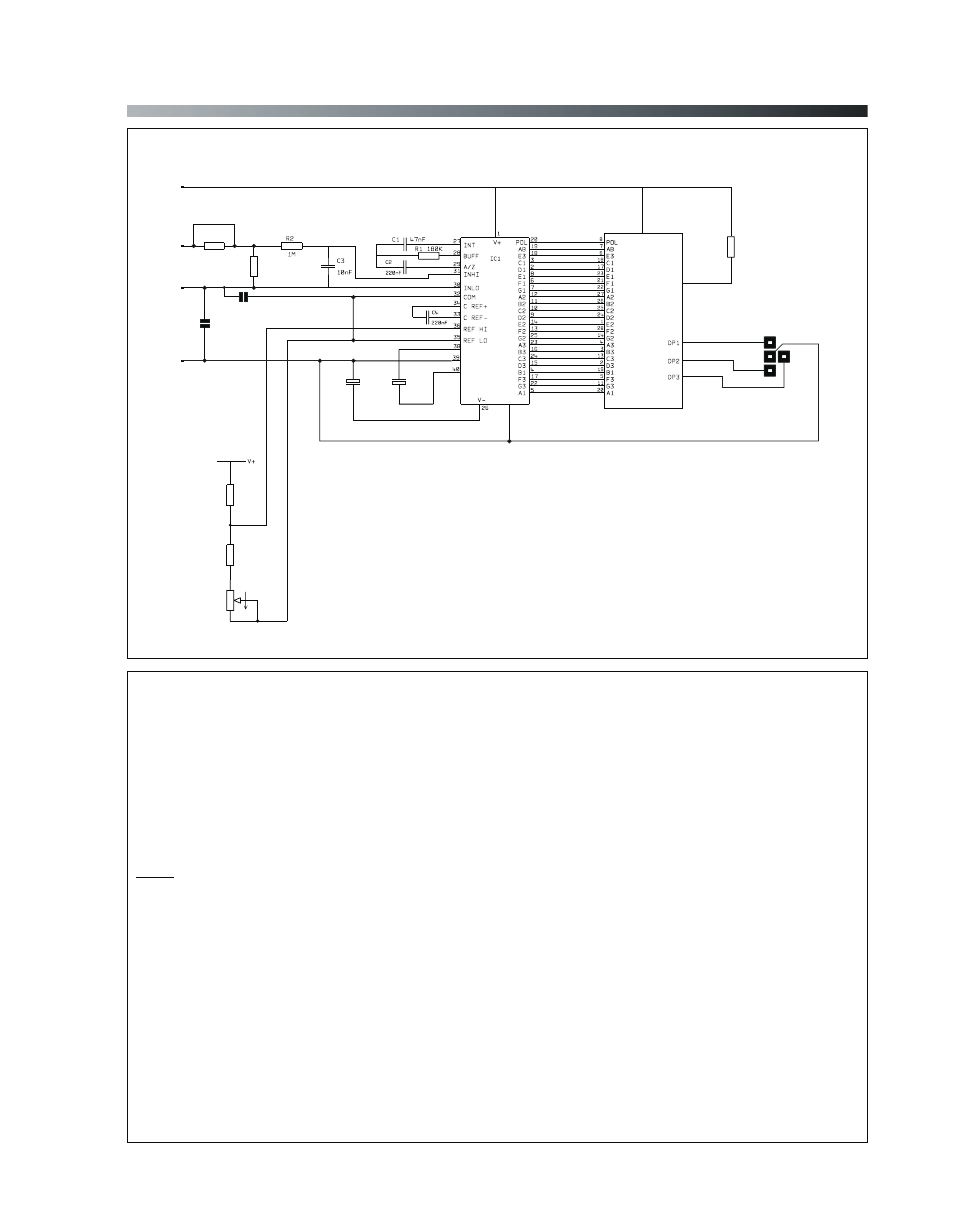

CIRCUIT DIAGRAM

EM32-1B-LED

Round Hole Mounting LED Voltmeter

J1

J2

DISPLAY

0V

ILO

IHI

V+

MAX140

CAP-

GND

CAP+

C6
1u5

C6
1u5

R6
1k0

R5
3k0

R4
100k

R7
1k5

ANODE

DP1, DP2, DP3

DGND

21

Ra

Rb

Page 4 of 4

SCREW TERMINAL FUNCTIONS

JUMPER LINKS

0V

Negative power supply to the meter.

V+

Positive power supply to the meter (+5V nom).

IHI

Positive measuring input.
IHI must be no closer than 1.5V to either the positive or the internal negative supply.

ILO

Negative measuring input.
ILO must be no closer than 1.5V to either the positive or the internal negative supply.

Internal negative supply. This is generated from the supply voltage between V+ and 0V, and is negative
with respect to 0V.
For example:

if V+ = +5V (with respect to 0V), then the allowable common mode input range is from

(V+ - 1.5V) to (V- + 1.5V) or from 3.5V to -3.5V with respect to the 0V power supply connection.

J1

Connects ILO to COM, when jumper link is fitted.

J2

Connects ILO to 0V, when jumper link is fitted.

Note:

Page 4 of 4
