Martel Electronics MPP-24-M - Manual (Page 3)

PanelPilot Compatible Smart Graphics Display
49.5 1.9
38.0
1.5
76.5 3.01
48.5
1.9
16.4 0.6
1.6 0.1
73.5 2.89
45.5
1.8
17.1 0.7
7.7 0.3 3.9
0.2
29.2 1.1 15.2 0.6
7.5
0.3
7.0
0.3
4.1 0.2
12.4 0.5
23.5
0.9
7.2
0.3
WIRE SIZE = 16-26 AWG
Viewing Area showing
display in TEST mode
Panel Cut-out: 74 x 46 (2.91 x 1.81)

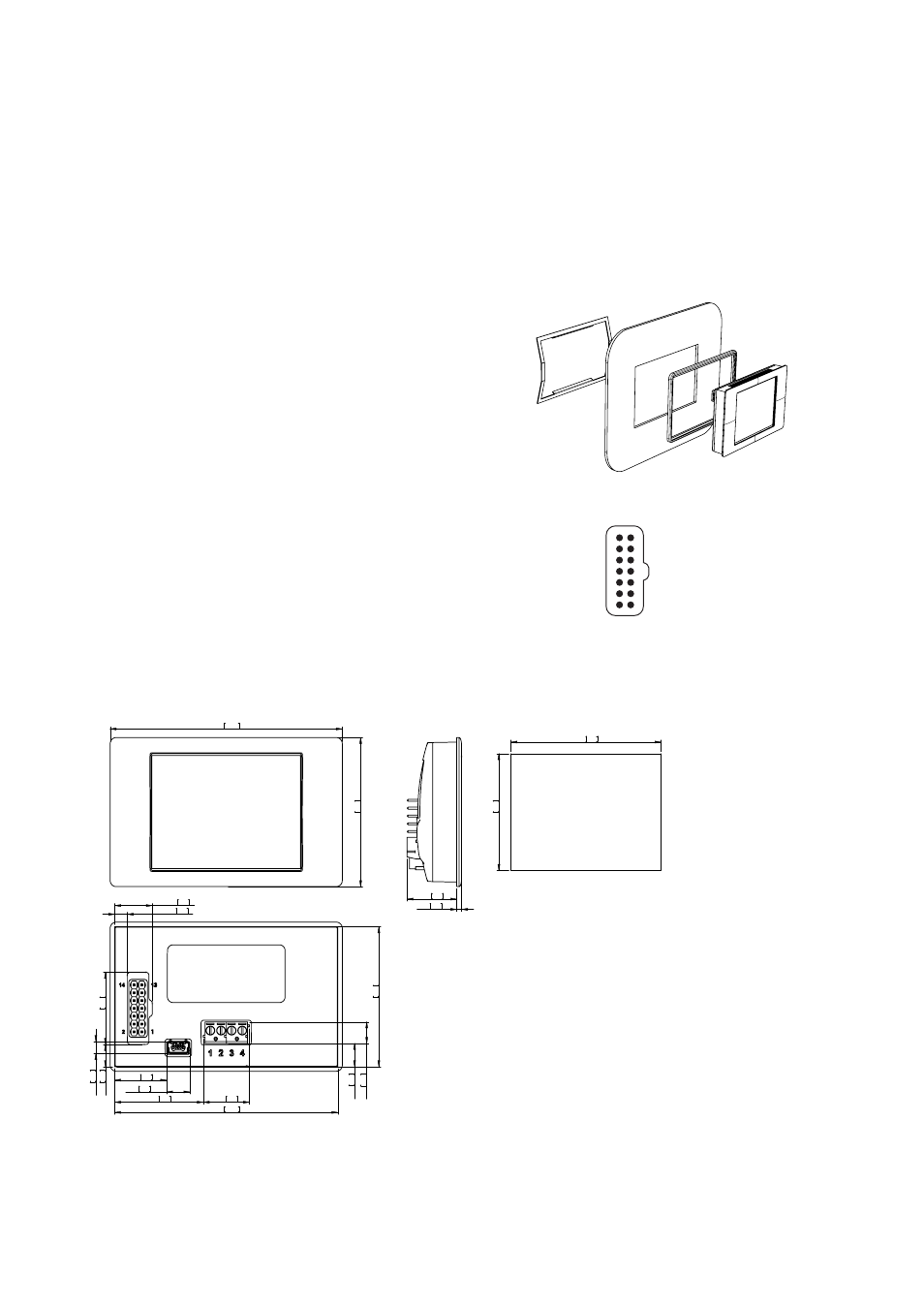

DIMENSIONS
All dimensions in mm (inches)
Advanced Connector
The DIL IDC socket provides an alternative connection method to the
screw-teminals (V+, 0V, IN1 and IN2 are duplicated). It also includes
provision for future expansion using data buses (SPI and I2C) and
alarm ouputs. Some expansion options may require an additional
interface board - Visit www.panelpilot.com for information on which
features are currently supported.
www.lascarelectronics.com
Display
The display is a 2.4” TFT panel, with a resolution of 320 x 240 pixels and a 16-bit color depth. Any graphics that are uploaded to the meter
are automatically converted to this specification. A resistive touchscreen is fitted, for use with supporting applications. Clean the screen with a
damp, soft, lint free cloth.
DAC1
DIGI5
DIGI3
DIGI1
ALM1
0V
IN1
0V
DIGI6
DIGI4
DIGI2
ALM2
V+
IN2
14 13
1 2
MPP- 24-M
Panel Mounting The MPP-24-M can be fitted into panels of
up to 3mm deep. A silicone seal is included to improve fitting
on thin panels, however the maximum panel thickness is reduced
to 2mm when fitted. Panel cut-out is 74 x46mm.NOTE: The display
is NOT protected against moisture or dust.
