Martel Electronics MPP-35-M - Manual (Page 3)

PanelPilot Compatible Smart Graphics Display

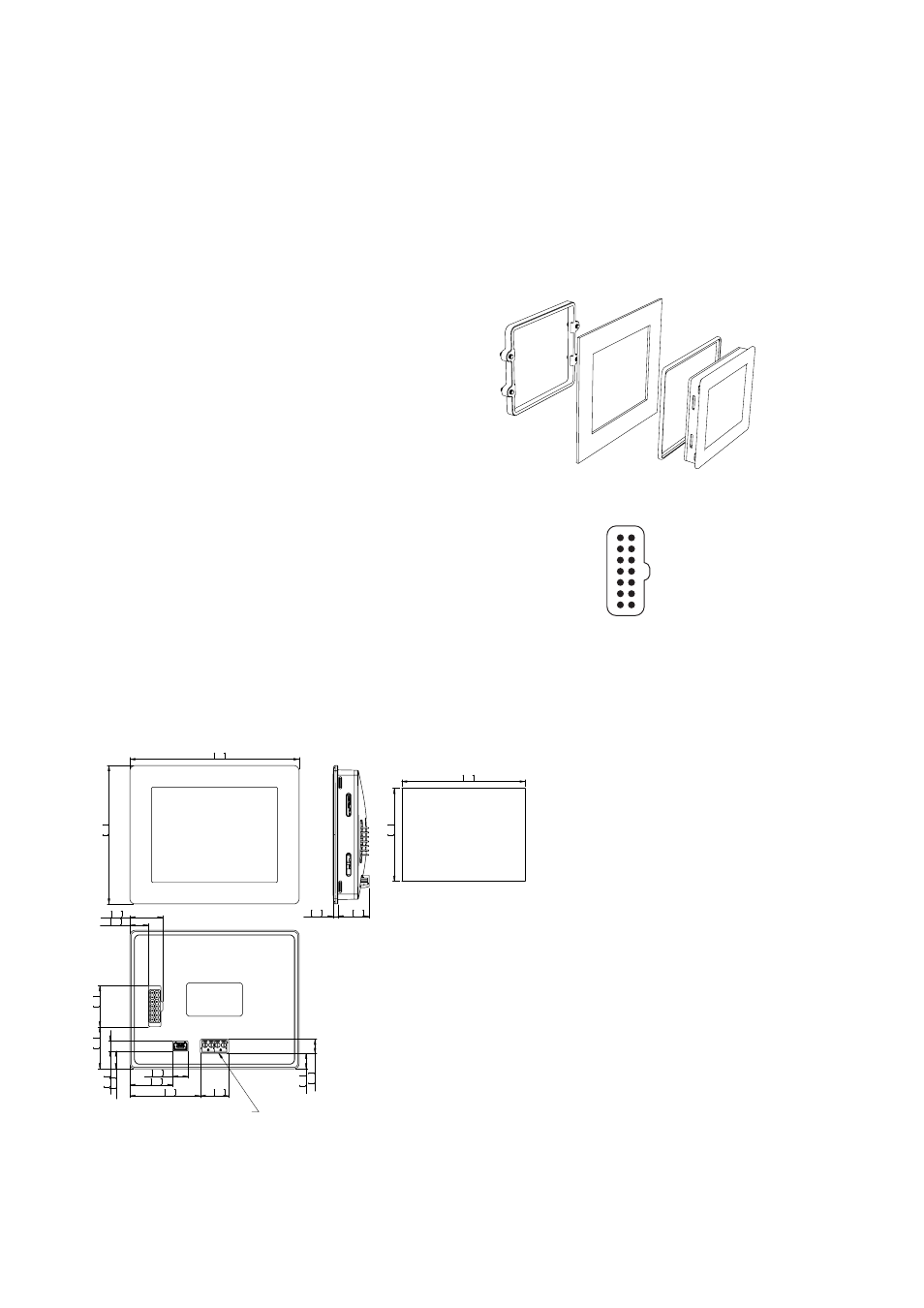

DIMENSIONS
All dimensions in mm (inches)
Advanced Connector
The DIL IDC socket provides an alternative connection method to the
screw-teminals (V+, 0V, IN1 and IN2 are duplicated). It also includes
provision for future expansion using data buses (SPI and I2C) and
alarm ouputs. Some expansion options may require an additional
interface board - Visit www.panelpilot.com for information on which
features are currently supported.
www.lascarelectronics.com
Display
The display is a 3.5” TFT panel, with a resolution of 320 x 240 pixels and a 16-bit color depth. Any graphics that are uploaded to the
meter are automatically converted to this specification. A resistive touchscreen is fitted, for use with supporting applications. Clean the
screen with a damp, soft, lint free cloth.
DAC1
DIGI5
DIGI3
DIGI1
ALM1
0V
IN1
0V
DIGI6
DIGI4
DIGI2
ALM2
V+
IN2
14 13
1 2
70.1 2.8
52.7
2.1
96.0 3.8
78.5
3.1
17.7 0.7 2.7 0.1 18.7 0.7
10.5 0.4
23.3
0.9
23.8
0.9
10.0
0.4
8.7
0.3
5.7
0.2
8.0
0.3 24.3 1.0
8.7 0.3
16.2 0.6 39.9 1.6
TERMINALS USE
WIRE SIZE = 16-26 AWG
Viewing Area
Panel Cut-out: 92 x 75 (3.62 x 2.95)
MPP- 35-M
Panel Mounting The MPP 35-M can be fitted into
panels 1mm-3mm deep. A silicone seal is included
to improve fitting onthin panels.Panel cut-out is 92mm
x 74mm. NOTE: The display is NOT protected against
moisture or dust.
