FEATURES
• 3.5” colour TFT screen
• Use PanelPilot software, to setup and customise
the display. Compatible with Windows XP, 2000, Vista and 7
• Multiple voltmeter configurations included free
• Programmable via the USB interface
• Simple panel mounting solution
• Wide operating voltage of 4V – 30V d.c.
• Measures voltage from 0 – 40V d.c.
• Digital hold
ORDERING INFORMATION
Standard Display
(Panel meter, fixing kit,
quick start guide)
www.lascarelectronics.com
0 (+32)
4
0
35
Accuracy
Linearity
Sample rate
Operating temperature range
Supply voltage
Measurement voltage (single ended only)**
Supply current ***
0.05
3
0.1
±1*
+40 (+104)
30
40
190
%
Count
Samples / second
°C (°F)
V d.c.
V d.c.
mA
Minimum Unit Typical Maximum
SPECIFICATIONS
Using the PanelPilot software (available for Windows XP, 2000, Vista and 7),
users are able to choose from an ever-increasing number of configurations (six voltmeters at launch)
which can then be customised to their needs.
Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw terminals to connect
the inputs.
PanelPilot Compatible
Smart Graphics Display
USB Cable
(Type A to mini-B)
CABLE USB A-MF
MPP- 35-M
MPP-3 5-M

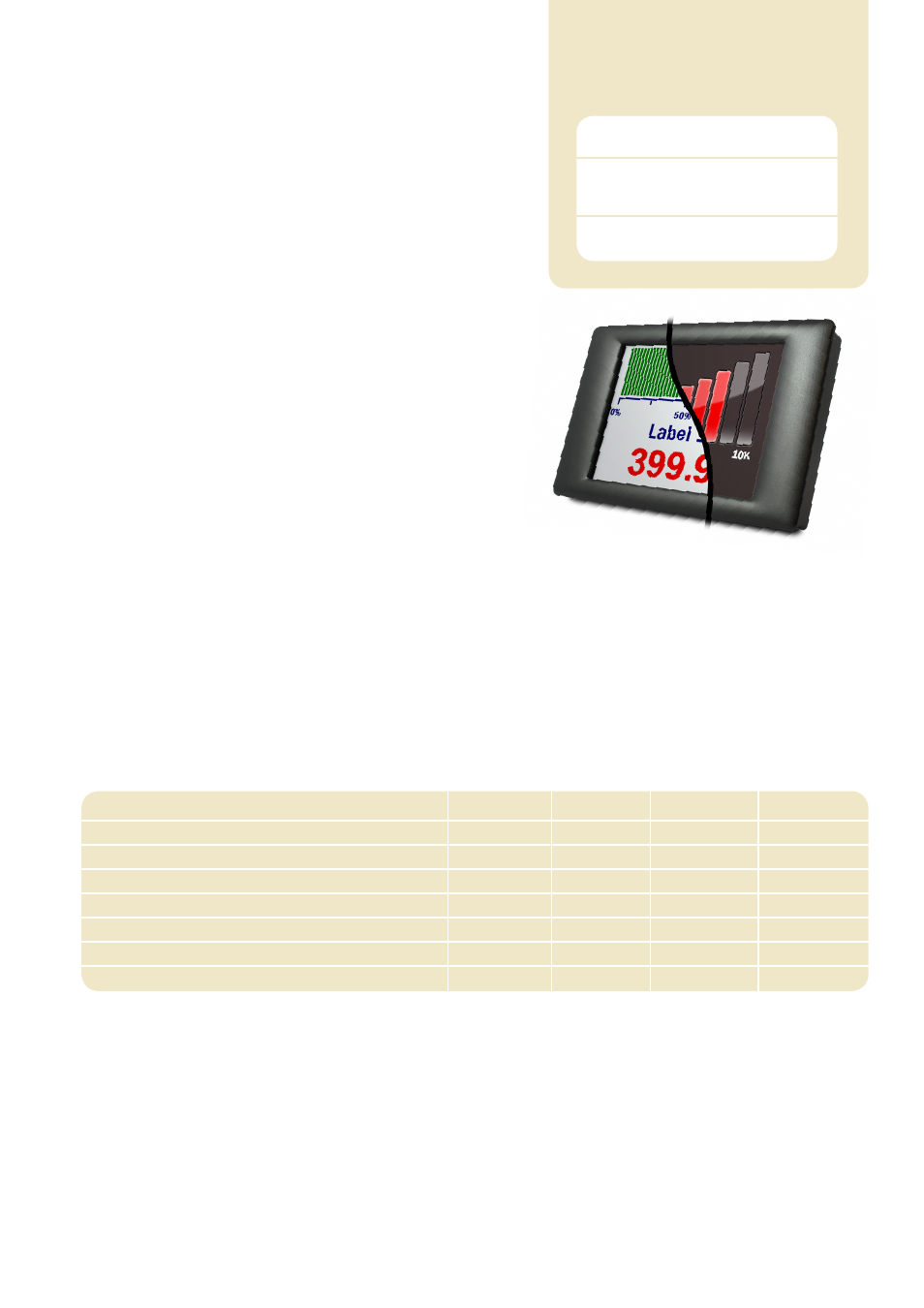

The MPP-35-M is a PanelPilot Compatible graphics display with a 320 x 240
pixel (QVGA) colour display and USB programming interface.
Colours, text labels, splash screen and input voltage scaling can all be customised by the user through the software and then
uploaded to the MPP-35-M through the USB connecton.
*Depending on user calibration settings
**The MPP-35-M uses a programmable gain amplifier. There are 8 different voltage ranges, to optimise the resolution. See page 2 for details.
***Voltage dependent. See graph on Page 2.
MARTEL ELECTRONICS
Phone: 800-821-0023
[email protected]
Version: 4.12.2012
