PRODUCT DESCRIPTION
The SP 200 features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user
selectable.
LED backlighting ensures excellent readability under low light conditions. The module is
easily fitted into the panel, using the fixing clip provided. The module's
The SP 200 features a negative rail generator which enables the meter to measure a signal referenced to its
own power supply GND.
low cost means it will suit high and low volume
applications. The design of the panel meter's housing ensures splash proofing using the supplied seal.
FEATURES
•
• 200mV d.c. Full Scale Reading
• 350 A @ +5V d.c. Power Supply
•
•
• 9.75mm (0.38") Digit Height
Programmable Decimal Points
LED Backlighting
• Low Battery Warning
• Splash Proof
µ
Auto-zero and Auto-polarity
TYPICAL APPLICATIONS
• Precision Instrumentation Systems
• Power Supply Monitoring
• Test Boxes
• Panel-Mount Indication
• Low Power Voltage Measurement
ORDERING INFORMATION
Stock Number
Standard Meter SP 200
LASCAR ELECTRONICS LTD.
MODULE HOUSE
WHITEPARISH
WILTSHIRE
SP5 2SJ
UK
TEL: +44 (1794) 884567
FAX: +44 (1794) 884616
E-mail: [email protected]
LASCAR ELECTRONICS INC.
PO BOX 50727
PALO ALTO
CA 94303-0727
USA
TEL: +1 (650) 838 9027
FAX: +1 (650) 833 5432
E-mail: [email protected] LASCAR ELECTRONICS (HK) LIMITED
FLAT C, 5/FL., LUCKY FTY. BLDG.
63-65 HUNG TO ROAD
KWUN TONG
KOWLOON
HONG KONG
TEL: +852 2797 3219
FAX: +852 2343 6187
E-mail: [email protected]

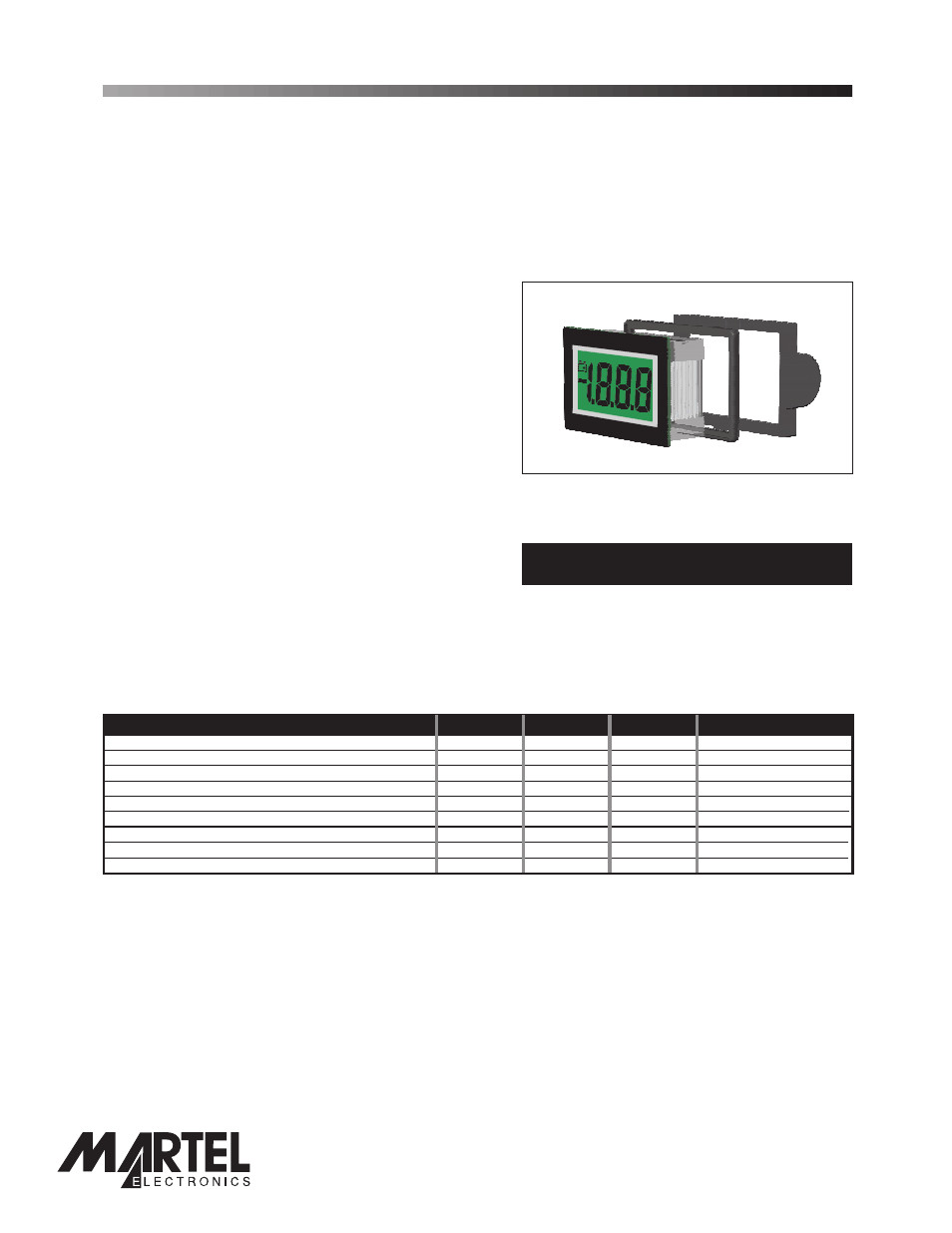

SP 200
3½ Digit Backlit LCD Voltmeter Module
SAFETY
To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module’s pins must not exceed
60Vdc. The user must ensure that the incorporation of the panel meter into the user’s equipment conforms to the
relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and
Laboratory Use).
ELECTRICAL SPECIFICATIONS
Specification Min. Typ. Max. Unit
Accuracy (overall error) * 0.1 % (±1 count)
Linearity ±1 count
Sample rate 2.5 samples/sec
Operating temperature range 0 50 °C
Temperature stability 100 ppm/°C
Supply voltage 3.5 5 5.25 V
Supply current 350 A
Backlight current @ 5V d.c. mA
Input leakage current (Vin = 0V) 1 10 pA
* To ensure maximum accuracy, re-calibrate periodically.
µ
40 80
