KYORITSU 6201 User Manual
Page 18
―
16
―
6.2 Double Insulation Test
The Class 2 appliances have the indication of "DOUBLE INSULATION"
or the symbol of
F
. Double insulation test is to check the insulation
resistance of the appliances is within the range defined in the standards.
(1) Power on the DUT
(2) Connect Test Lead M-7129 to Rpe terminal and clip the metal part
of DUT with alligator clip.
(3) Connect the mains plug of Safety class 2 DUT to test socket on the
instrument.
(4) Press the
START
switch when above preparation is completed.
(5) Measure the insulation resistance.
When it passes(1M
Ω
or more), lights up in green and
the test is completed. The measured value, which is passed the test, will be
displayed on the LCD .

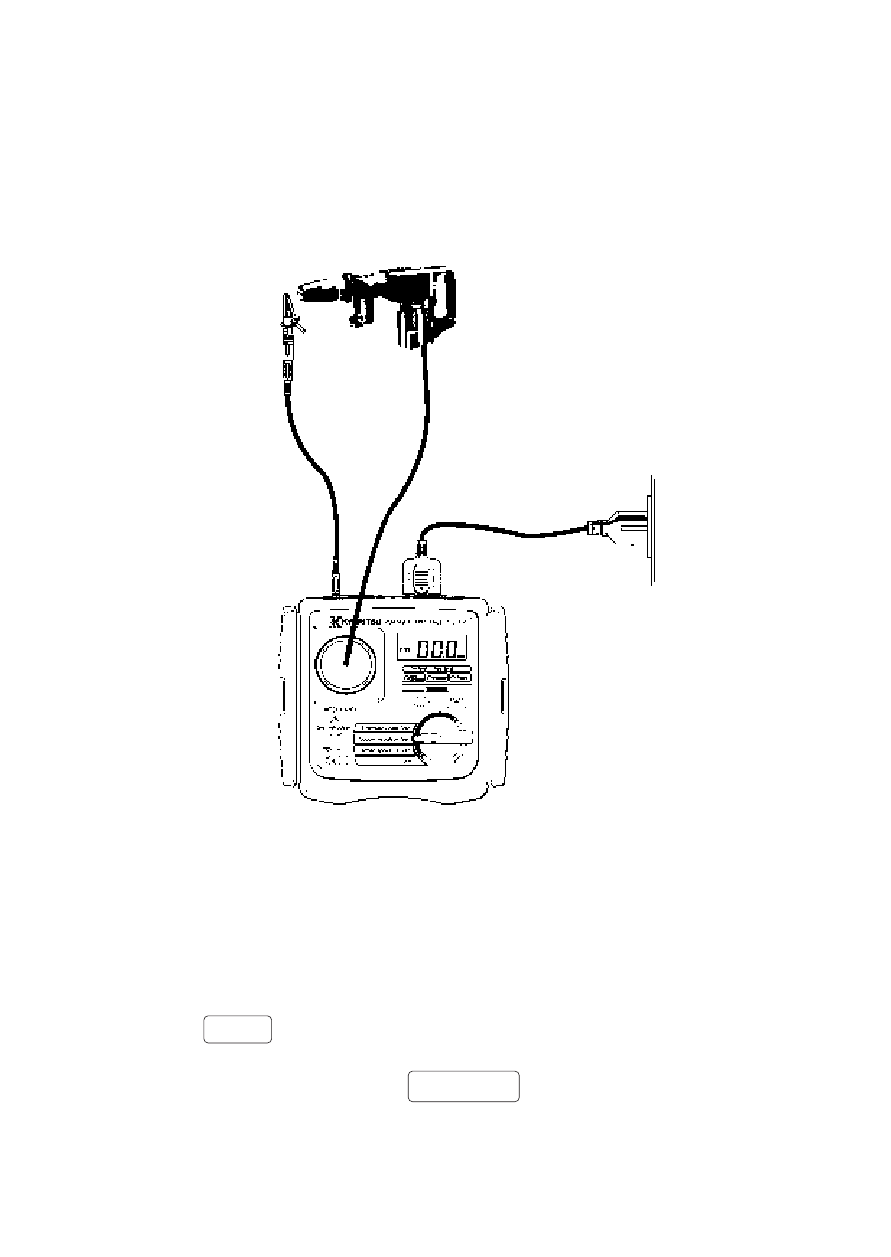

Fig.13
○
Insulation
