30
-EN

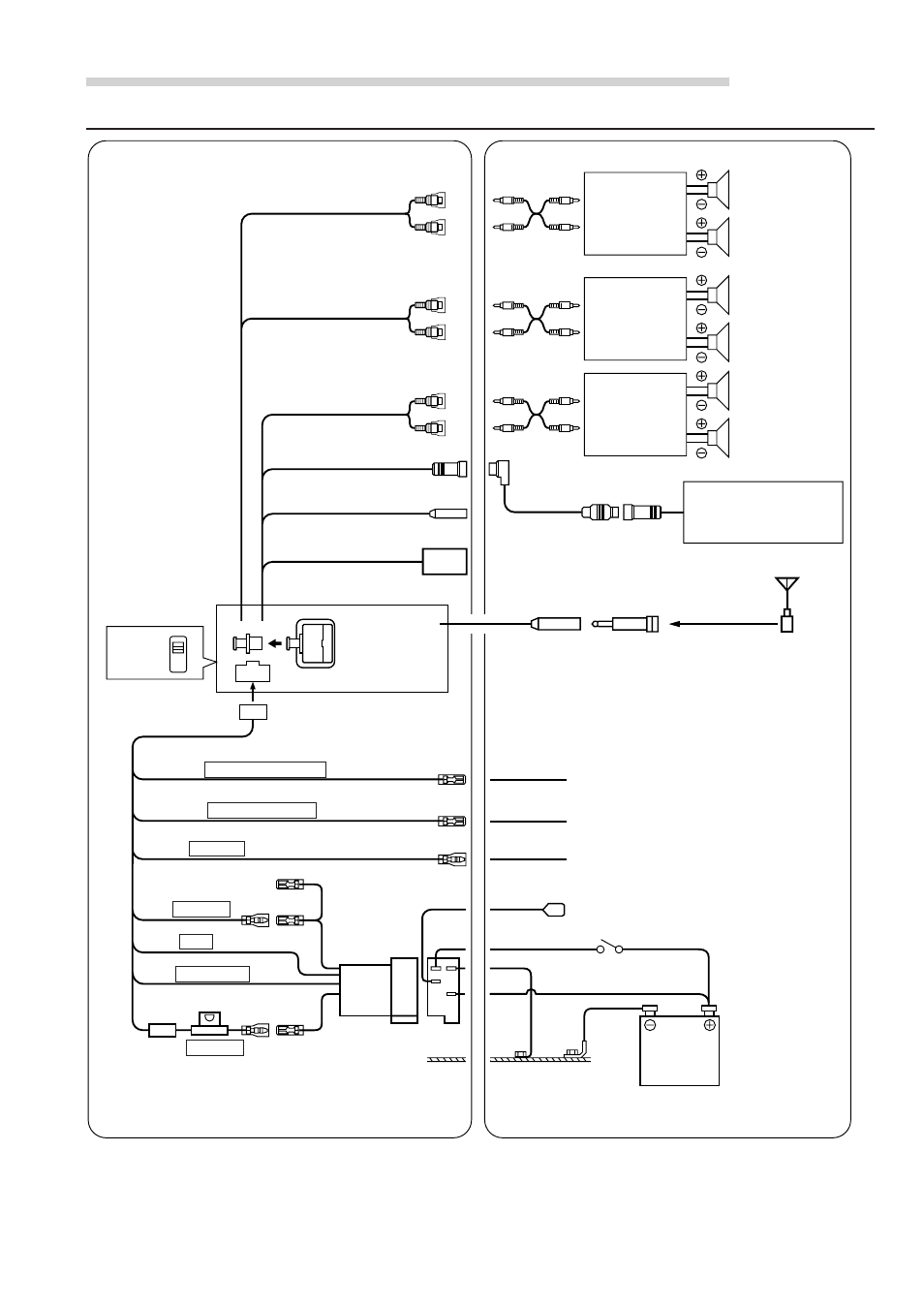

Connection
Installation and Connections
For details on how to set the Subwoofer to ON/OFF, see "Subwoofer On and Off" on page 7.
Speakers
Front Right
Front Left
Rear Left
To vehicle phone
ISO Antenna
Convertor Plug
Amplifier
Amplifier
Amplifier Subwoofers
Rear Right
CD Changer
(Ai-NET)
(Sold Separately)
Antenna
ISO Antenna Plug
Ignition Key
To power antenna
To the instrument cluster
illumination lead
To amplifier or equalizer
Battery
(Pink/Black) AUDIO INTERRUPT IN (Pink/Black) AUDIO INTERRUPT IN
(Blue/White) REMOTE TURN-ON
(Orange) DIMMER
(Red) IGNITION
(Black) GND
(Blue) POWER ANT
(Yellow) BATTERY
NORM
EQ/DIV
!
9
6
5
4
3
2
7
8
1
,
+
-
-
-
(
&
%
$
#
"
)
~
