KROHNE AQUAFLUX EN - Manual (Page 6)

Series No.
Primary head
constant
Meter size
DN in mm and
inch equivalent
AQUAFLUX F / 6
TAG: 1234567-89
ISO KL. H IP 67
Altometer
A 97 00000
GK: 1.918
DN50/2”-H-HC
PN 40 BAR
6

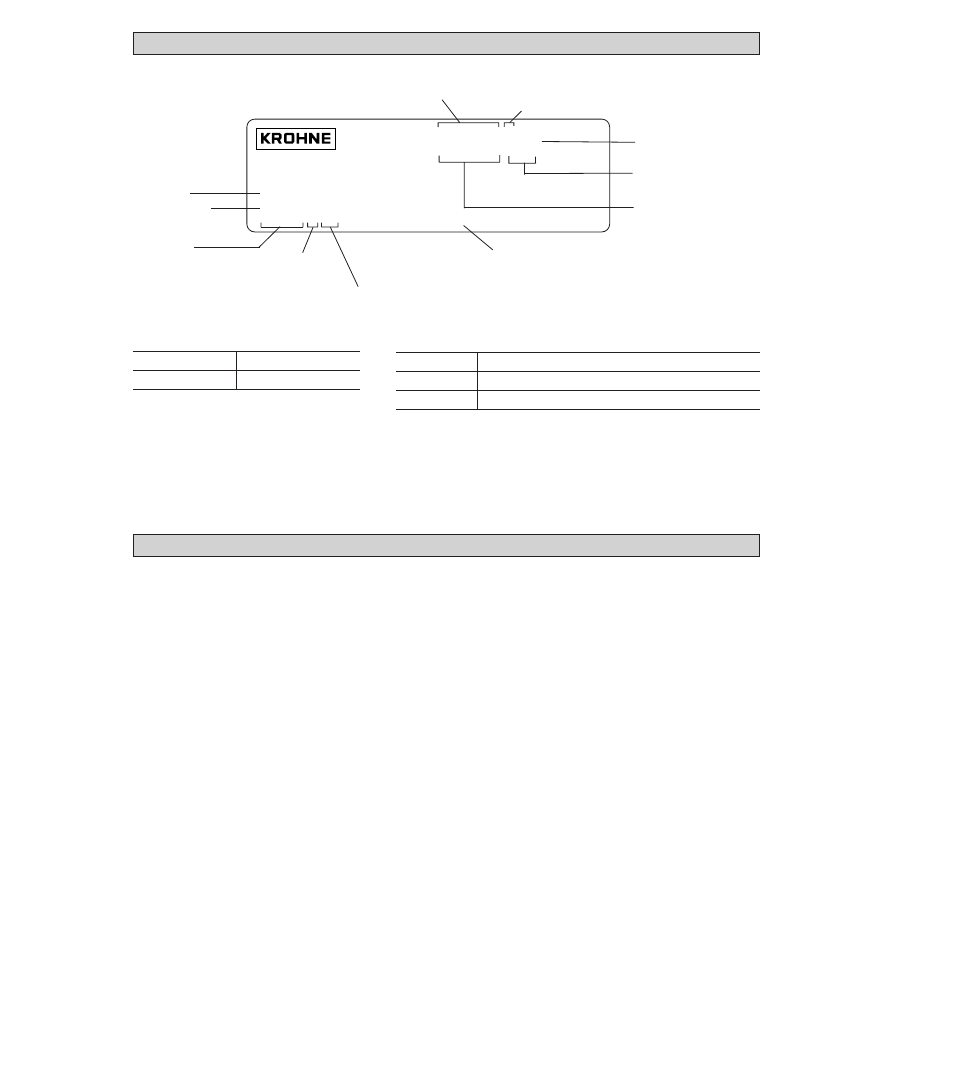

3 Instrument nameplate
AQUAFLUX F
separate primary head
Holland Tag No.
Protection category
to IEC 529 / EN 60529
Insulation class
of field coils
Type designation Magnetic field frequency
(here 1/6 of power frequency)
Liner
Teflon
® PFA
Electrode material
Hastelloy C4
Flange pressure rating
or flange class
Teflon ® is a registered trademark of Du Pont
Instrument nameplate for compact flowmeters
see installation and operating instructions for the signal converter.
4 Flowmeter versions
AQUAFLUX F Separate primary head (F) , electrically connected to the signal
converter by signal and field current cables.
AQUAFLUX 010 K, Compact flowmeter (K), IFC 010 K or IFC 020 K signal converter mounted
AQUAFLUX 020 K
direct on the primary head.
AQUAFLUX 080 K Compact flowmeter (K), IFC 090 K signal converter mounted direct
on the primary head.
Liner materials
H
Hard rubber
T Teflon ® -PTFE
Electrode materials
HC
Hastelloy C4
TI Titanium
V4A Stainless steel 1.4571 / SS 316-Ti
