TECHNICAL DATA
38
DK46 - DK800
www.krohne.com 05/2011 - 4000302403 MA DK46-800-R03-en

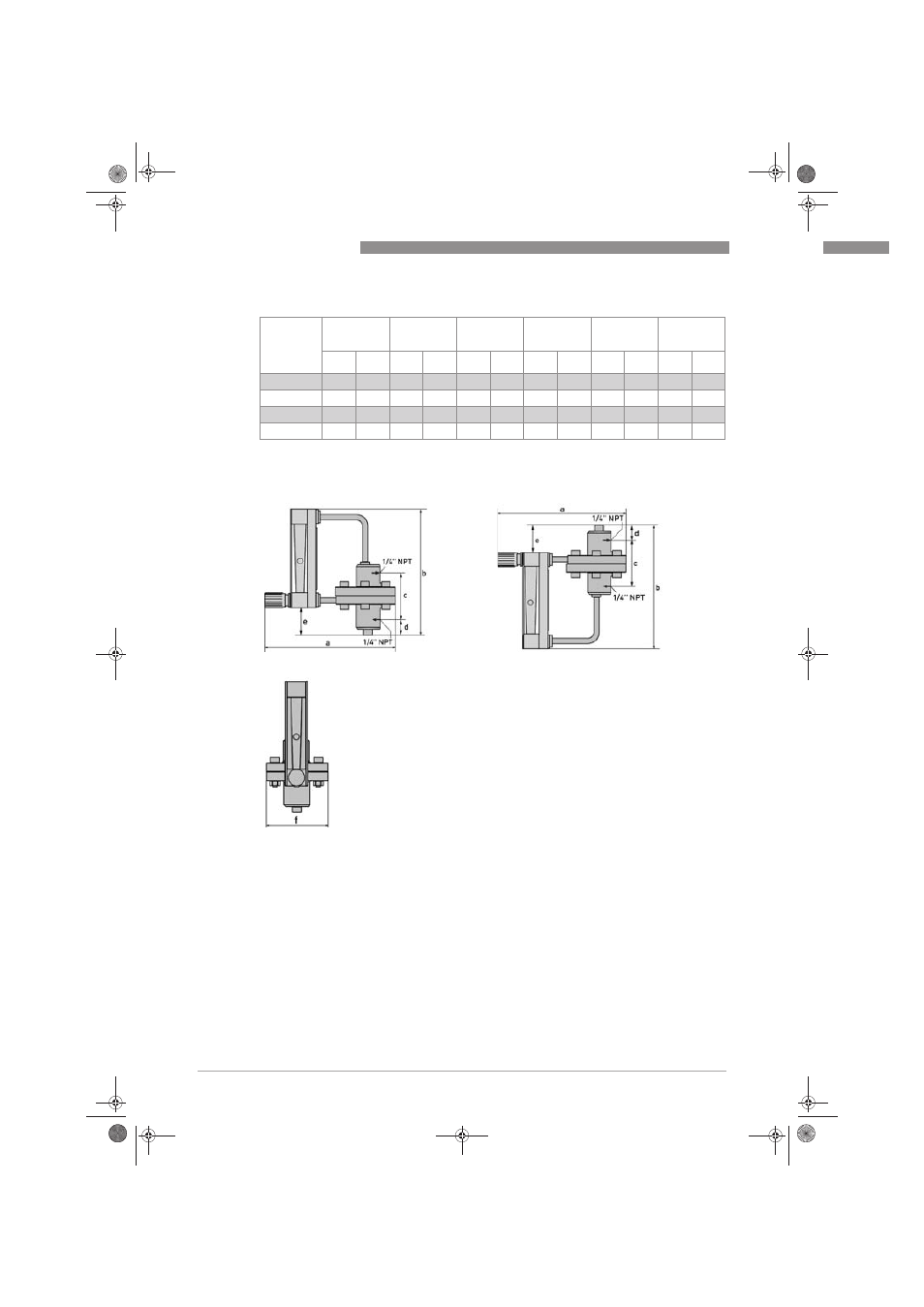

Dimensions with the differential pressure regulator
a
approx.
b c d e f
approx.
[mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["]
DK46 210 8.27 163 6.42 70 2.76 19 0.75 39 1.54 90 3.55
DK47 210 8.27 233 9.18 70 2.76 19 0.75 39 1.54 90 3.55
DK48 210 8.27 383 15.1 70 2.76 19 0.75 39 1.54 90 3.55
DK800 210 8.27 183 7.21 70 2.76 19 0.75 39 1.54 90 3.55
1 DK with inlet pressure regulator 2 DK with outlet pressure regulator
