With each in/output module a certain in/output function can be realised, see following overview:
In/Output
module
Function
Electrical data
P-SA
passive current output
Current:
4..20 mA
Working voltage:
8.. 30 V DC
Voltage drop:
8 V at 4 mA
FA-ST
passive pulse/status output or
control input (selectable through
software options)
Working voltage:
6..30 V DC
Working current:
< 110 mA
Voltage drop
in ON-state:
< 2 V at 110 mA
Leakage current
in OFF-state:
< 900
µ
A at 30 V
Control input
Input voltage LOW level:
< 3 V
Input voltage HIGH level:
> 7 V
Frequency range:
0.. 12 KHz
DC-I
intrinsically safe voltage source,
to be used in combination with
modules P-SA and FA-ST
Voltage:
20 V DC
Maximum current:
30 mA
Internal resistance:
260
Ω
F-PA
passive Fieldbus interface
conform FISCO model
The functionality of the terminals for signal in/outputs is depending on the version of the
IFC090 i-EEx electronic-unit installed. Each version is equipped with a different pair of in/output
modules. Following versions are possible:
IFC090 i-EEx version
Order no.
MODIS module
Terminal designation
Ex-i1
2.11582.01
P-SA
FA-ST
I
⊥
I
B1
B1
⊥
Ex-i2
2.11582.03
P-SA
F-PA
I
⊥
I
D
D
⊥
Ex-i3
2.11582.02
P-SA
DC-I
I+
I
Ex-i4
2.11582.04
FA-ST
F-PA
B1
B1
⊥
D
D
⊥
Ex-i5
2.11582.05
FA-ST
DC-I
B1+
B1
Ex-i6
2.11582.06
FA-ST
FA-ST
B2
B2
⊥
B1
B1
⊥

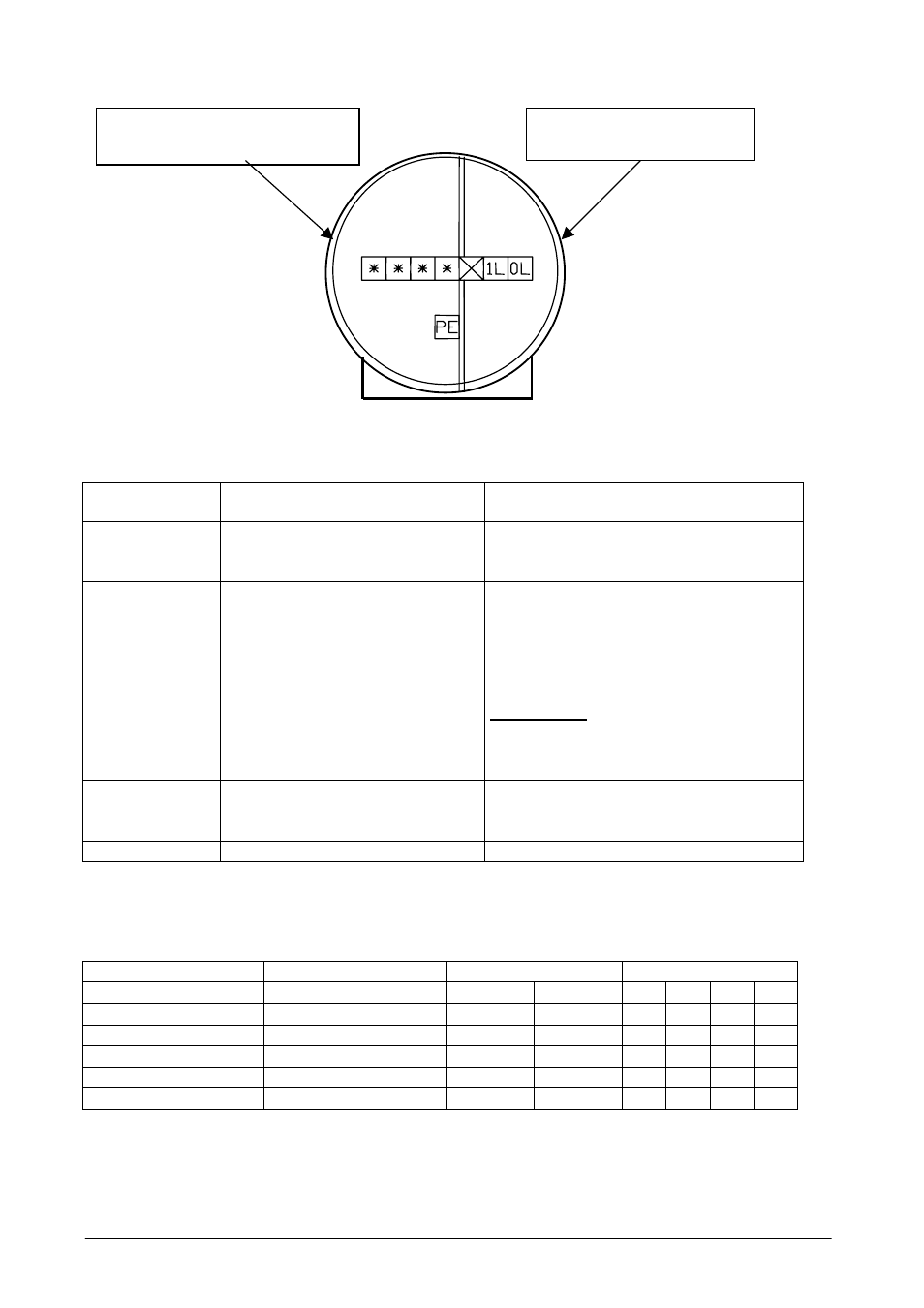

The non-intrinsically safe terminals for the power supply 1L
and 0L
have to be wired conform
the relevant standard code of practice for electrical apparatus for use in potentially explosive
Connection power supply
(non-intrinsically safe)
Connection of signal-in/outputs
(intrinsically safe)
