INSTALLATION
3
13
OPTITEMP TT 11 C/R
www.krohne.com 05/2011 - 4000752902 - MA OPTITEMP TT 11 C/R R02 en
The in-head transmitter is intended for installation in DIN B connection heads or larger. The
large Ø7 mm / 0.28" center hole facilitates the electrical connection of the measurement sensor
and the installation (for detailed information refer to the chapter "Dimensions and weights"). The
following drawing shows the installation of the in-head transmitter with the help of the
connection head installation kit:
INFORMATION!
The connection head installation kit does not belong to the standard scope of delivery of the
transmitter. All devices which are necessary to mount the transmitter on a measuring insert of
the manufacturer belong to the scope of delivery of the measuring insert.

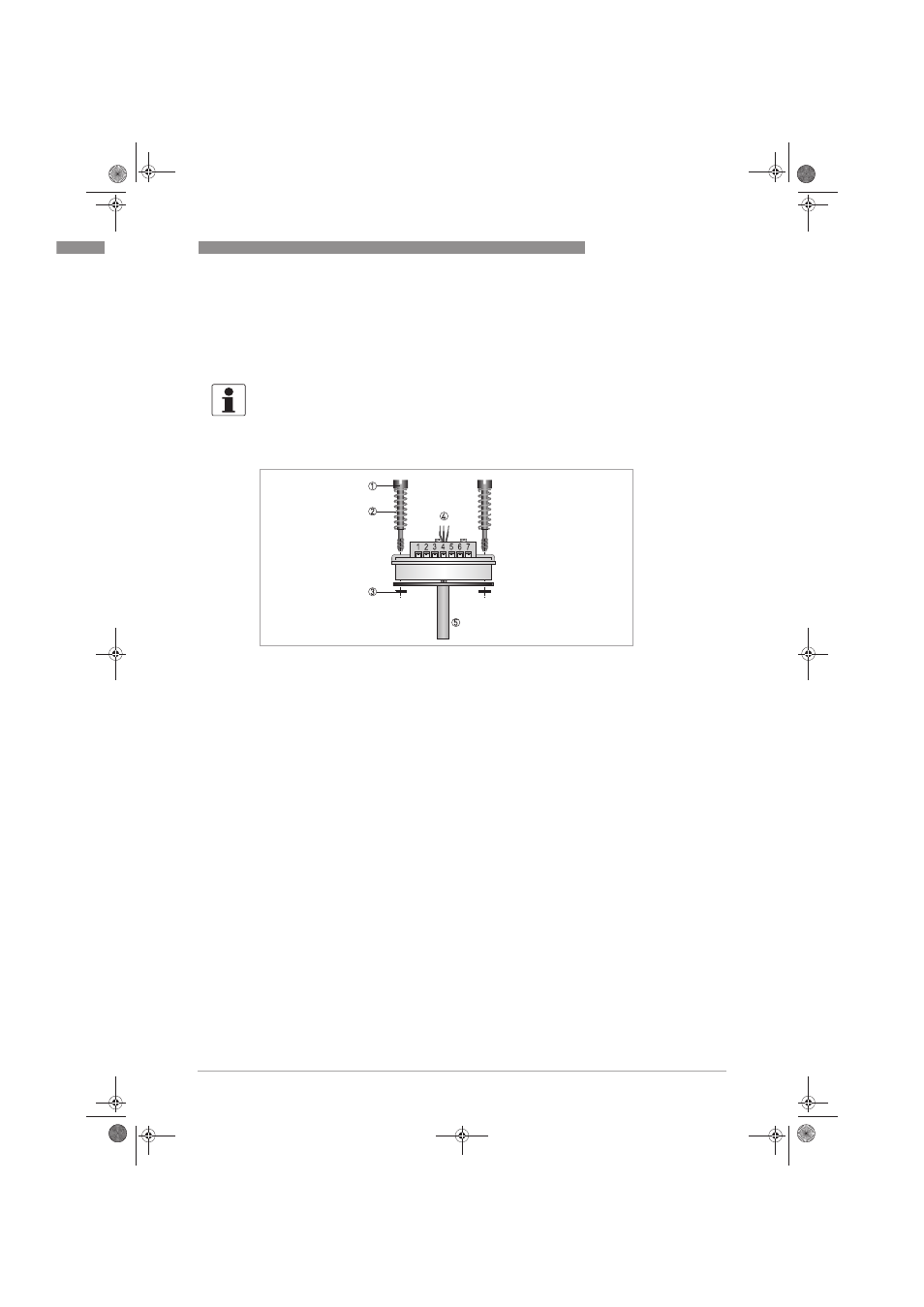

Figure 3-1: Connection head installation kit
1 M4 screw
2 Spring
3 Lock washer
4 Wires of measuring insert
5 Sheath
