KROHNE OPTISWITCH 4000C Transistor EN - Manual (Page 15)

1
4
5
6
7
8
9
10
2 3

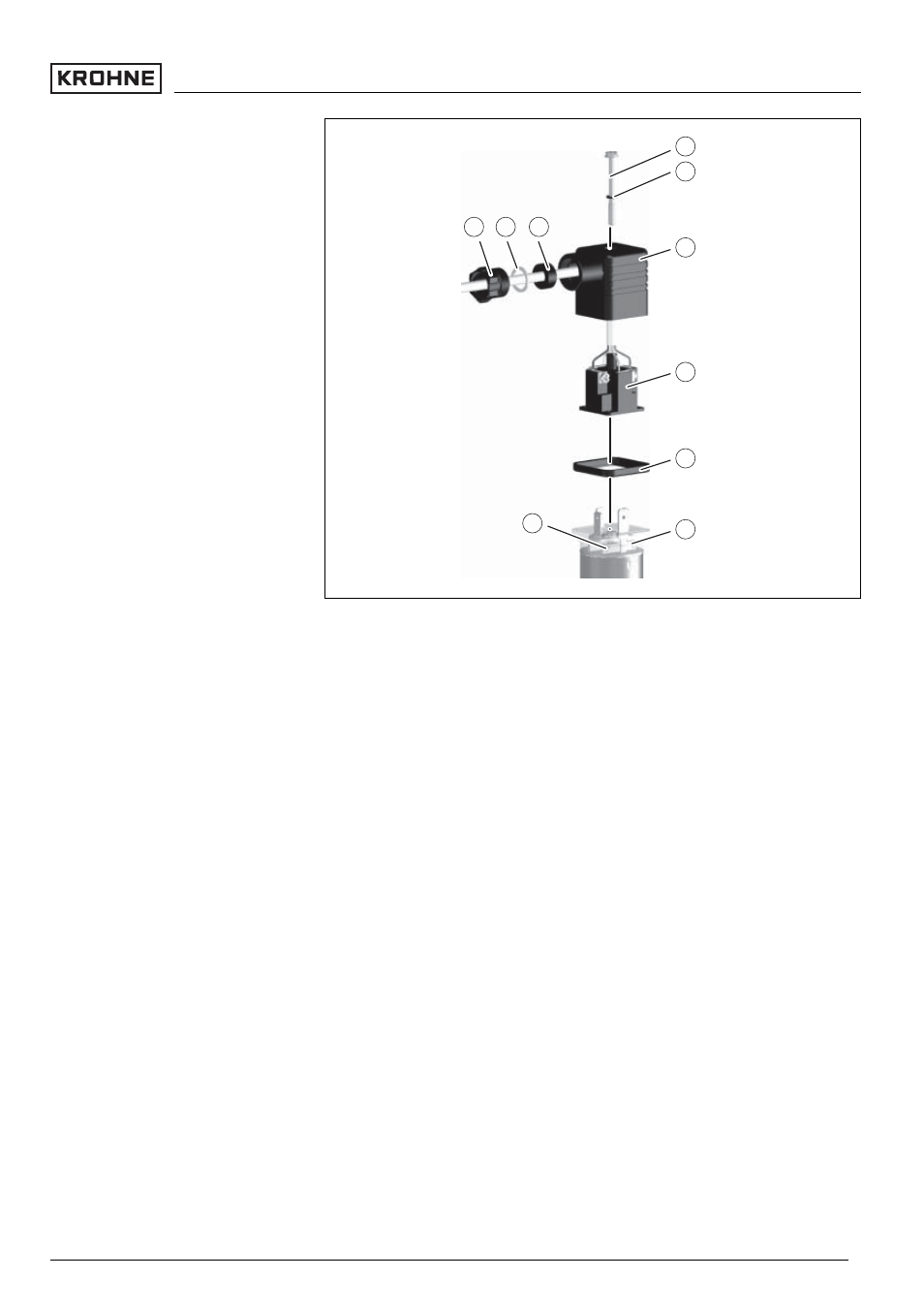

Fig. 8: Connection, valve plug DIN 43650
1 Pressure screw
2 Pressure disk
3 Seal ring
4 Fixing screw
5 Seal washer
6 Plug housing
7 Plug insert
8 Profile seal
9 Control lamp
10 OPTISWITCH 4000 C
Valve plug - DIN 43650 - IDC method of termination
For this plug version you can use standard cable with round
wire cross-section. The inner cables must not be dismantled.
The plug connects the cables automatically when screwing
them in. Cable diameter 5.5 … 8.0 mm, protection IP 67.
OPTISWITCH 4000 C - with transistor output 15
Connecting to voltage supply
31763
-EN
-060830
