5.2 Wiring plan
1 2 3

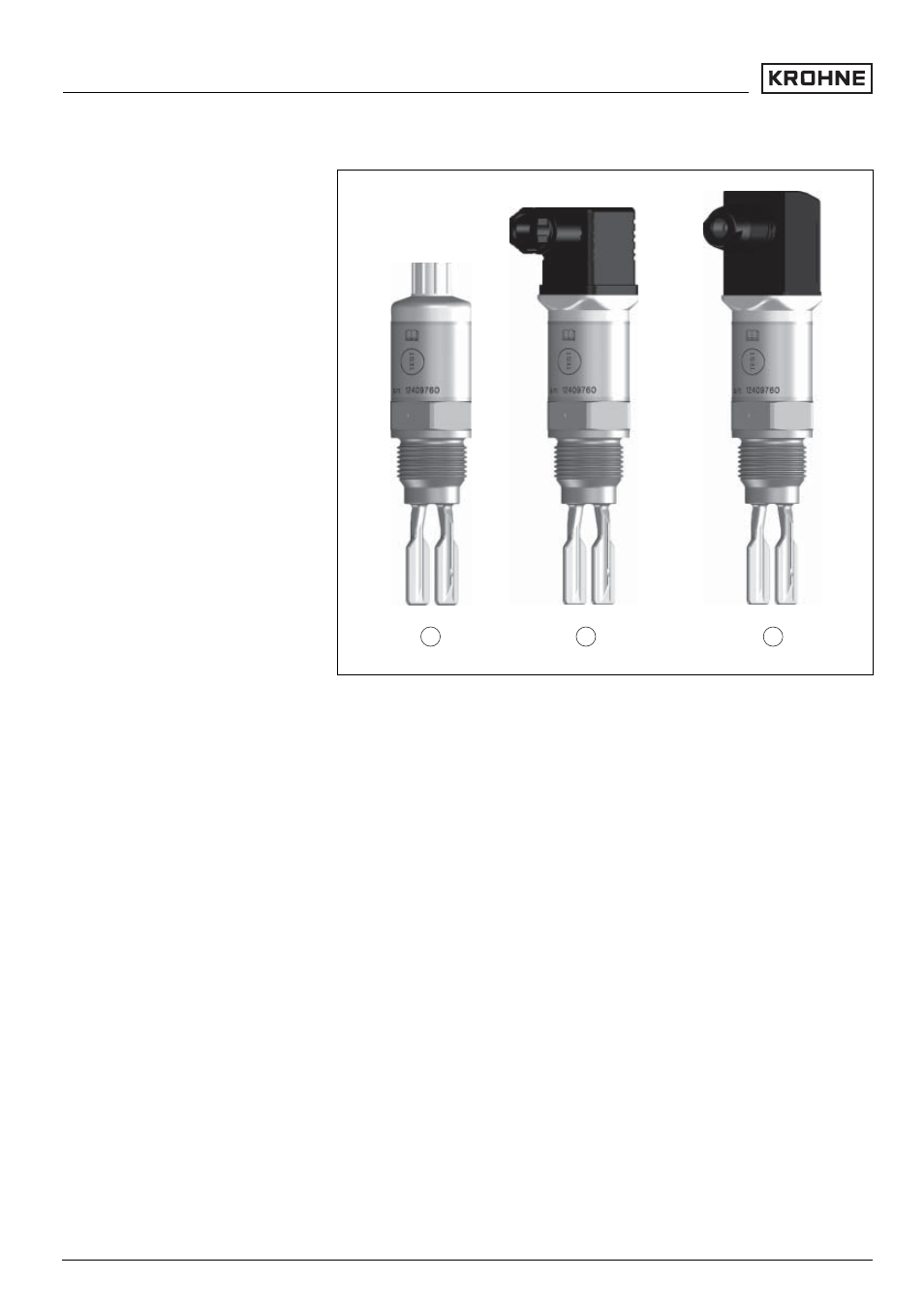

Fig. 7: Overview of the connection versions
1 M12x1 plug connection
2 Valve plug DIN 43650
3 Valve plug DIN 43650 with IDC method of termination
M12x1 plug connection
This plug connection requires a preconfectioned cable with
plug. Protection IP 66/IP 67.
Valve plug DIN 43650
For this plug version, standard cable with round wire cross-
section can be used. Cable diameter 4.5 … 7 mm, protection
IP 65.
Housing overview
Plug versions
14 OPTISWITCH 4000 C - with transistor output
Connecting to voltage supply
