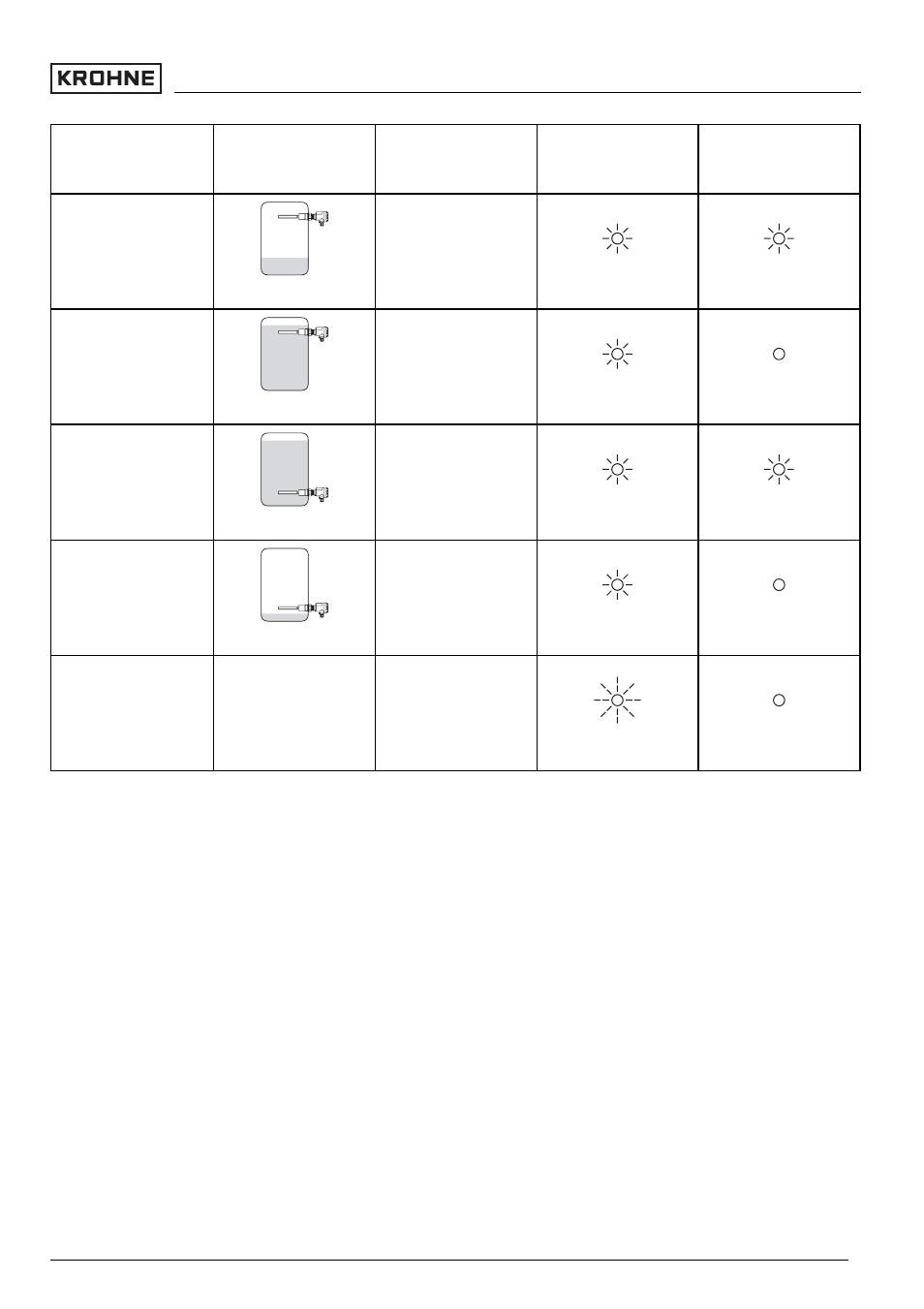

Mode on the signal

conditioning instru-

ment

Level

Signal current -

Sensor

Signal lamp - sensor Signal lamp - sig-

nal conditioning

instrument

Mode A

Overfill protection

approx. 8 mA

Green

Mode A

Overfill protection

approx. 16 mA

red

Mode B

Dry run protection

approx. 16 mA

red

Mode B

Dry run protection

approx. 8 mA

Green

Fault signal

(mode A/B)

any

<2.3 mA

flashes red

OPTISWITCH 3000 C - with two-wire output

19

Set up

30061

-EN

-060830
