INSTALLATION
2
13
OPTIWAVE 6300 C
www.krohne.com 03/2014 - 4000331505 - QS OPTIWAVE 6300 R05 en
• Make sure the flange on the nozzle is level.
• Make sure that you use the applicable gasket for the flange dimensions and the process.
• Align the gasket correctly on the flange facing of the nozzle.
• Lower the antenna carefully into the silo.
• Tighten the flange bolts.
i Refer to local rules and regulations for the correct torque to apply to the bolts.
For more data, refer to the handbook.
2.9.2 How to install a device with a threaded connection
Equipment needed:
• Device
• Gasket for G 1½ connection (not supplied)
• 50 mm / 2¨ wrench (not supplied)
• Make sure the silo connection is level.
• Make sure that you use the applicable gasket for the connection dimensions and the process.
• Align the gasket correctly.
• Lower the antenna carefully into the silo.
• Turn the threaded connection on the housing to attach the device to the process connection.
• Tighten the connection.
i Refer to local rules and regulations for the correct torque to apply to the connection.
For more data, refer to the handbook.
Requirements for threaded connections

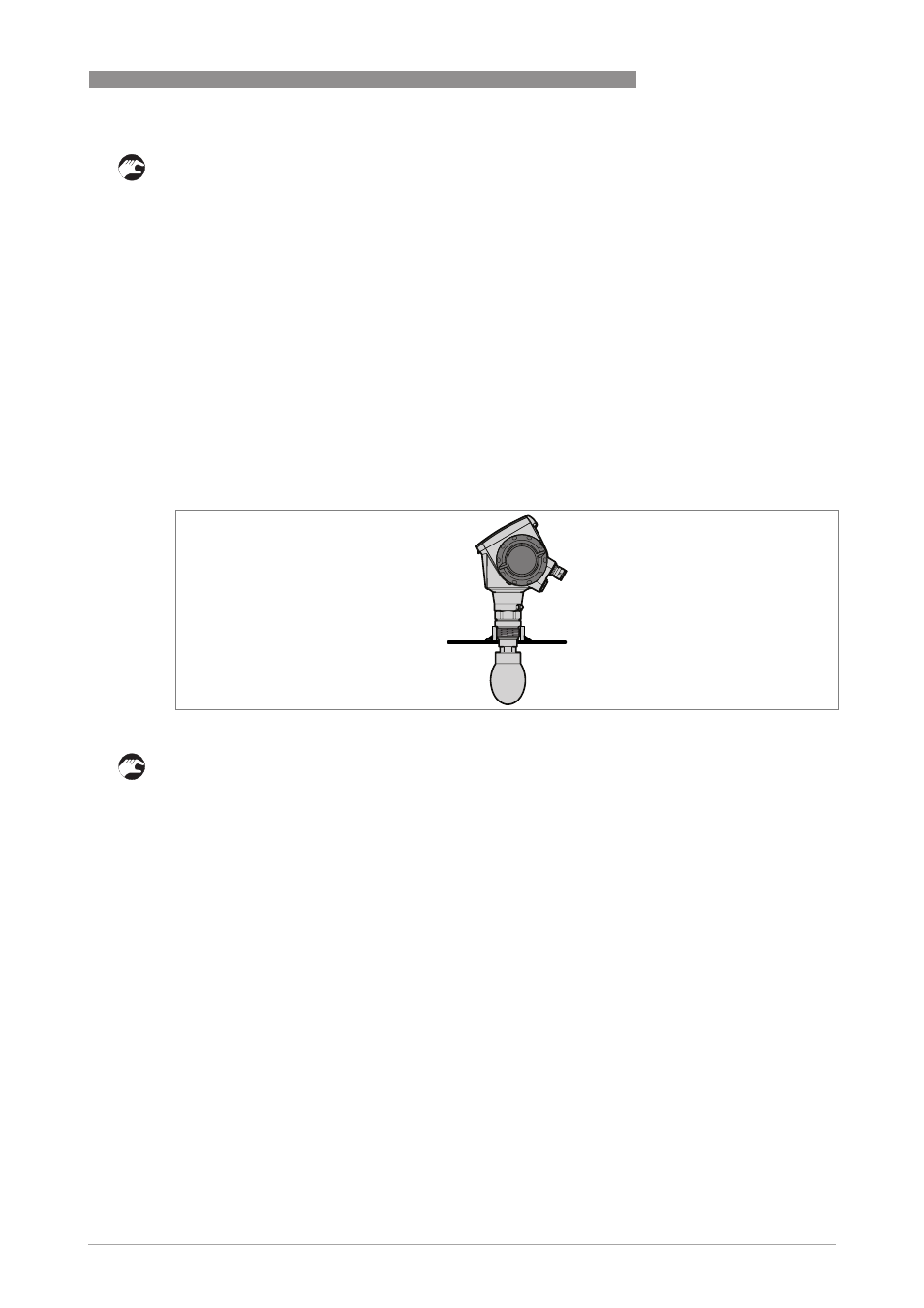

Figure 2-13: Threaded connection
