4. OPERATING INSTRUCTIONS
4.1. INSTRUMENT DESCRIPTION
1
2
3
4
5
6
7
8
9

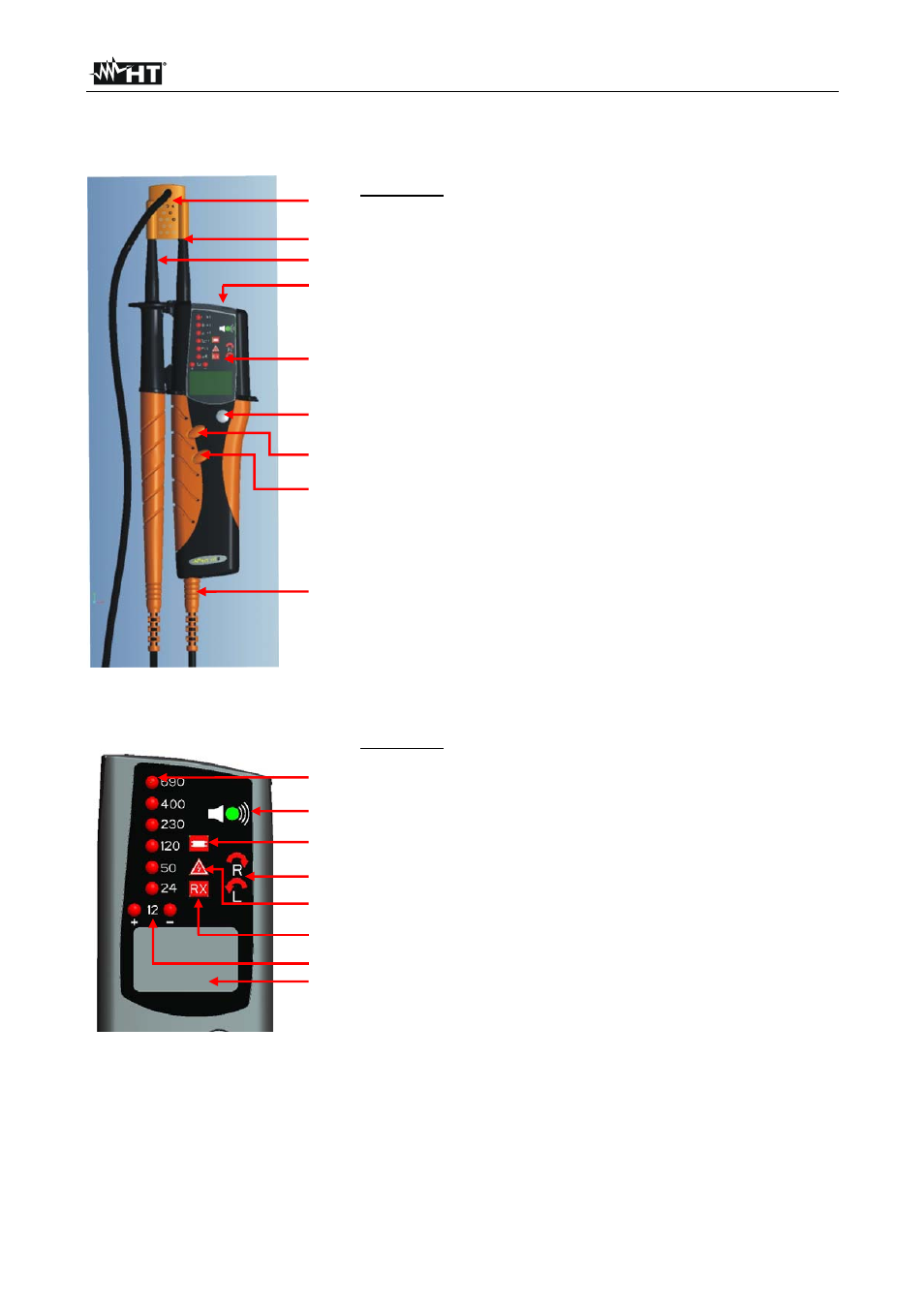

CAPTION:
1. Protective cap
2. Fixed lead L2
3. Mobile lead L1
4. Torch light
5. Leds and Display
6. Electrode for phase detection, phase rotation,
continuity function
7. “Torch” button
8. “Lamp test” button (HT9) / ON/Reset button (HT6,
HT8)
9. Banana connector
Fig. : 1: Instrument description
1
2
3
4
5
6
7
8
CAPTION:
1. Voltage indication leds
2. Buzzer hole for acoustic signal
3. Indication led Lamp test
4. Indication led Phase sequence
5. Indication led Phase detection / Dangerous voltage
6. Indication led Continuity test
7. Indication led 12V and positive or negative polarity
8. LCD display with voltage, polarity and flat battery
indication
Fig. 2: Led and display description
