3.18 WARRANTY
Detcon inc., as manufacturer, warrants under intended normal use each new Model 410A rack
control enclosure to be free from defects in material and workmanship for a period of one year.
The warranty period begins from the date of shipment to the original purchaser and ends one
year thereafter. All warranties and service policies are FOB the Detcon Inc. facility located in The
Woodlands, Texas.

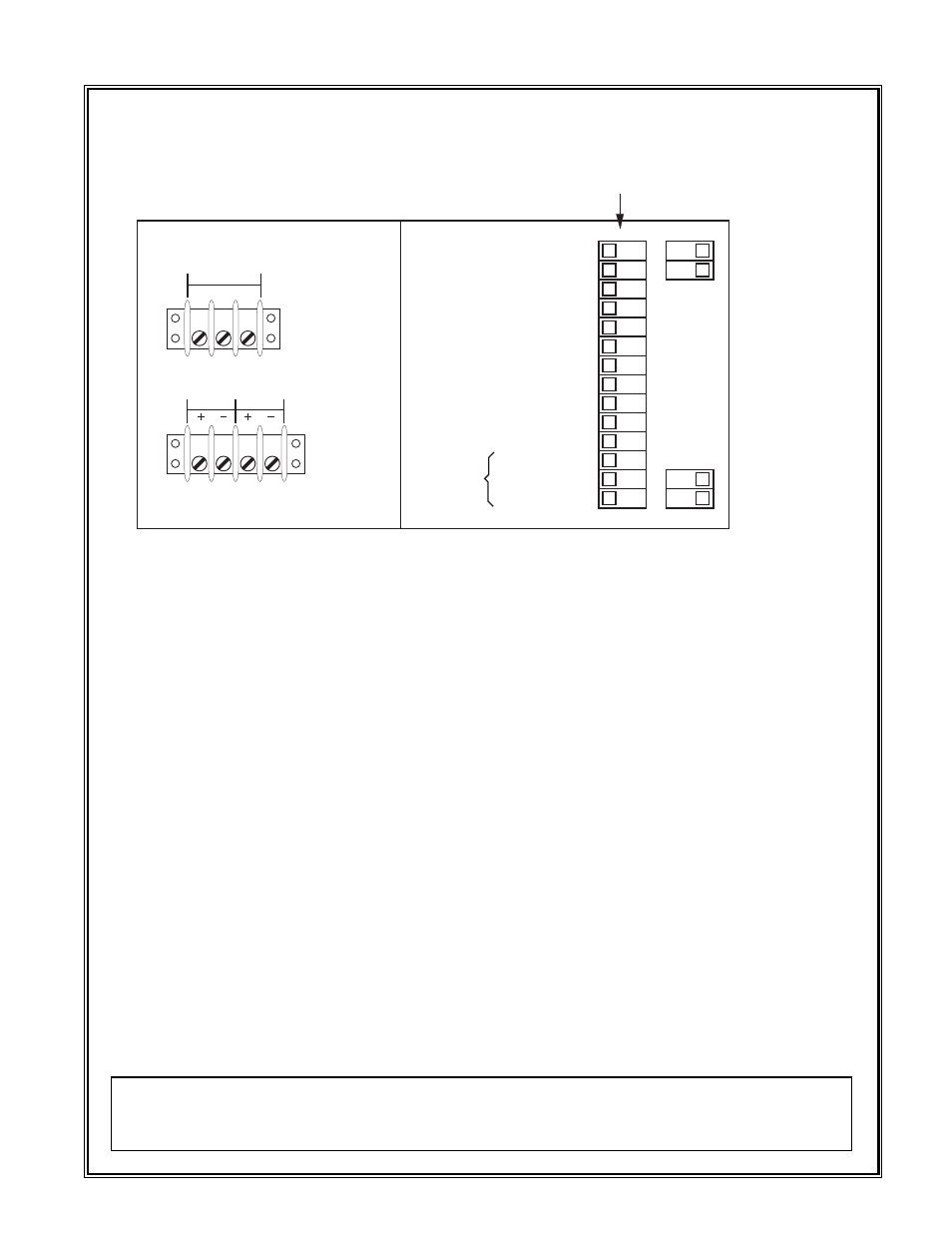

L1
L2 GND
120 VAC IN
AUX DC IN
DC OUT
LOW NORMALLY CLOSED
LOW COMMON
LOW NORMALLY OPEN
HIGH NORMALLY CLOSED
HIGH COMMON
HIGH NORMALLY OPEN
FAULT NORMALLY OPEN
FAULT COMMON
FAULT NORMALLY CLOSED
+ 4-20 MA OUTPUT
COMMON 4-20 MA OUTPUT
+ SIGNAL (MA)
+ TRANSMITTER
– TRANSMITTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TYPICAL
EACH
CHANNEL
EXTERNAL RESET
CLOSE TO RESET
DC IN COMMON
DC IN POSITIVE
SENSOR
Fig. 2
